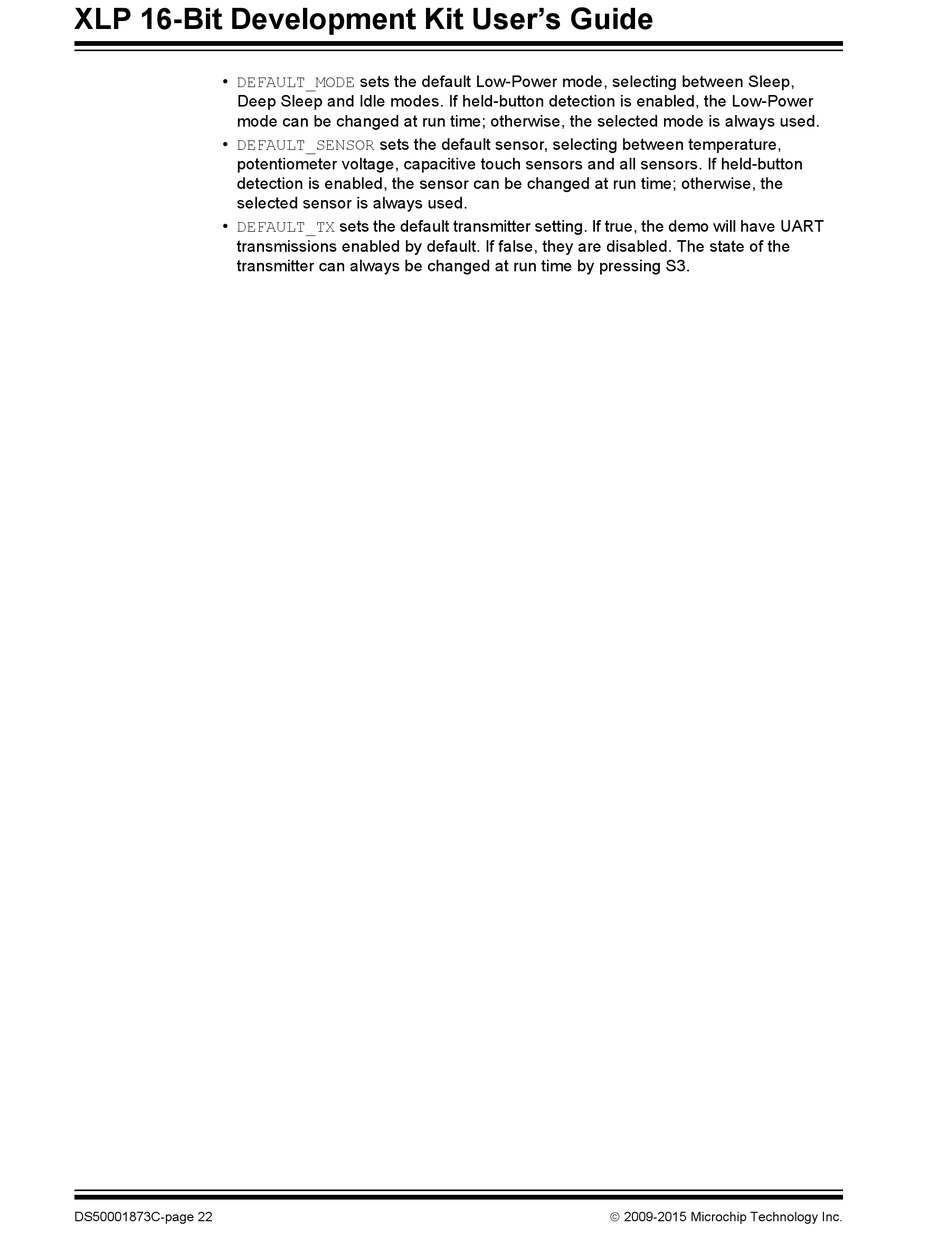

XLP 16-Bit Development Kit User's Guide
• DEFAULT_MODE sets the default Low-Power mode, selecting between Sleep,
Deep Sleep and Idle modes. If held-button detection is enabled, the Low-Power
mode can be changed at run time; otherwise, the selected mode is always used.
• DEFAULT_SENSOR sets the default sensor, selecting between temperature,
potentiometer voltage, capacitive touch sensors and all sensors. If held-button
detection is enabled, the sensor can be changed at run time; otherwise, the
selected sensor is always used.
• DEFAULT_TX sets the default transmitter setting. If true, the demo will have UART
transmissions enabled by default. If false, they are disabled. The state of the
transmitter can always be changed at run time by pressing S3.
