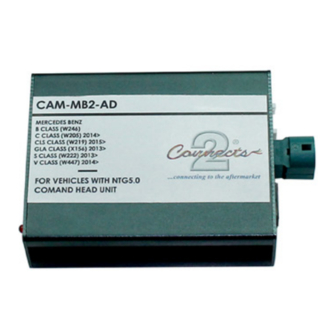

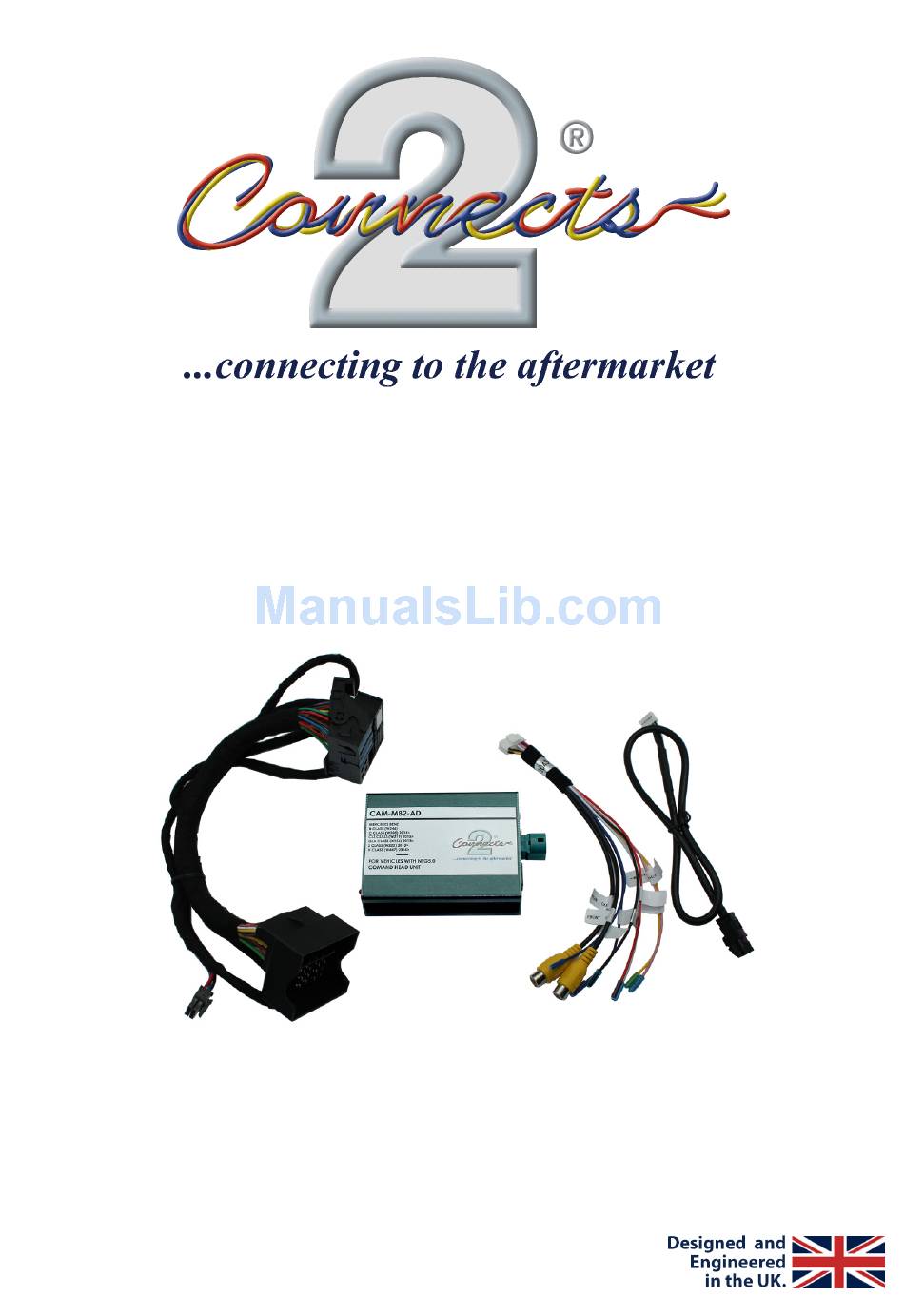

- Page 1 CAM-MB2-AD Mercedes Camera Add On Interface for NTG 5.0 head units INSTRUCTION MANUAL www.connects2.com...
- Page 2 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 3 LVDS connector on the interface. Connect the white 5 way connector from the other end of the supplied LVDS cable (Fig 1, 4) to the interface. Connect the black 8 way connector of the vehicle power T-harness (Fig 1, 2) to the interface. www.connects2.com...
- Page 4 Yellow (RCA) Front camera video in (Front Cam) 6. Connect the vehicle power harness to the female connector or the vehicle power T-harness (Fig 1, 2). Test for correct operation and re-install the OEM head unit. www.connects2.com...
