U s e r M a n u a l
CAM-MB14
PRODUCT FEATURES:
Image Sensor: 1/3" CMOS
TV Lines: 600
Resolution: 756 x 504
Minimum Illumination: 0.1 Lux
TV System: NTSC
Waterproof Rating: IP68
Viewing Angle: 160 Degrees
Video Output: 1.0V p-p 75ohm
Parking Guidelines: Yes (Removable)
Operating Voltage: 12V DC (Negative Ground)
Operating Temperature: -20 Degrees C to +70 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com

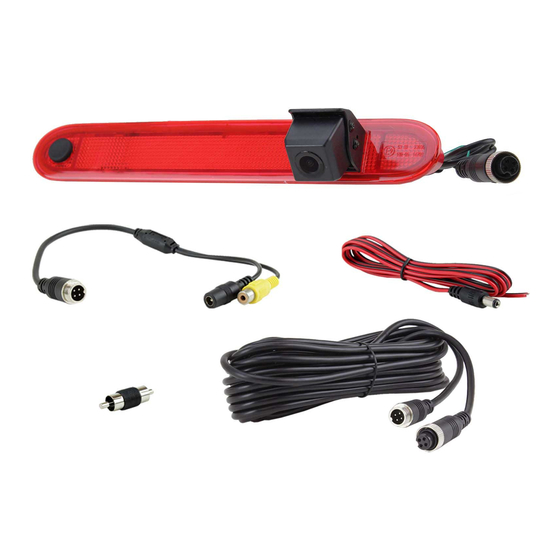

High Level Brake Light/Camera
Mercedes Benz Citan 2012 - 2021
Advertisement
Table of Contents
Related Manuals for Connects2 CAM-MB14
Summary of Contents for Connects2 CAM-MB14
- Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 2 1. Remove the third brake light from the vehicle and unplug the connection cable. 2. Refit the CAM-MB14 to the vehicle taking care not to trap any cables. 3. Connect the 4pin of the extension cable to the camera and thread through the vehicle 4.
