2. Mounting Instructions
Inside the box you will find a mounting kit.
1. Choose the right part of the wall.
2. Place the mounting stencil on the wall, marking the places for the holes.
3. Remove the stencil and make the holes in the wall.
4. Insert the rawl plugs in the holes made.
5. Screw the four metallic fasteners to the wall with the 6.3 x 50 mm screw.
6. Screw the four metallic cylinders to the product like in Figure 1.
7. Insert what you have assembled in Section 6 into the metallic fastener and fix well with the 2.9 x
9.5 mm stud bolt.

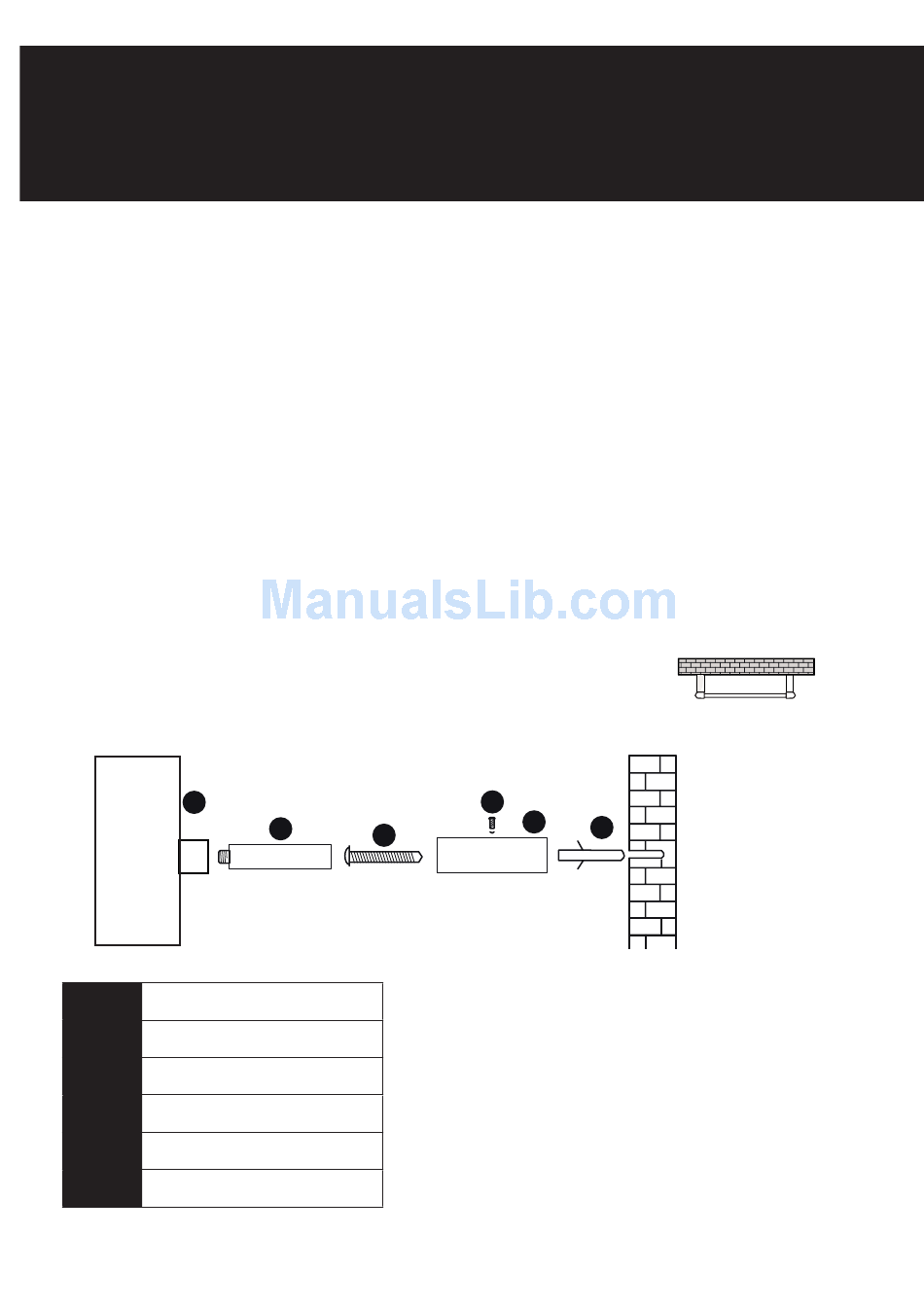

Figure 1
6
1
10 mm Rawl Plug
2
Metallic Fastener
3
Screw 2,9 x 9,5 mm
4
Screw 6,3 x 50 mm
5
Metallic Cylinder
6
Product
22
5
4
5
3
2
1
