Rointe KYROS Installation And User Manual

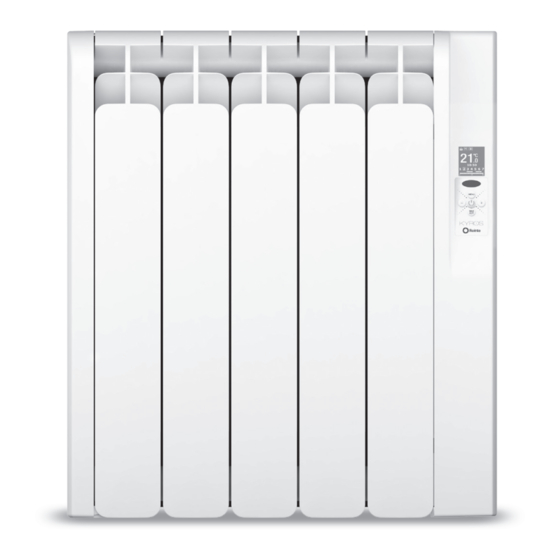

Low consumption digital radiator
Hide thumbs Also See for KYROS:
Table of Contents

Advertisement

Quick Links

Download this manual
KYROS
consumo / Radiador digital economizador de energia
INSTALLATION AND USER MANUAL
EN
Page 03
Low consumption digital radiator / Radiador digital de bajo
GUARANTEE / GARANTÍA
/ GARANTIA
YEARS / AÑOS
YEARS / AÑOS
/ ANOS
/ ANOS
ON THE BODY
ON ELECTRONICS
EN EL CUERPO
EN ELECTRÓNICA
NO CORPO
NA ELECTRÓNICA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KYROS and is the answer not in the manual?

Questions and answers

Related Manuals for Rointe KYROS

Summary of Contents for Rointe KYROS

  • Page 1 KYROS Low consumption digital radiator / Radiador digital de bajo consumo / Radiador digital economizador de energia INSTALLATION AND USER MANUAL Page 03 GUARANTEE / GARANTÍA / GARANTIA YEARS / AÑOS YEARS / AÑOS / ANOS / ANOS ON THE BODY...
  • Page 2 KYROS DIGITAL RADIATOR SYMBOLS DANGER. This symbol indicates a medium-high risk hazard which can result in serious injury or even death. DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not leave or place magazines, spray cans, volatile substances, or similar objects within 250 mm of the radiator.

  • Page 3: Table Of Contents

    INDEX 1. General Warnings ......................5 2. Technical information ....................8 3. Installation ........................9 4. Screen & Keypad ......................12 5. Functionality and programming ................. 13 5.1. ON / OFF (stand-by) ....................13 5.2. Adjust the day and time ..................13 5.3.

  • Page 4: General Warnings

    KYROS DIGITAL RADIATOR KYROS DIGITAL RADIATOR KYROS DIGITAL RADIATOR 1. GENERAL WARNINGS 1. GENERAL WARNINGS 1. GENERAL WARNINGS WARNINGS WARNINGS WARNINGS 1. GENERAL W 1. GENERAL This product may be used by children over 8 years of age This product may be used by children over 8 years of age and by...

  • Page 5: Technical Information

    Children should not nderstand the hazards involved. Children should not authorised by ROINTE, who must also be notified if a leak is ust, clean, play with, or perform maintenance on this ust, clean, play with, or perform maintenance on this observed.
  • Page 6 To disconnect the product from the power source, remove the mains plug from the socket. Do not pull on the cable. ROINTE cannot be held responsible for incorrect sizing of technical study. the product has not been used for many days, the appliance should be cleaned (follow the steps in the “maintenance”...

  • Page 8: Installation

    We recommend using a trusted Rointe supplier for installation of the product. Find the nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk. nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.
  • Page 9 WARNING: The weight of some of the products may be heavy. The installation may require two people. IMPORTANT: Please follow these instructions carefully. 1. Remove the packaging and check that the installation contains brackets, screws, rawl plugs and a cardboard template.
  • Page 10 KYROS DIGITAL RADIATOR 7. Connect your product to the power supply and switch it on. 8. See section 5 for operating instructions. IMPORTANT: Measurement template per model. KR*0330RAD3 KR*0550RAD3 KR*0770RAD3 KR*1430RAD3 / KR*0990RAD3 KR*1210RAD3 KR*1600RAD3...

  • Page 11: Screen & Keypad

    4. SCREEN & KEYPAD Decrease temperature Increase temperature Move left Move right Access/Return to menu Move up COMFORT / ECO / ANTI-FROST mode indicator MANUAL / Fuzzy Logic Energy AUTOMATIC / Control technology PILOT WIRE* indicator function indicator Heating element active indicator Control panel Energy consumption...

  • Page 12: Functionality And Programming

    To switch the product off, please press the button again once. The product will go into stand-by mode with the word ‘STAND-BY’ displayed on the display panel. After 3 seconds the Rointe logo will appear. 5.2. ADJUST THE DAY & TIME Press the menu button to access the main menu.

  • Page 13: Adjust The Temperature

    5.4. LOCK THE CONTROL PANEL You can lock the keypad from the product or from a Rointe remote control (sold separately). To lock the keypad manually, please hold and press the button AND the button TOGETHER for 3 seconds.

  • Page 14: Main Menu

    KYROS DIGITAL RADIATOR 5.5. MAIN MENU To access the main menu of your product, press the button. o move through the various submenus that appear, use the buttons. selected submenu, press the button. The icons that allow you to enter the different submenus are listed below:...

  • Page 15: Main Menu: Energy Sub-Menu

    • Clear the memory This allows you to clear any information saved in your product. To clear the memory ensure the icon is highlighted in the ‘Settings’ sub- menu and press the The display panel will show when completed and the language will change to default.
  • Page 16 KYROS DIGITAL RADIATOR • OPEN WINDOWS function This option allows you to activate or deactivate the WINDOWS OPEN function. Using the and buttons , select ON to activate and OFF to deactivate. Once the desired option has been selected, press This function is activated when there is a drop of at least 4°C in the room...

  • Page 17: Main Menu: Equilibrium / Balance Sub-Menu

    • Information This function will display the software version, the date of this release and the rated power of the product. To access this information, ensure the icon is highlighted in the ‘Energy’ sub-menu and press the 11 11 2021 information will then show in the display panel 5.8.

  • Page 18: Manual/Automatic Functions

    KYROS DIGITAL RADIATOR The ‘Program’ sub-menu provides access to functions related to programming the product. To access, select the con displayed in the Main Menu screen and press to access. Use the buttons to move across the different options on the sub-menu to choose your program and press to access.
  • Page 19 The display panel will show 2 options: • PRE-PROGRAMS: one of the four pre-set schedules. • START PROGRAMMING: to set a personalised programming and change the values of the COMFORT and ECO modes. use the buttons and press the Start programming for AUTOMATIC function To program the AUTOMATIC mode, see points above and ensure that START PROGRAMMING is highlighted.
  • Page 20 KYROS DIGITAL RADIATOR STEP 4 - Select the Hours Once step 3 has been completed, 0h appears on the display panel. 0h is equal to midnight. Use the buttons to select the hour you wish to change. Use button to change the mode (COMFORT, ECO or nothing) for the hour you wish to modify.
  • Page 21 • Pre-installed programmes schedule: PROGRAM TIME / DAY Mon - Fri Sat - Sun Mon - Fri Sat - Sun Mon - Sun Mon - Fri Sat - Sun 00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00...

  • Page 22: User Mode

    KYROS DIGITAL RADIATOR 5.9.3. USER MODE To enter the USER function, ensure the icon is highlighted in the ‘Program’ sub-menu and press the button to access. A 4-digit PIN code is required in order to access the menu. The default PIN is 0000.
  • Page 23 • Change the PIN code To change the PIN code of your product, ensure the icon is highlighted in the ‘Program’ sub-menu and press the button to access. Use the buttons to move left, right, up or down to select the new numbers, pressing Then move to OK on the display panel and press the screen will show PIN CHANGED.

  • Page 24: Energy Saving Functionalities

    5.10. ENERGY SAVING FUNCTIONALITIES • Tecnología FUZZY LOGIC ENERGY CONTROL Fuzzy Logic Energy Control is a technology developed by Rointe to improve the energy management required to maintain a stable temperature, analyzing its variations with an accuracy of ±0.25 ºC and sending micro electrons to the heating element that transfer...

  • Page 25: European Regulation (Weee) 2012/19/Eu

    Any incident detected in your Rointe product can be dealt with by the seller of the product or in a more agile way through the manufacturer itself.
  • Page 26 Any accident deemed to be beyond ROINTE’s control, such as (but not limited to): phenomena, and all those of a similar nature. v) Failures resulting from incorrect installation. In case of doubt, please contact ROINTE.
  • Page 27 ROINTE and must be returned as such. 2.4. The product must be installed in such a way as to allow access by ROINTE technicians or authorised persons in the event that they need to access the product for repair or maintenance. The user/customer is responsible for the organisational means necessary to allow access to the products by ROINTE for repair or replacement.

  • Page 28: How To Register Your Product Guarantee

    KYROS DIGITAL RADIATOR 9. HOW TO REGISTER YOUR PRODUCT GUARANTEE IMPORTANT: It is important that you register your ROINTE product as part of our guarantee service, in case you wish to make a claim. You can register your ROINTE product in the following ways: Go to https://rointe.com/uk/register-your-guarantee/...
  • Page 30 KYROS RADIADOR DIGITAL...
  • Page 31 DECLARATION OF CONFORMITY / DECLARACIÓN DE CONFORMIDAD / DECLARAÇÃO DE CONFORMIDADE The company / la compañía / a empresa, ROINTE, Pl. Vicente Antolinos - C/E, parcela 43, 30140, Santomera (Murcia) España Declares under his responsibility / declara / declara: Product / producto / produto: Rointe KYROS...
  • Page 32 Peterborough PE7 8JA T. 0203 321 5928 Copyright © Rointe Heating 2022. All rights reserved. As part of our continuous improvement policy, we reserve the right to alter or already been ordered, provided that such alterations can be made without subsequent changes or other printed materials.
