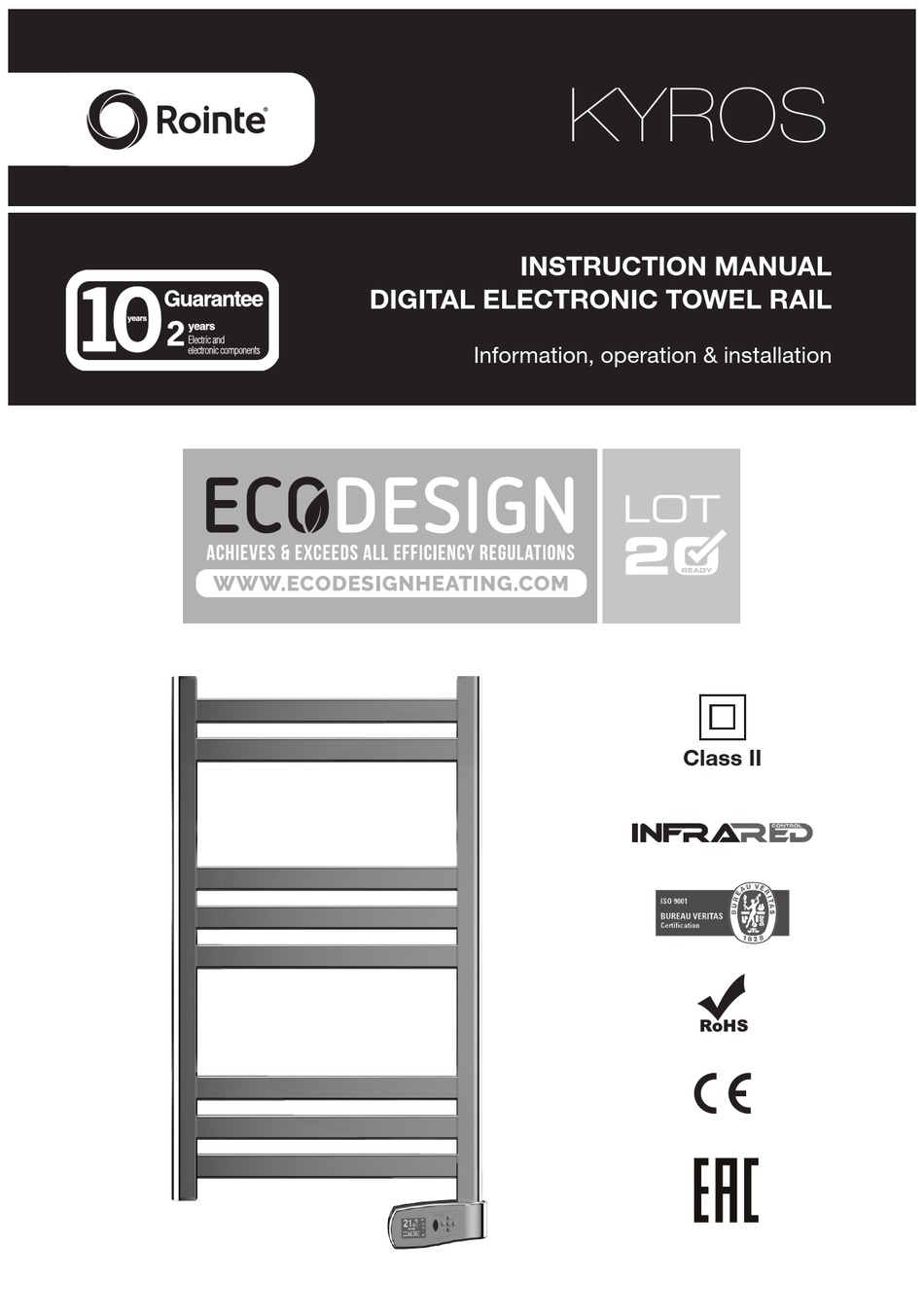

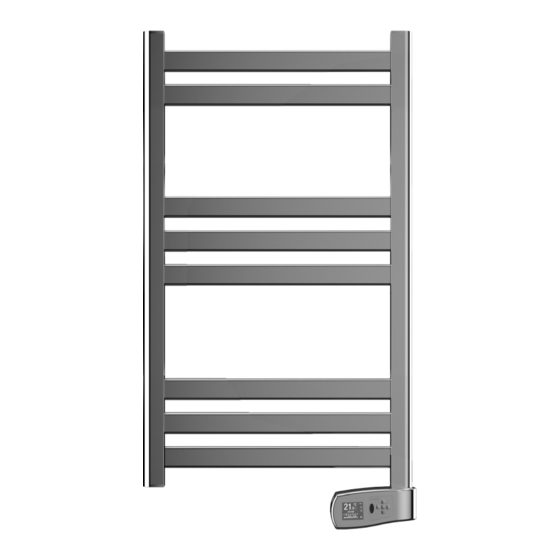

- Page 1 KYROS INSTRUCTION MANUAL DIGITAL ELECTRONIC TOWEL RAIL Information, operation & installation Class II...
-
Page 2: Table Of Contents
4. Maintenance and cleaning ....................... 21 5. Installation and safety precautions ....................21 5.1. Installation precautions ......................21 5.2. Safety precautions ........................21 6. Rointe Product Guarantee ........................ 21 7. European Directive..........................24 8. Dimensions & Technical Characteristics ..................24 9. Certificate of Guarantee .........................27... -
Page 3: Introduction
1. Introduction Designed with the user in mind, this product contains an exclusive electronic temperature pro- grammer and is manufactured with high quality components. This product has passed the most demanding quality controls to meet rigorous safety standards and efficiency requirements. This product is designed for fixed installation only. -
Page 4: Product Information And Operation
2. Product information and operation 2.1. Control panel 2.1.1. Keypad ICON DESCRIPTION On / Off button Accept / Confirm button Decrease temperature button Move left button Increase temperature button Move right button Menu button Move upwards button MANUAL / AUTOMATIC button Move downwards button 2.1.2. -
Page 5: Switching On And Off (Stand-By)
After 5 seconds the temperature, time and days of the week will show on the display panel. To switch the product off, please press the button again once. The product will go into stand-by mode with the word ‘STAND-BY’ displayed on the display panel. After 5 seconds the Rointe logo will appear. -
Page 6: Adjust The Day And Time
2.3. Adjust the day and time To set the day and time, please press the button on the keypad to access the Main Menu. Select the `Settings´ menu using the buttons on the keypad. To move left press the button and to move right press the button. -
Page 7: Lock The Control Panel
2.5. Lock the control panel You can lock the keypad from the product or from a remote control* (optional). To lock the keypad manually, please hold and press the button AND the button TOGETHER for 3 seconds. The symbol will appear on the display panel and the keys will not respond. -
Page 8: Settings Sub-Menu
2.6.1. Main Menu: Settings sub-menu The `Settings´ sub-menu configures the technical parameters of your product. To access, select the icon displayed in the Main Menu screen and press to confirm. Use the buttons to move across the different options on the sub-menu to choose your parameter and press to access. -
Page 9: Energy Sub-Menu
• Adjust the day and time This option sets the hour, minutes and day of the week in your product. Please refer to section 2.3. 2.6.2. Main Menu: Energy sub-menu The `Energy´ sub-menu provides access to functions related to energy management of the product. -
Page 10: Equilibrium / Balance Sub-Menu
• 2 Hour BOOST function The two hour BOOST mode will override any other set mode and will boost your product to maximum power. You can choose to boost to maximum power for 15 minutes, 30 minutes, 1 hour or 2 hours. To set the BOOST mode, ensure the icon is highlighted in the `Energy´... -
Page 11: Program Sub-Menu
2.6.4. Main Menu: Program sub-menu This section explains the operational aspects of your product in its various functions and modes. What are the functions of MANUAL, AUTOMATIC and PILOT WIRE functions? This function allows you to change the product between the COMFORT, ECO MANUAL and ANTI-FROST modes and to change the temperature (see section 2.4.). - Page 12 • MANUAL / AUTOMATIC functions To change or choose the MANUAL or AUTOMATIC function, ensure the icon is highlighted in the `Program´ sub-menu and press the button to confirm. You can change from AUTOMATIC to MANUAL and vice versa by pressing the button again.
- Page 13 STEP 2 - Select ECO mode temperature ECO mode will be programmed next. Select the ECO mode temperature between 7.5ºC and 18.5ºC. The icon and the temperature will flash. Press button to confirm. STEP 3 - Select the Days The days of the week will start flashing on the display panel and show as DAY 1, DAY 2, DAY 3 etc.
- Page 14 • PRE-PROGRAMS To activate a PRE-PROGRAM for your product ensure that PRE-PROGRAM is highlighted in the `Program´ sub-menu. Press the button to confirm and the display panel will show 4 programs for you to choose from: A1, A2, A3 and Using the buttons, choose the program you wish to activate and once highlighted, press the...
- Page 15 • Pre-installed programmes schedule: PROGRAM TIME / DAY Mon - Fri Sat - Sun Mon - Fri Sat - Sun Mon - Sun Mon - Fri Sat - Sun 00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00...
- Page 16 • USER mode To enter the USER function, ensure the icon is highlighted in the `Program´ sub-menu and press the button to access. A 4-digit PIN code is required in order to access the menu. The default PIN is 0000. To enter the PIN use the buttons to move left, right, up or down to select the correct numbers, pressing...
- Page 17 • Change the PIN code To change the PIN code of your product, ensure the icon is highlighted in the `Program´ sub-menu and press the button to access. Use the buttons to move left, right, up or down to select the new numbers, pressing after each number is highlighted to confirm.
-
Page 18: Open Windows Function
• PILOT WIRE function (*Not available in UK. Only on demand.*) The PILOT WIRE function allows your heating only to be controlled via a pilot wire programmer. To access the PILOT WIRE mode, ensure the icon is highlighted in the `Program´... -
Page 19: Installation Instructions
3. Installation instructions 3.1. Mounting instructions Inside the box/packaging you will find a mounting kit: Choose the right part of the wall. Place the mounting stencil on the wall, marking the places for the holes. Remove the stencil and make the holes in the wall. Insert the rawl plugs in the holes made. -
Page 20: Specific Regulations For Bathrooms
IMPORTANT: • This product must never be installed with its control panel at the top. • This product must not be installed horizontally. • During installation use wedges so that the control panel will not be in contact with the floor •... -
Page 21: Maintenance And Cleaning
ROINTE. Any incident that you might detect in your ROINTE product can be sorted by the product seller or quickly by the manufacturer. Please contact ROINTE by telephoning 0203 321 5929 for Technical Support. - Page 22 In addition, please attach a copy of the product invoice. 6.1. ROINTE guarantees that there are no material defects of design or manufacture at the time of original acquisition and guarantees the steel main body for a period of 120 months and any electronic and electrical components for 24 months, provided that they have not been modified in any way.
- Page 23 6.3. The Technical Service department of ROINTE will advise you if you need to purchase any parts not covered under the guarantee or out of guarantee.
-
Page 24: European Directive
The symbol of the container crossed out over a horizontal line is marked on all of ROINTE products to remind the consumer of the obligation to separate them on disposal. The consumer should contact the local authority or original point of sale to learn more about the correct disposal of this product. - Page 25 MODEL KTI030SE*3 KTI050SE*3 KTI075SE*3 KTI100SE*3 DIMENSIONS Width (mm) Height without control panel 1,200 1,600 1,800 (mm) Height with control panel (mm) 1,300 1,700 1,900 Depth (mm) Installed Depth (mm) WEIGHTS & FINISHES Weight (kg) Finish White RAL 9016 / Chrome ELECTRICAL CHARACTERISTICS White RAL 1,000...
- Page 26 NOTES:...
- Page 29 NOTES:...
- Page 30 NOTES:...
- Page 31 Thank you for choosing Rointe. We hope you enjoy your product. If you require further assistance or information, please contact our Technical Service Department by telephoning 0203 321 5929 or email support@rointe.co.uk.
- Page 32 ROINTE UK Catalyst House, 720 Centennial Court, Centennial Park Elstree, Herts, WD6 3SY 0203 321 5928 0208 953 5861 Technical Support 0203 321 5929 E: support@rointe.co.uk www.rointe.co.uk MKSUK17V2...
