KYROS
short · conservatory
INSTRUCTION MANUAL
DIGITAL ELECTRONIC RADIATOR
Information, operation & installation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KYROS SHORT KRI1100RADC3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rointe KYROS SHORT KRI1100RADC3

Summary of Contents for Rointe KYROS SHORT KRI1100RADC3

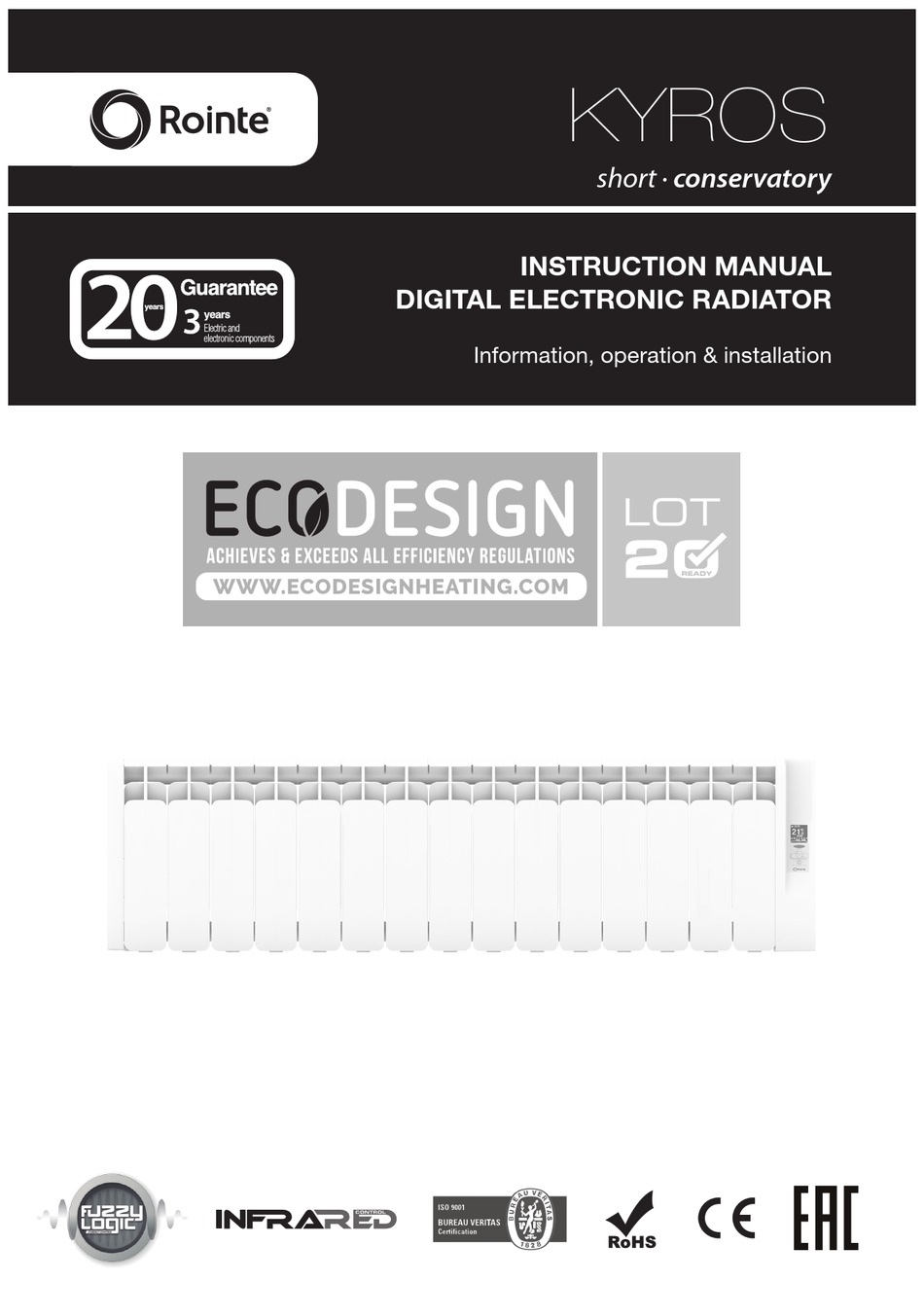

  • Page 1 KYROS short · conservatory INSTRUCTION MANUAL DIGITAL ELECTRONIC RADIATOR Information, operation & installation...

  • Page 2: Table Of Contents

    4. Maintenance and cleaning ....................... 20 5. Installation and safety precautions ....................20 5.1. Installation precautions ......................20 5.2. Safety precautions ........................20 6. Rointe Product Guarantee ........................ 21 7. European Directive..........................23 8. Dimensions & Technical Characteristics ..................24 9. Certificate of Guarantee .........................25...

  • Page 3: Introduction

    1. Introduction Designed with the user in mind, this product contains an exclusive electronic temperature pro- grammer and is manufactured with high quality components. This product has passed the most demanding quality controls to meet rigorous safety standards and efficiency requirements. This product is designed for fixed installation only.
  • Page 4 short conservatory 2.1.2. Display panel DESCRIPTION Programming Days of the week Time of day Temperature selected Control panel locked / unlocked MANUAL / AUTOMATIC / PILOT WIRE function indicator COMFORT / ECO / ANTI-FROST mode indicator Fuzzy Logic Energy Control technology indicator Heating element active indicator Energy consumption indicator OPEN WINDOWS function indicator...

  • Page 5: Switching On And Off (Stand-By)

    The product will go into stand-by mode with the word ‘STAND-BY’ displayed on the display panel. After 5 seconds the Rointe logo will appear. 2.3. Adjust the day and time To set the day and time, please press the button on the keypad to access the Main Menu.

  • Page 6: Adjust The Temperature

    short conservatory 2.4. Adjust the temperature To change the temperature, please press the or the button. To decrease the temperature press the button and to increase the temperature press the button. When the room temperature is lower than the set temperature on the display panel, the product will come on with the symbol appearing in the top right of the display panel.

  • Page 7: Main Menu

    2.6. Main Menu The Main Menu is accessed by pressing the menu button. You can navigate through the different options available on the menu by pressing the buttons to move left and right respectively and to scroll through all 4 options. The selected sub-menu will be highlighted with a frame, as shown in the image to the right on the `Settings´...

  • Page 8: Energy Sub-Menu

    short conservatory • Clear the memory This allows you to clear any information saved in your product. To clear the memory ensure the icon is highlighted in the `Settings´ sub- menu and press the button to confirm. The display panel will show when completed and the language will change to default.
  • Page 9 • OPEN WINDOWS function To set the OPEN WINDOWS* function, ensure the icon is highlighted in the `Energy´ sub-menu and press the button to access. Use the buttons to move up or down respectively until your preference is highlighted and confirm by pressing the button.

  • Page 10: Equilibrium / Balance Sub-Menu

    short conservatory • Information This function will display the software version, the date of this release and the rated power of the product. To access this information, ensure the icon is highlighted in the `Energy´ sub-menu and press the button to confirm. The information will then show in the display panel.
  • Page 11 The `Program´ sub-menu provides access to functions related to programming the product. To access, select the icon displayed in the Main Menu screen and press to access. Use the buttons to move across the different options on the sub- menu to choose your program and press to access.
  • Page 12 short conservatory The display panel will show 2 options: • PRE-PROGRAMS • START PROGRAMMING A flashing line will appear around the option that is selected. To change the option use the buttons and press the button to confirm. • Start programming for AUTOMATIC function To program the AUTOMATIC mode, see points above and ensure that START PROGRAMMING is highlighted.
  • Page 13 STEP 4 - Select the Hours Once step 3 has been completed, 0h appears on the display panel. 0h is equal to midnight. Use the buttons to select the hour you wish to change. Use the button to change the mode (COMFORT, ECO or nothing) for the hour you wish to modify.
  • Page 14 short conservatory • Pre-installed programmes schedule: PROGRAM TIME / DAY Mon - Fri Sat - Sun Mon - Fri Sat - Sun Mon - Sun Mon - Fri Sat - Sun 00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00...
  • Page 15 • USER mode To enter the USER function, ensure the icon is highlighted in the `Program´ sub-menu and press the button to access. A 4-digit PIN code is required in order to access the menu. The default PIN is 0000. To enter the PIN use the buttons to move left, right, up or down to select the correct numbers, pressing...
  • Page 16 short conservatory • Change the PIN code To change the PIN code of your product, ensure the icon is highlighted in the `Program´ sub-menu and press the button to access. Use the buttons to move left, right, up or down to select the new numbers, pressing after each number is highlighted to confirm.

  • Page 17: Open Windows Function

    • PILOT WIRE function (*Not available in UK. Only on demand.*) The PILOT WIRE function allows your heating only to be controlled via a pilot wire programmer. To access the PILOT WIRE mode, ensure the icon is highlighted in the `Program´...

  • Page 18: Fuzzy Logic Energy Control Technology

    2.8. Fuzzy Logic Energy Control technology Fuzzy Logic Energy Control is a technology developed by Rointe to improve the energy management required to maintain a stable temperature, analyzing its variations with an accuracy of ±0.25 ºC and sending micro electrons to the heating element that transfer the heat to the atmosphere in the most efficient way.

  • Page 19: Installing And Fixing The Supports

    3.2. Installation and fixing the supports Inside the product packaging you will find a fixing kit so you can mount the product to the wall. Please follow these instructions carefully. Choose the right part of the wall Once you have marked the holes, Check the positioning is correct (see section 3.1.

  • Page 20: Maintenance And Cleaning

    The product is designed for household or residential use only. You are advised to have the product installed by an authorized professional installer. Please contact Rointe by telephoning 0203 321 5928 to find your nearest installer. Make sure the product is properly connected to 230V and is earthed.

  • Page 21: Rointe Product Guarantee

    ROINTE. Any incident that you might detect in your ROINTE product can be sorted by the product seller or quickly by the manufacturer. Please contact ROINTE by telephoning 0203 321 5929 for Technical Support.
  • Page 22 ROINTE as well as incorrect installation or use of the product that may not comply with the current technical standards of safety.

  • Page 23: European Directive

    6.9. In the absence of a national legal legislation applicable, this guarantee shall prevail and may be construed as the buyer’s only protection. ROINTE, its offices, distributors and installers may not be held responsible for any accidental damage that emerges due to infringement of any rules implicitly related to this product.

  • Page 24: Dimensions & Technical Characteristics

    short conservatory 8. Dimensions & Technical Characteristics MODEL KRI1100RADC3 KRI1200RADC3 KRI1500RADC3 No. Elements DIMENSIONS Width (mm) 1,010 1,180 1,330 Height (mm) Depth (mm) Installed Depth (mm) WEIGHTS & FINISHES Weight (kg) 24.1 25.9 32.1 Finish White RAL 9010 ELECTRICAL CHARACTERISTICS Nominal Power (W) 1,100 1,300...
  • Page 27 NOTES:...
  • Page 28 short conservatory NOTES:...
  • Page 29 NOTES:...
  • Page 30 short conservatory NOTES:...
  • Page 31 Thank you for choosing Rointe. We hope you enjoy your product. If you require further assistance or information, please contact our Technical Service Department by telephoning 0203 321 5929 or email support@rointe.co.uk.
  • Page 32 ROINTE UK Catalyst House, 720 Centennial Court, Centennial Park Elstree, Herts, WD6 3SY 0203 321 5928 0208 953 5861 Technical Support 0203 321 5929 E: support@rointe.co.uk www.rointe.co.uk MKRCUK17V2...
