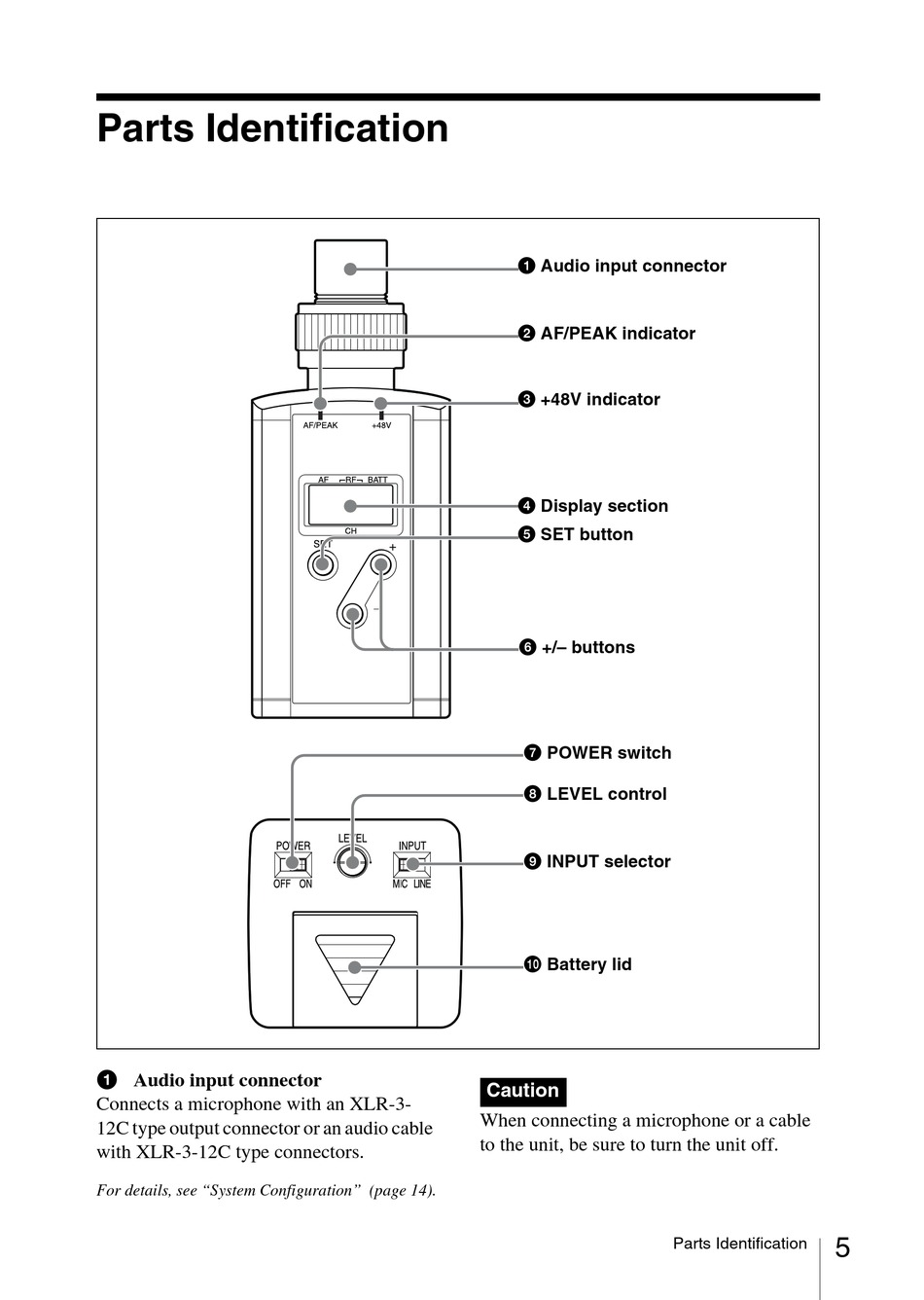

Parts Identification
a Audio input connector
Connects a microphone with an XLR-3-
12C type output connector or an audio cable
with XLR-3-12C type connectors.
For details, see "System Configuration" (page 14).
1 Audio input connector
2 AF/PEAK indicator
3 +48V indicator
4 Display section
5 SET button
6 +/– buttons
7 POWER switch
8 LEVEL control
9 INPUT selector
0 Battery lid
Caution
When connecting a microphone or a cable
to the unit, be sure to turn the unit off.
Parts Identification
5
