b AF/PEAK (audio input/peak level)
indicator
Lights up green or red to indicate the
strength of the audio input signal level.
c +48V indicator
Lights up when the INPUT selector is set to
MIC position and the +48 V power supply
is enabled.
d Display section
Channel indication
E shows that of
the U66 model.
A AF indication
Appears whenever the input audio signal is
stronger than the reference level.
B RF (radio frequency) indication
Appears during signal transmission.
C RF power indication
Shows the RF output power setting.
For details, see "Setting the RF output power level"
(page 10).
D BATT (battery) indication
Shows the battery condition.
For details, see "Battery condition indication"
(page 7).
E CH (channel) indication
Shows transmitting channel. Each time you
press the SET button in transmitting mode,
the indication changes as follows.

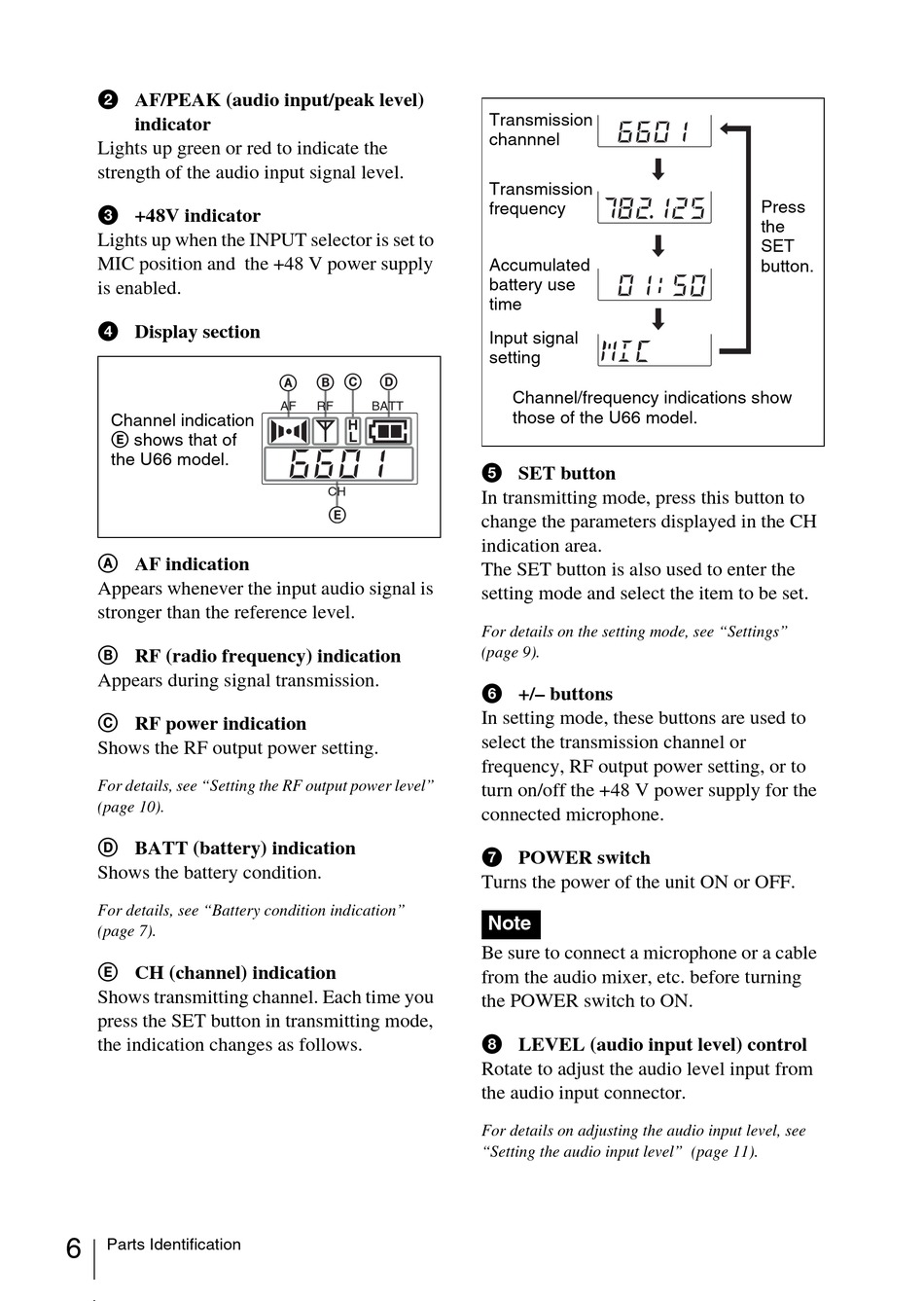

6 Parts Identification
C D
A B
AF RF BATT
H
L
CH
E
Transmission
channnel
Transmission
frequency
Accumulated
battery use
time
Input signal
setting
Channel/frequency indications show
those of the U66 model.
e SET button
In transmitting mode, press this button to
change the parameters displayed in the CH
indication area.
The SET button is also used to enter the
setting mode and select the item to be set.
For details on the setting mode, see "Settings"
(page 9).
f +/– buttons
In setting mode, these buttons are used to
select the transmission channel or
frequency, RF output power setting, or to
turn on/off the +48 V power supply for the
connected microphone.
g POWER switch
Turns the power of the unit ON or OFF.
Note
Be sure to connect a microphone or a cable
from the audio mixer, etc. before turning
the POWER switch to ON.
h LEVEL (audio input level) control
Rotate to adjust the audio level input from
the audio input connector.
For details on adjusting the audio input level, see
"Setting the audio input level" (page 11).
Press
the
SET
button.
