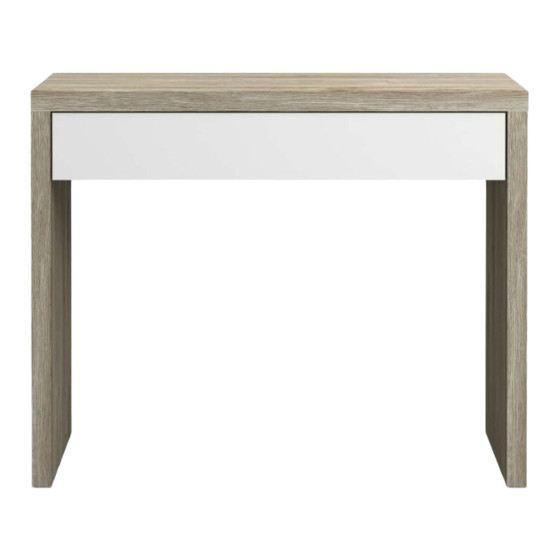

Jesse Console Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowel
bolt
locking
nut x 18
x18
F
G
slide
slide
rail x 1
rail x 1
Hardware Supplied
Phillips & Flathead screwdriver required
mocka.co.nz | mocka.com.au
C
D
small
screw
screw x 10
x9
H
I
slide
plastic
slide
glide x4
rail x 1
rail x 1
*We recommend using a Flathead screwdriver to
tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut
holes before inserting the nut to ensure it locks 100%.
V
E
safety
screw
x1
strap x1
x6
X
J
wall
wall
anchor
screw
x1
Z
washer
x2
Wall Mount
W
WARNING:
Any furniture that is not anchored to a
wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but
Y
please note that different wall materials may require
different fixing devices from those supplied.
x1
1
