Summary of Contents for TOORX BRX30

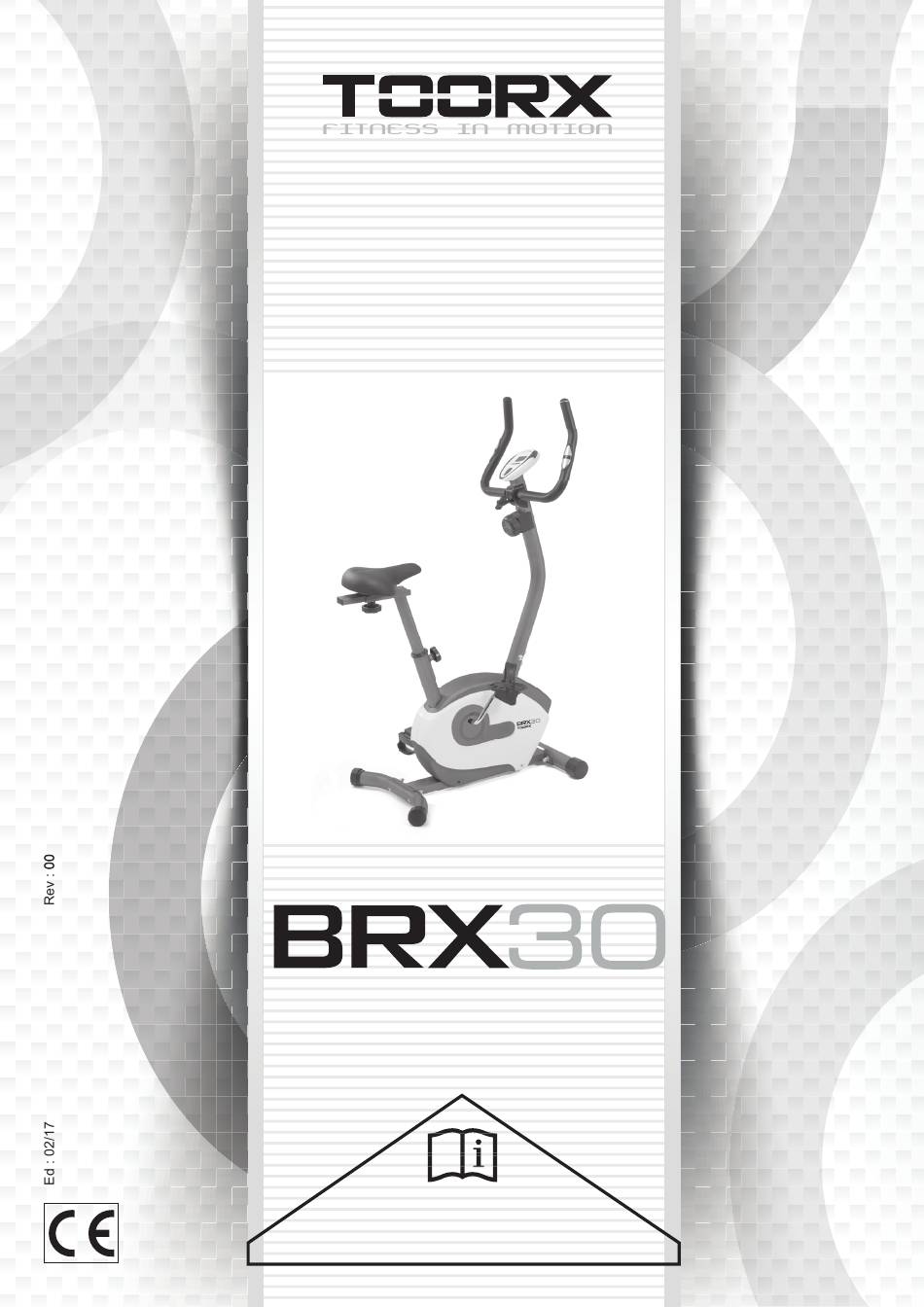

- Page 1 INSTRUCTION...
- Page 3 ASSEMBLY INSTRUCTIONS Step 1 Assembly the rear and front stabilizer (F&E) with 4 bolts (I-6), 4 nuts (I-8) and 4 washers (I-7). Step 2 Assemble the left hand pedal (H-L) and the right hand pedal (H-R) to the hand crank. Step 3 Connect the saddle (G-3) and the slider (G- 5) with three bolts and washers.
- Page 4 ASSEMBLY INSTRUCTIONS Step 4 Loosen the four screws (D-4) and four flat washer (D-3) on the support tube of handle bar post. Insert the handle bar post onto the support tube, connect the tension control cable upper & lower (C-2) & (D-2), connect the sensor cable upper &...
- Page 5 ASSEMBLY INSTRUCTIONS Step 6 Connect the sensor cable (C-1) between the computer (A) and the handle bar post, connect the hand pulse cable between the handle bar and computer. Fix the computer with two screws (A-1).
-
Page 6: Parts List
PARTS LIST DESCRIPTION Q'TY Computer Screw 2PCS Handlebar set 1SET Handlebar foam 2PCS Handle bar end cap 2PCS Hand grip 2PCS Handlebar post 1SET Sensor cable(Upper) Tension controller(Upper) 1PCS Main frame Sensor cable(Lower) Tension controller(Lower) Semicircular washer 4PCS Hex. Screw 4PCS Seat post knob Triangle screw... - Page 7 Slider Fixed screw for slider Flat washer 3PCS Screw 3PCS H-R/L Pedal 2PCS T knob Plastic cover Bushing Spring washer Flat washer Carriage screw 4PCS Wave washer 4PCS 4PCS Plastic belt pully Right thread Crank Idler clamping 1SET Idler wheel Sleeve Idler spring Nylon nut...
-
Page 8: Complete Bike Assembly
COMPLETE BIKE ASSEMBLY... - Page 9 EXERCISE COMPUTER Monitor Display KEY FUNCTION: MODE: This key lets you to select and lock on to a particular function you want. FUNCTIONS SCAN Automatically scan through each mode in sequence every 6 seconds. The display loop is SCAN-TIME-DISTANCE-CALORIE-SCAN on the main screen. TIME Accumulates total working time from 00:00 up to 99:59.
- Page 10 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
