Product Information

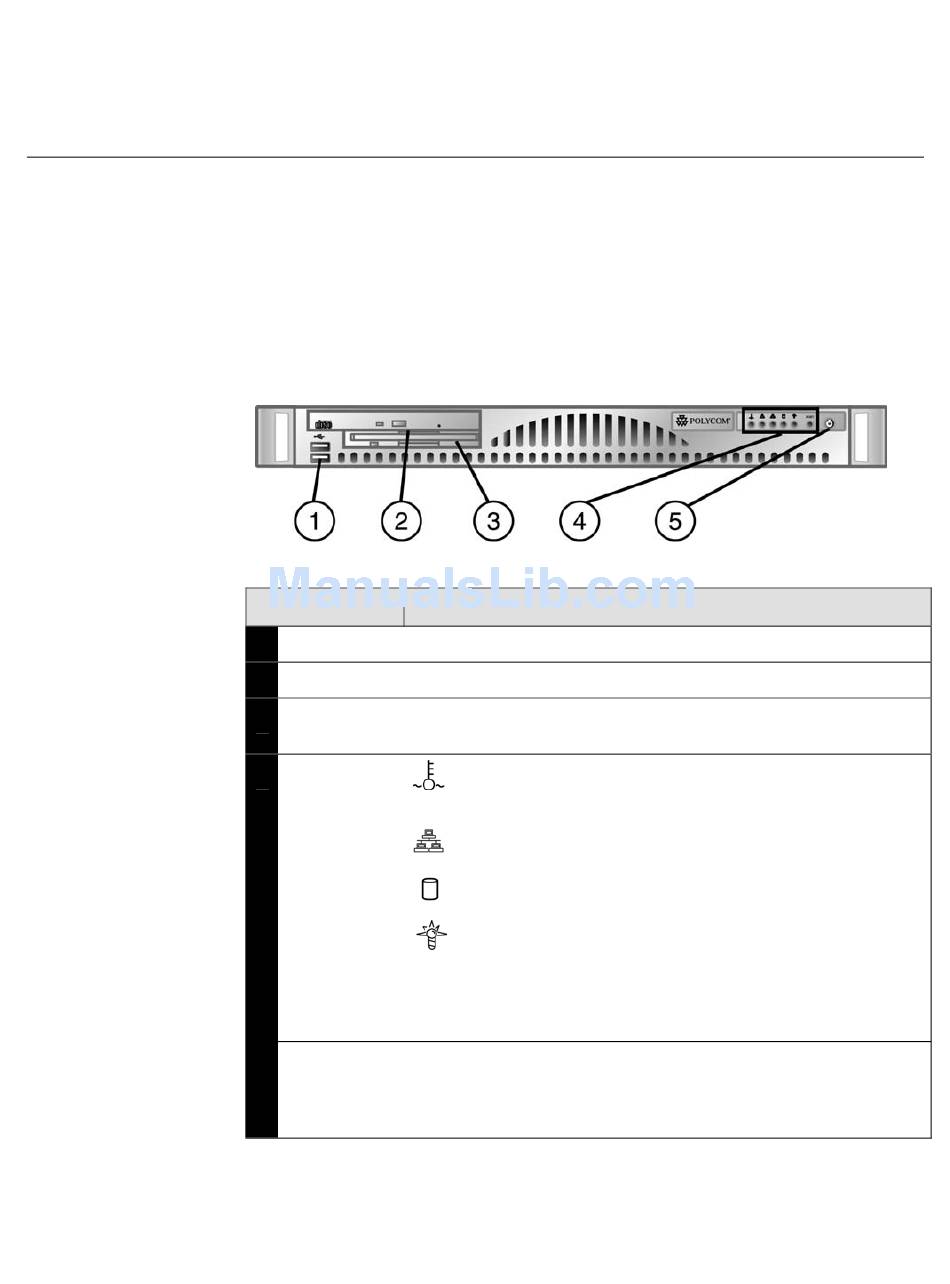

Front Panel

© Polycom, Inc.
Several LEDs on the control panel as well as one on the motherboard help
keep you constantly informed of the overall status of the system as well as the
activity and health of specific components. There are also two buttons on the
chassis control panel and an on/off switch on the power supply.
The table below explains the meanings of all LED indicators.
Item Function
1 USB1 Universal Serial Bus port
2 CD - ROM Slim CD ROM drive
3 Floppy disk Slim floppy
drive
4 Control
Panel/LEDS
RESET: The reset switch reboots the system.
5 Power This is the main power switch, which is used to apply or
turn off the main system power. Turning off system power
with this button removes the main power but keeps standby
power supplied to the system.
Overheat: Indicates an overheat condition in the
chassis.
NIC: Indicates network activity on LAN when flashing.
HDD: Indicates IDE channel activity.
Power: Indicates power is being supplied to the
system's power supply units. This LED should
normally be illuminated when the system is operating.
P I
RODUCT NFORMATION
5
