Chapter 2: Description

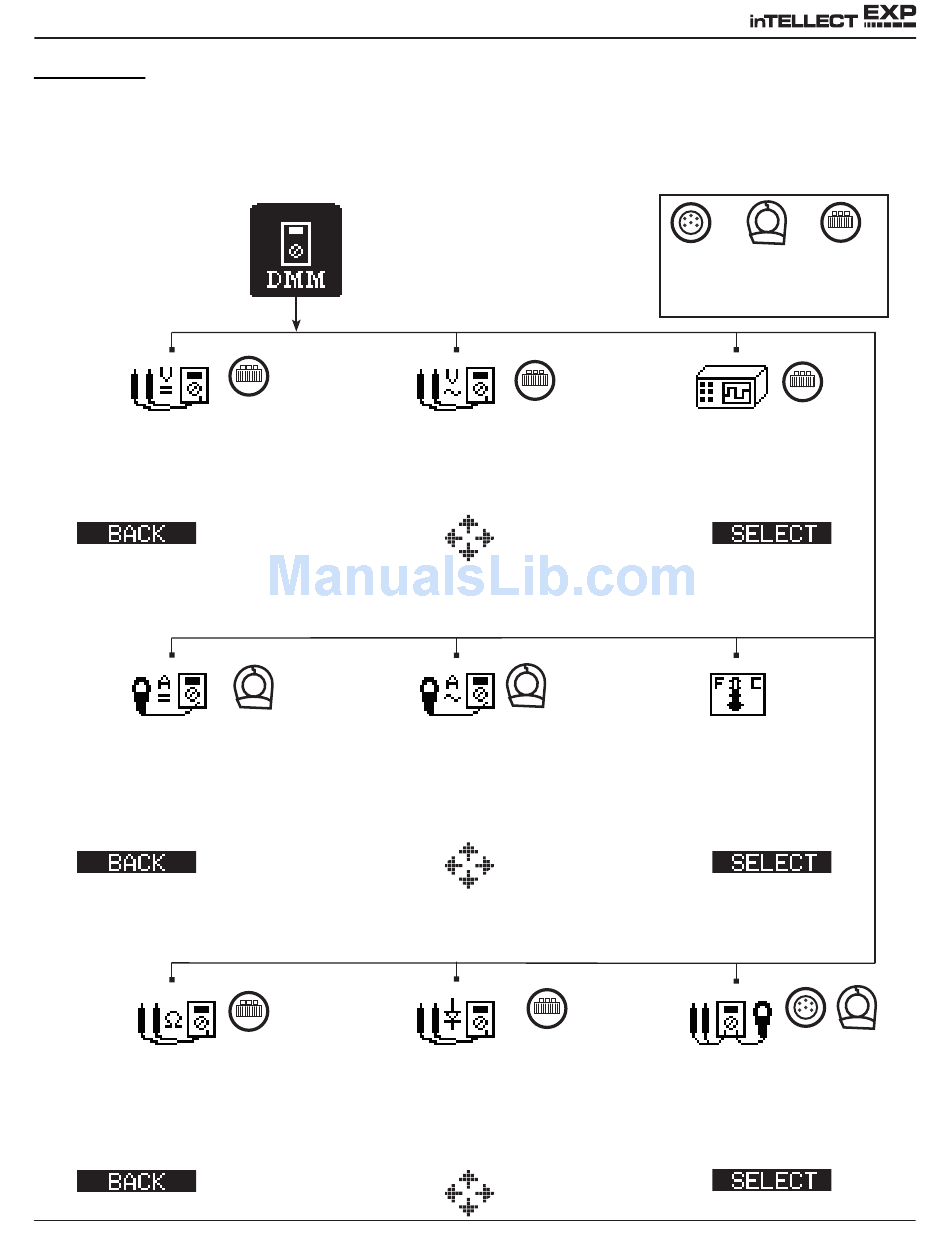

DMM Menu

The DMM Menu has icons for a temperature sensor and 8 test meters, some of which require different
test leads. The available leads depend on the EXP model purchased. The cable drop leads with
probes is an option that you can purchase separately.
Measures voltage within
a range of 0 to 60 Vdc.
to Main Menu
Tests the strength of
the direct current flow
through a circuit.
to Main Menu
Tests a circuit for con-
tinuity and resistance
measured in ohms (Ω).
to Main Menu
METERS (Screen 1)
Measures voltage within
a range of 0 to 24 Vac.
METERS (Screen 2)
Tests the strength of the
alternating current flow
through a circuit.
METERS (Screen 3)
Probes
only
Tests a diode for forward
voltage drop.
14
• •
Required test leads
Battery Amp
test clamp clamps or
probes
Voltage trace with time
and frequency measure-
ments.
an icon
Sensor that displays tem-
perature in degrees F
or C (units you can select
in the Utilities Menu.)
an icon
Measures two signals
simultaneously: DC volt-
age and amperage.
an icon
DMM
