Chapter 6: System Test

Starter System Test Results

Loop ohms (starter
l o o p r e s i s t a n c e )
displa y ed if amp
clamp used
Y axis = System per-
formance: cranking
voltage
Y axis = System per-
formance: Cranking
current is displayed if
amp clamp is used
Decision
CRANKING NORMAL
LOW VOLTAGE
CHARGE BATTERY
REPLACE BATTERY
LOW CRANKING AMPS The starter voltage is high but the cranking amps are low.
NO START
CRANKING SKIPPED

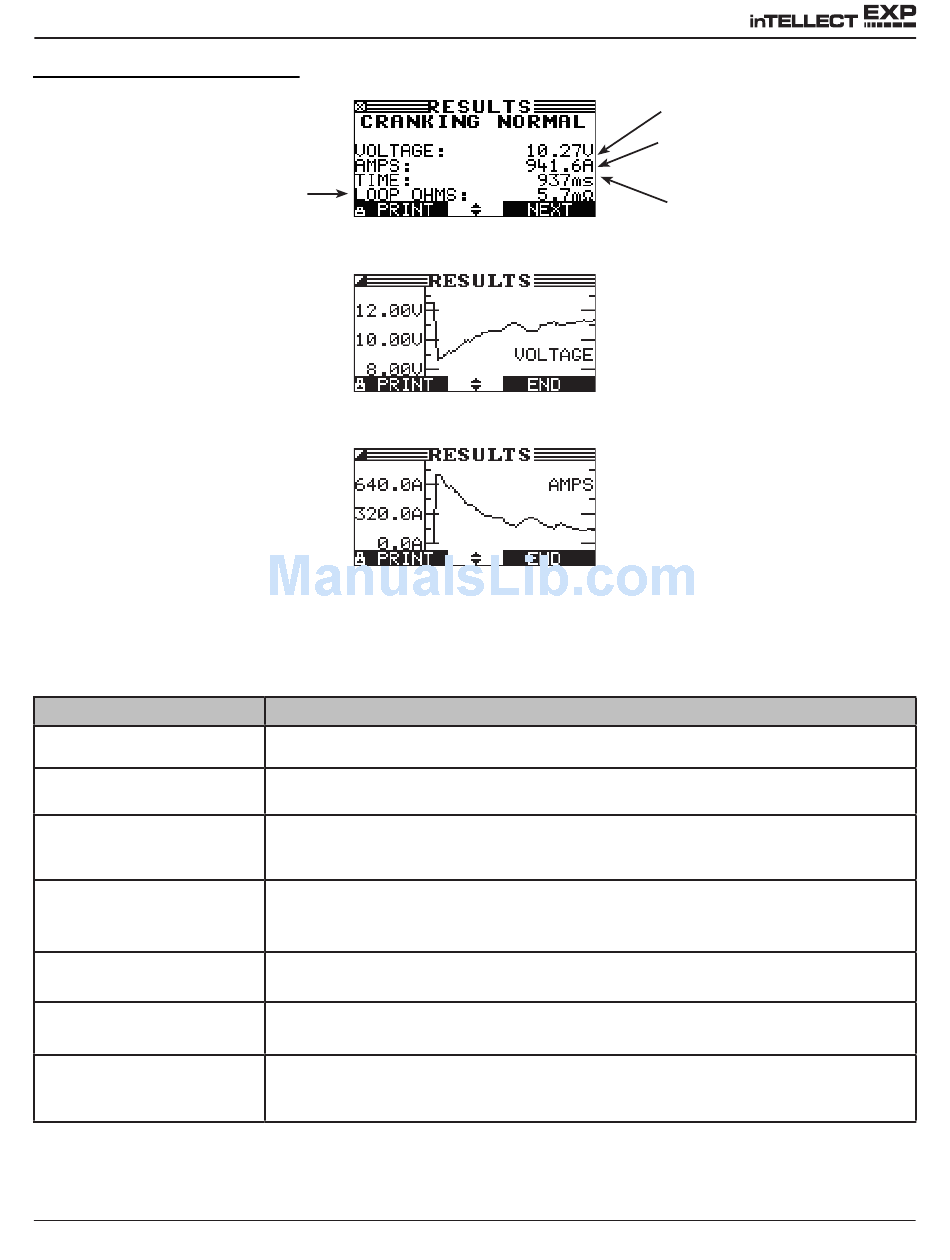

Figure 15: Normal Cranking Result
Table 2: Starter System Decisions and Recommendations
Action
The starter voltage is normal and the battery is fully charged.
The starter voltage is low and the battery is fully charged.
The starter voltage is low and the battery is discharged. Fully charge the
battery and repeat the starter system test.
(If the battery test result was (REPLACE or BAD CELL.) The battery must
be replaced before testing the starter.
The engine didn't start and the test was aborted.
The EXP didn't detect the vehicle's starting profile and skipped the Starter
Test.
26
• •
Average cranking voltage
Average cranking current if
amp clamp is used
Cranking time in
milliseconds
X axis = Time
X axis = Time
