Chapter 2: Description

Test Leads, Connectors, and Data Ports

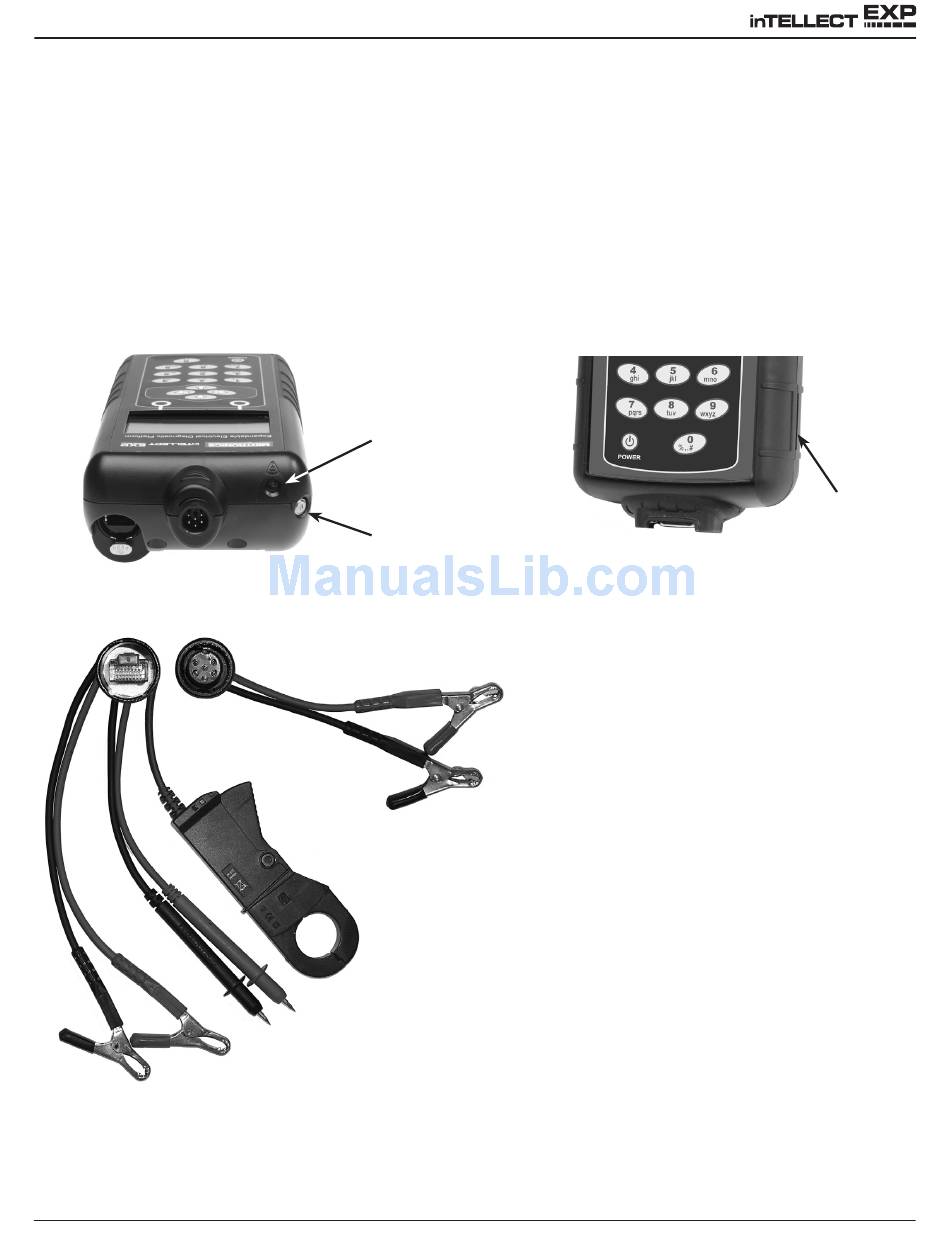

For the cable test leads (Figure 5), there are two connectors on the top of the EXP (Figure 3).
• For the battery test cable, the EXP has a 6-pin connector with a locking ring.
• For the amp clamp and the multimeter test cables, the EXP has an accessories port, which
is a RJ45 connector with a release lever.
Figure 3: Top of EXP
6-pin
Accessories
connector
port
DMM cable with
clamps
Figure 5: Test Leads
IR data
transmitter
IR temperature
sensor
Battery
test cable
Amp clamp
DMM cable
with probes
10
• •
Figure 4: Bottom of EXP
DB-9
connector
for future
expandability
There are two IR data ports on the top of
the EXP (Figure 3).
• An IR data transmitter, which
transmits test results to the optional
IR printer.
• An IR temperature measurement
sensor.
The EXP also has a DB-9 connector for
future expandability and an SD card slot
for future software upgrades or data
logging. (Figure 4).
The EXP ships with an unprogrammable
card to protect the slot from dust and
debris.
SD card slot
for future
upgrades
