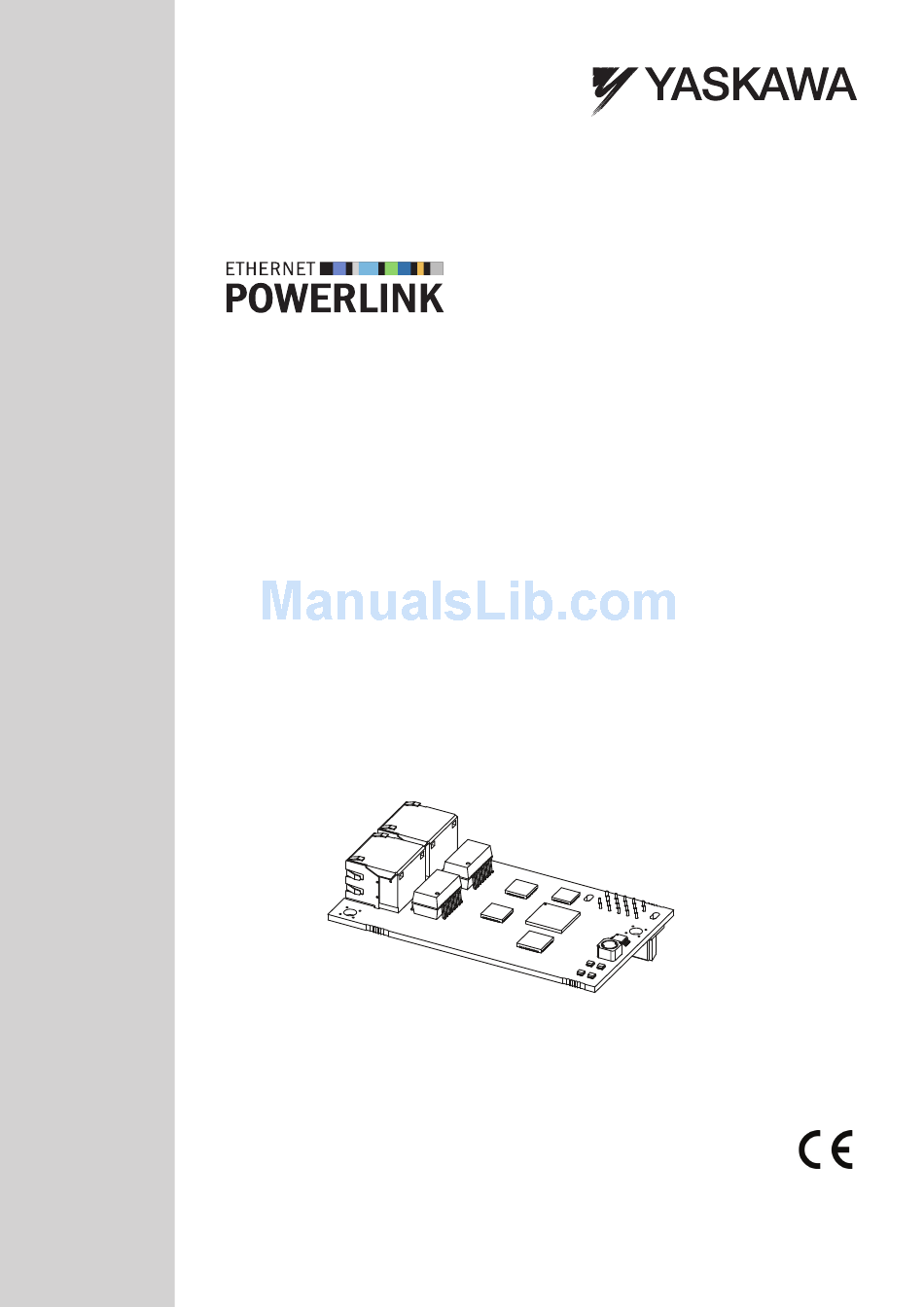

YASKAWA AC Drive A1000 Option
Technical Manual
Type: SI-EL3 for A1000 Series
To properly use the product, read this manual thoroughly and retain
for easy reference, inspection, and maintenance. Ensure the end user
receives this manual.
ATTENTION!
This product can only be used on A1000 drives with firmware
version VSA901018 to VSA901099 installed.
MANUAL NO. YEU SIEP C710616 86A
YASKAWA EUROPE GMBH YEU SIEP C710616 86A - AC Drive A1000 Option Powerlink - Technical Manual
RoHS Directive
RoHS Directive Stands for
the EU directive on the
Restriction of the Use of
Certain Hazardous
Substances in Electrical
and Electronic Equipment.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI-EL3 and is the answer not in the manual?

Questions and answers

Related Manuals for YASKAWA SI-EL3

Summary of Contents for YASKAWA SI-EL3

  • Page 1 EU directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment. MANUAL NO. YEU SIEP C710616 86A YASKAWA EUROPE GMBH YEU SIEP C710616 86A - AC Drive A1000 Option Powerlink - Technical Manual...

  • Page 3: Table Of Contents

    All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of YASKAWA. No patent liability is assumed with respect to the use of the information contained herein.

  • Page 4: Preface And Safety

    Any warnings provided by YASKAWA must be promptly provided to the end user. YASKAWA offers an express warranty only as to the quality of its products in conforming to standards and specifications published in the YASKAWA manual.
  • Page 5 • The products and specifications described in this manual or the content and presentation of the manual may be changed without notice to improve the product and/or the manual. • When ordering a new copy of the manual due to damage or loss, contact your YASKAWA representative or the nearest YASKAWA sales office and provide the manual number shown on the front cover.

  • Page 6: Product Overview

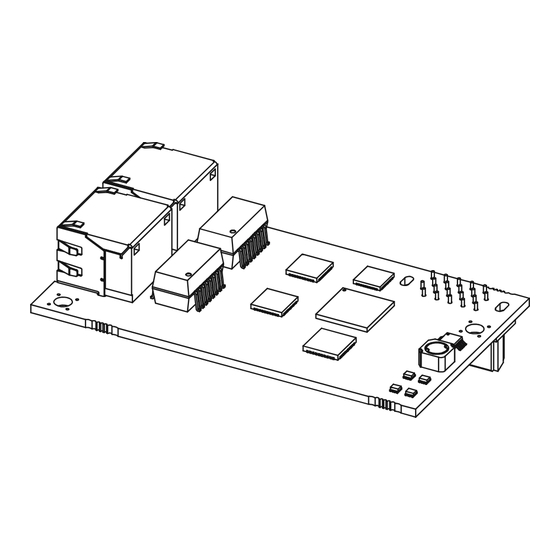

    2 Product Overview Product Overview  About This Product The Powerlink Option (Model: SI-EL3) is an option card designed to connect the YASKAWA AC drive to a Powerlink network. Using this option card a Powerlink master can: • operate the drive •...
