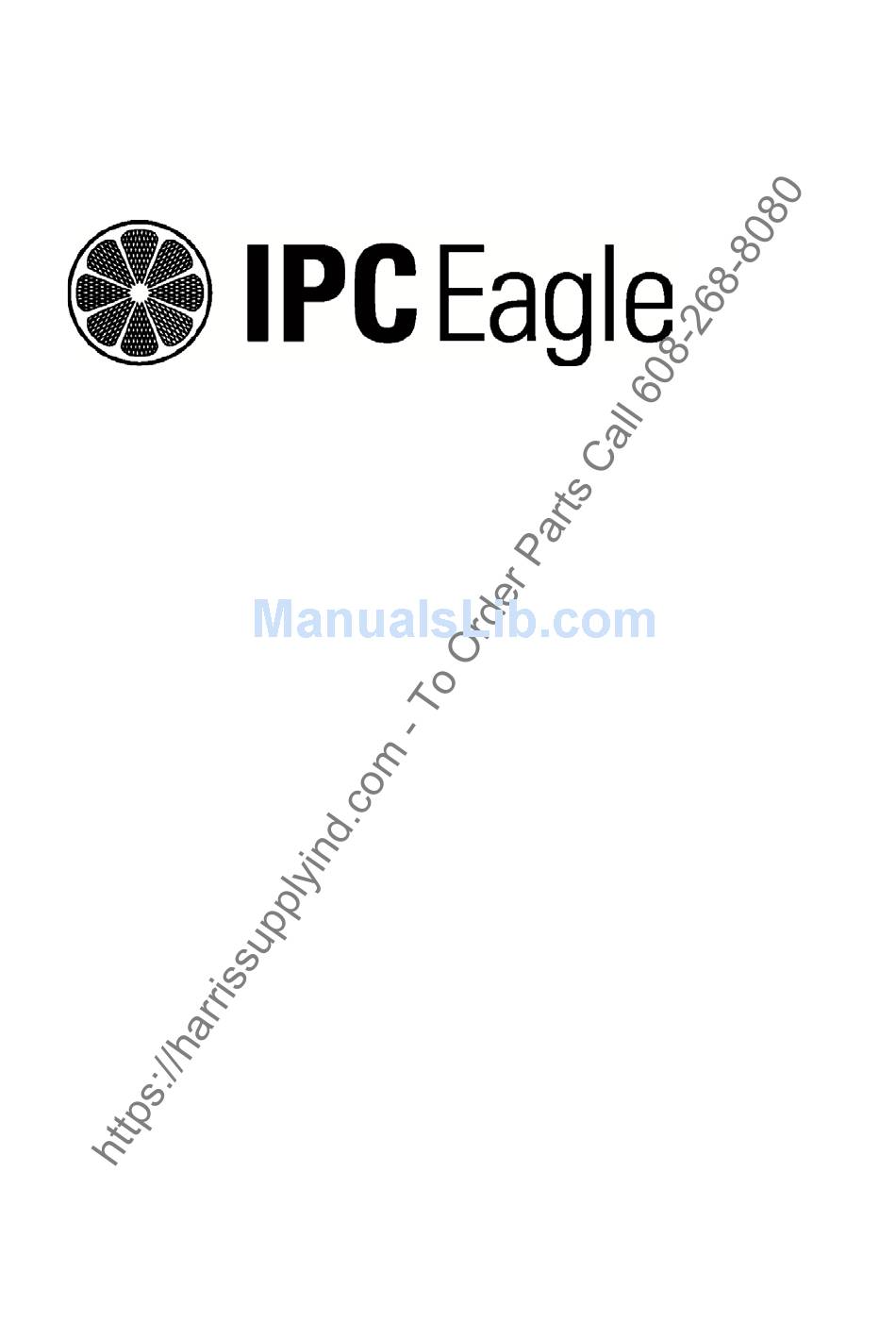

- Page 1 OPERATIONS MANUAL 450B FLEC02-B F36B...
-
Page 2: Table Of Contents
ENGLISH INDEX 1. INDEX Page 2. SAFETY PRECAUTIONS Page 3. GENERAL INFORMATION Page 3.1 Machine identification Page 3.2 General description Page 3.3 Applications Page 3.4 Detergents to be use Page 4. PREPARING THE MACHINE Page 4.1 Lifting and transporting the machine in its packaging Page 4.2 Checks on delivery Page... -
Page 3: Safety Precautions
ENGLISH SAFETY PRECAUTIONS Read this manual carefully before using the floor cleaner. The machine must not be operated by untrained or unauthorized personnel. Ensure that the sockets used to power the mains-operated models or battery chargers are suitably earthed and that they are protected by magnetothermal and differential switches. This automatic scrubber shall be grounded while in use to protect the operator from electric shock. - Page 4 ENGLISH Safety precautions for cable models During use, avoid squashing or ripping the mains cable. Periodically check the mains cable to ensure that it has not been damaged. If damaged, the machine cannot be used. If you have to replace the cable, plug or terminals, secure the electrical connections and cable strap (fig. 3, N°...
-
Page 5: General Information
ENGLISH GENERAL INFORMATION 3.3 Machine identification This operating and service manual applies to models of single-brush floor cleaners. The machine identification plate is affixed to the electrical box in position N° . 14, fig. 2. 3.2 General description This floor cleaner has been designed to wash and dry smooth, even floors free from obstructions. It is available in battery or mains-operated versions to satisfy all requirements. -
Page 6: Preparing The Machine
ENGLISH PREPARING THE MACHINE 4.1 Lifting and transporting the machine in its packaging The machine is packed on a wooden pallet and can be moved by fork lift. Handle carefully, avoiding knocks, and do not overturn. 4.2 Checks on delivery When the transporter delivers the machine, carefully check the state of the packaging and ensure that the machine is intact. -
Page 7: Fitting The Squeegee
ENGLISH 4.4 Fitting the squeegee The squeegee (fig. 2, N° . 18) is the prime drying a gent. To fit it on the machine, stand behind the handgrip with the squeegee blades facing down and the wheel (fig. 4, N° . 50) in the position shown in figure 4. -
Page 8: Using The Machine
ENGLISH If the machine is supplied with tubular armoured batteries, instal them following the instructions below: • if the bonnet (fig. 2, N° . 1) is fitted on the ma chine, remove it by gripping and lifting at the point shown in figure 2, N° . 3; •... -
Page 9: Adjusting The Squeegee
ENGLISH • TAP CONTROL SLIDER (fig. 2, N° . 4): located above the tanks on the left side of the machine, it permits continuous regulation of the flow of detergent solution from 0 to approximately 3 l/min; • SQUEEGEE ANGLE ADJUSTMENT KNOB (fig. 4, N° . 46): located on the squeegee arm, it permits vertical adjustment of the squeegee angle;... -
Page 10: Fitting And Dismantling The Bonnet
ENGLISH • gradually lower the end of the pipe, regulating the flow according to its height from the ground; • once the contents of the tank have been fully discharged, refit the cap and reposition the pipe. 5.6 Fitting and dismantling the bonnet To remove the bonnet (battery-operated model fig. -
Page 11: Work
ENGLISH • pour clean water and detergent in the right concentration into the solution tank (fig. 2, N° . 23) leaving a gap of at least 5 cm between the surface of the liquid and the tank inlet; • refit the tank cover (fig. 2, N° . 2). 5.10 Work Once you have prepared the machine with the mains cable connected to the power socket (or with the batteries charged and the battery wiring connector (fig. -
Page 12: Ordinary Maintenance
ENGLISH • prewashing: open the water tap and begin washing with the suction unit off and squeegee raised, going over the dirtiest points several times. This gives the detergent time to act and the brush time to perform efficiently; • drying: lower the squeegee, start the suction unit motor and go over the same area again. -
Page 13: Cleaning The Detergent Solution Tap
ENGLISH • unscrew the knobs (fig. 3, N° . 42) and remove the filter box (fig. 3, N° . 41) and filter (fig. 3, N° . 40); • clean the filter under running water, leave to dry and refit everything. 6.4 Cleaning the detergent solution tap To eliminate any scale that may prevent perfect closure of the tap, follow the instructions below: •... -
Page 14: Replacing The Fuses (Battery-Operated Model)
ENGLISH Each squeegee is fitted with two blades, only one of which will be subject to wear. Initially therefore, when one blade is worn, simply swap them round and then when the second one is worn, replace them both. Swapping the blades (for references see fig. 4): •... -
Page 15: Routine Maintenance: Daily Operations
ENGLISH 6.9 Routine maintenance: daily operations Every day, at the end of work, carry out the following operations: • check that the overflow valve (fig. 3, N° . 39) is working correctly; • check that the recovery tank (fig. 2, N° . 13) is not encrusted with dirt; if so, clean it; •... -
Page 16: Troubleshooting
ENGLISH TROUBLESHOOTING Fault Cause Remedy The solution does not flow * The solution tank (fig. 2, N° . * Fill it 23) is empty * The solution filter (fig. 3, N° . * Clean the filter and remove 28) or pipes are obstructed the obstruction in the pipes * The tap is damaged * Repair or replace the tap... - Page 17 ENGLISH Fault Cause Remedy The machine does not clean * The brush or abrasive disk is * Replace evenly worn The machine runs too fast or * The brush pressure must be * Adjust the brush pressure via does not move at all and adjusted the speed regulation knob (fig.
