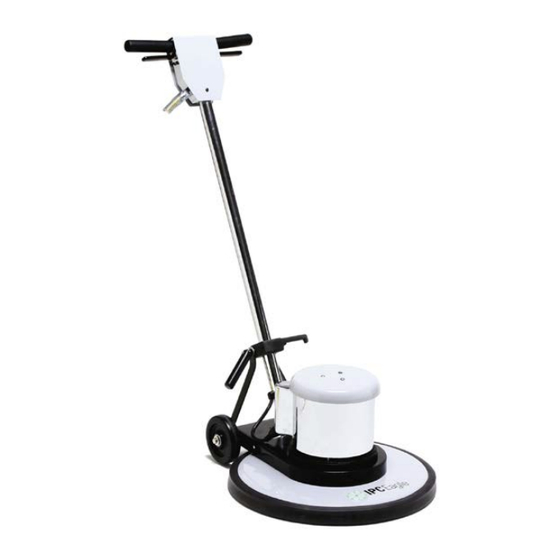

- Page 1 OPERATIONS MANUAL & PARTS LIST B1500, B2000, FM17, FM20 IPC Eagle • 3650 Dodd Rd, Eagan MN 55123 • 800.486.2775 • www.ipceagle.com...
-
Page 3: When The Machine Is Delivered
This machine will assure years of satisfactory service if operated and maintained according to recommendations in this manual. If additional information is needed, please contact your local distributor or write to: IPC EAGLE 3650 Dodd Rd Eagan, MN 55123 All information and specifications printed in the manual and parts list are current at the time of printing;... -
Page 4: Grounding Instructions
WARNING • Do not pull or carry by cord, use cord as handle, close a door on the cord or pull cord around sharp edges or corners. Do not run machine over cord. Keep cord away from heated surfaces. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. •... -
Page 5: Preparing The Machine For Operation
PREPARING THE MACHINE FOR OPERATION Your floor machine will operate in a wide variety of hard floors and carpet cleaning applications. Consult with your local dealer or IPC’s Customer Service to select the correct accessories for the job you are going to perform. -
Page 6: Machine Operation
MACHINE OPERATION 1. Install the pad driver and pad, brush or attachment. 2. Plug in machine. 3. Lower the handle to the desired operating position. 4. Place both hands on the handle grips with your fingers around the on/off lever which extends from one side to the other underneath the handle grips. 5. - Page 7 OPERATING INSTRUCTIONS FOR MODELS 17DS AND 20DS DUAL SPEED MACHINES These units operate to all instructions already described except the following: These models can run at either 175 RPM for scrubbing or at 300 RPM for buffing. To switch the RPM, use the rocker switch located between the motor and the base of the handle.
- Page 8 NOTES _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________...
- Page 9 10 11 12 FM17 IPC Eagle...
- Page 10 FM17 ITEM # PART # DESCRIPTION B11487 POWER CORD, 14-3, 50 FT, SJTW K11498 GRIP C11528 SCREW, 10-32 X .25 IN LABEL, 1.5HP LABEL, IPC D11496G SWITCH BOX COVER, GREY H11493 LABEL, SAFETY, FLOOR MACHINE C11529 SCREW, 10-32 X .375 IN K11519 LEVER GRIP, LOCKOUT, BLACK C00278...
- Page 11 58 57 56 FM20 IPC EAGLE...
- Page 12 FM20 ITEM # PART # DESCRIPTION B11487 Power Cord, 14-3, 50 FT, SJTW K11498 Grip C11528 Screw, 10-32 X .25 in Label, 1.5 HP Label IPC D11496G Switch Box Cover, GREY H11493 Label, Safety, Floor Machine C11529 Screw, 10-32 X .375 in K11519 Lever Grip, Lockout, Black C00278...
- Page 13 4 5 6 18 19 B2000/B1500 Handle 31 30...
- Page 14 B2000/ B1500 HANDLE ITEM # PART # DESCRIPTION H02548-2 Label, Important, Cord B11900 Power Cord, 12-3, 75 FT, SJTW K11498 Grip C11528 Screw, 10-32 X .25 in H12069 Label, 2000 RPM, Saturn H11831 Label, EDIC, Black-Silver D11496B Switch Box Cover, Black...
- Page 15 19 20 22 27 28 B1500 Base...
- Page 16 B1500 BASE ITEM # PART # DESCRIPTION B02196-1 LIGHT, MOTOR CARBON BRUSH WEAR C11916 SCREW, 10-32 X .375 PHILLIPS H11830 LABEL, SATURN, DRIP COVER D11490C-H DRIP COVER, CHROME W/ HOLE FOR GREEN LIGHT C00297 SCREW, #8 X .25 IN PAN HEAD D11545 MOTOR SCREEN C00293...
- Page 17 19 20 22 27 28 B2000 Base...
- Page 18 B2000 BASE ITEM # PART # DESCRIPTION B02196-1 Light, Motor Carbon Brush Wear C11916 Screw, 10-32 X .375 Phillips H11830 Label, Saturn, Drip Cover D11490C-H Drip Cover, Chrome w/Hole for Green Light C00297 Screw, #8 X .25 in, Pan Head...
- Page 19 NOTES...
