Page 1: Parts List

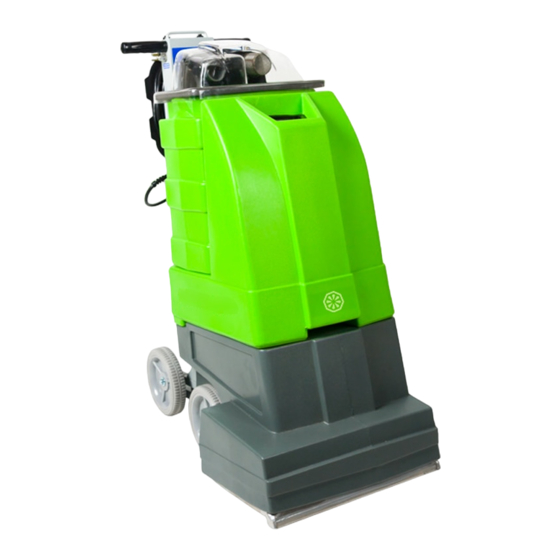

OPERATIONS MANUAL & PARTS LIST Fastracts Extractor IPC Eagle • 3650 Dodd Rd, Eagan MN 55123 • 800.486.2775 • www.ipceagle.com... -
Page 2: Before Operating The Machine
This machine will ensure years of satisfactory service if operated and maintained according to recommendations in the manual. If additional information is needed, please contact your local distributor or write to: IPC Eagle 3650 Dodd Rd Eagan, MN 55123 All information and specifications printed in the manual and parts list are current at the time of printing;... - Page 3 • Use defoamer at all times to prevent damage to the vacuum motor(s). • Do not use water in excess of 140°F (62°C). • Use only commercially available carpet cleaners and defoamer intended for use with machines of this type. Do not use dyes, bleaches, ammonia or other additives. The use of powdered cleaning solution if not diluted properly made result in damage to the pump.
-
Page 4: After Each Use
NOTE: If dirty solution does not appear through the vacuum lid check to be sure if: • The vacuum lid is resting properly on the recovery pails • The machine’s nose is touching the carpet in the working mode. • The solution tank is not empty. -
Page 5: Maintenance
MAINTENANCE The upright extractor is engineered for minimum maintenance. But it does require some care to keep it in optimum working condition. Careful attention to these maintenance instructions will give you maximum operating performance and life expectancy of the machine. •... - Page 6 SOLUTION SYSTEM PROBLEM POSSIBLE CAUSE Pump motor on, no 1. Clogged spray tips. spray thru carpet 2. Clogged solution intake filter screen. spray tips or 3. Clogged solenoid valve or open solenoid coil. accessory tool 4. If carpet spray works normally, plugged up female quick disconnect coupler.
- Page 7 BRUSH DRIVE BELT SERVICE AND/OR REPLACEMENT (refer to parts diagram). 1. Remove 2 1/4-20 hex screws attaching lower frame to upper frame. 2. Remove (2) spring cover plate assemblies and carefully remove springs from the slide blocks. 3. Loosen (2) 1/4-20 hex screws that hold brush motor bracket in place. Push bracket toward the front of the machine to loosen belt.
- Page 8 Fastracts SC7 Fig. 1...
- Page 9 Fastracts SC7 Fig. 2...
- Page 10 Fastracts SC7 Fig. 5...
- Page 11 Fastracts SC7 Fig. 7...
- Page 12 PARTS LIST FASTRACTS SC7 Item Description Part No. Qty. Fig. CLIP, ADAPTER RETAINER D02391 HOSE, ADAPTOR D02359 SEAL, VACUUM INTAKE E02431 SHAFT, LID PIVOT D02373-1 SPRING, DOME PIVOT D02372 SPRING, SLIDE BLOCK D02372 2 & 3 VACUUM LID ASSEMBLY 80491-1A...
- Page 13 PARTS LIST FASTRACTS SC7 and SC12 Item Description Part No. Fig. BRUSH CHAMBER ASSEMBLY (17") 82406A 2&3 90 ELBOW, 1/8 FP x 1 /4 C (17") A00144 2&3 GLIDE, BACK (17") D02389-1 1(2) 2&3 GLIDE, FRONT (17") D02389 1(2) 2&3...
- Page 14 PARTS LIST FASTRACTS SC7 and SC12 Item Description Part No. Qty. 80317-3A 5&6 VACUUM MOTOR MOUNTING ASSEMBLY (3 STAGE) LOOM, CORRUGATED F00463 5&6 VACUUM MOTOR, 2 STAGE, 115V 02517-2A 5&6 BUSHING, 1/8 MP x 1/4 C A00125 90 ELBOW, 1/8 MP x 1/4 C A00132 5&6...
- Page 15 PARTS LIST FASTRACTS SC7 and SC12 Item Description Part No. Qty. Fig. LIGHT, INDICATOR, GREEN LENS B02196 GRIP, HANDLE, BLACK K00715B-1 BOOT, FLEX, CIRCUIT BREAKER (TUV) B02193 SPRING, BRACKET, VACUUM VALVE, ASSEMBLY 83349A SPRING, VACUUM VALVE SLIDE RETURN D03371 HANDLE, ADJUSTABLE...
- Page 16 Fastracts SC7...
-
Page 17: Warranty Policy
Date Purchased: Model Number: Serial Number: Please be sure to record this information. This information will be necessary for future warranty claims. IPC Eagle Products Sales and Service Provided by: 3650 Dodd Rd, Eagan MN 551213 800-486-2775, 651-686-5399 www.ipceage.com...
