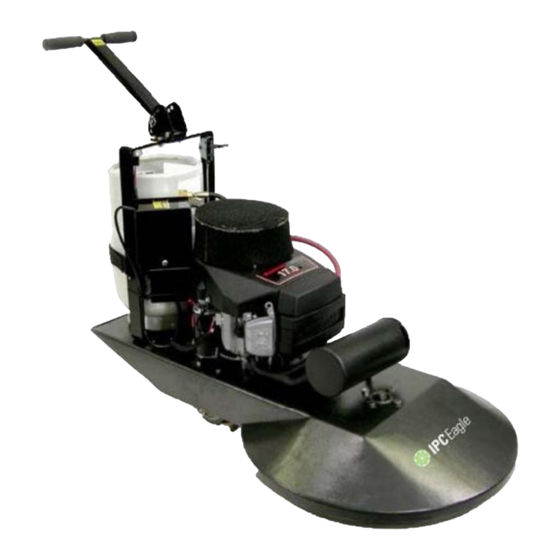

- Page 1 OWNER’S MANUAL PB 24" Propane Burnisher Powered by the EPA/Carb certified Kawasaki 603cc Engine READ THESE INSTRUCTIONS BEFORE USING...
-
Page 2: Important Safety Instructions
PG. 2 IMPORTANT SAFETY INSTRUCTIONS Always vent an over-full bottle using the tank’s bleed valve, out of doors away from all closed READ and UNDERSTAND all instructions and places and away from any fire or flame producing warnings before operating this machine! device. -
Page 3: Starting The Engine
PG. 3 D. Connecting the high pressure hose to the WARNING LPG Tank: Make sure the couplers are in line and screwed Do not use “T” handle when attempting to tilt together hand tight. If this is not done properly, back machine for service or cleaning. -
Page 4: Operation
PG. 4 • Propane tanks should be removed & cleaning the unit, check for possible loose nuts stored in a protected off site area. and bolts. B. Engine maintenance meter III. OPERATION This multi-function meter acts as a preventive Provide and use ear protection during operation. maintenance tool, which benefits you with Never let an untrained person operate or increased fuel economy, less down-time and... - Page 5 PG. 5 amperes total output. (A pair of good KAWASAKI ENGINES jumper cables from your car or truck battery Tune-up Specifications will suffice.) Equip yourself with an inexpensive 12 volt test light. ITEM SPECIFICATIONS c. If the trouble seems to be in the electrical Ignition Timing Unadjustable control equipment, you may wish to...
- Page 6 PG. 6 Engine Oil Capacity CAUTION! FH381V, FH500V, FH541V: Fill to 1.5 L (1.6 US Before removing the oil filter, place a qt.) when oil filter is not removed. Fill to 1.7 L (1.8 suitable pan under filter connection. US qt.) when oil filter is removed. Oil Change •...
- Page 7 PG. 7 KAWASAKI ENGINE MAINTENANCE SCHEDULE INTERVAL MAINTENANCE Daily First 8 hr. Every 25 Hr. Every 50 hr. Every 100 hr. Every 200 hr. Every 300 hr. Check and add engine oil Check for loose or lost nuts and screws Check for fuel and oil leakage Check battery electrolyte level Check or clean air intake screen...
- Page 8 PG. 8 PARTS LIST FOR BUFFER BODY ASSEMBLY REF # DESCRIPTION PART # POLYWHEEL 156-PB-03041-08 1 3/4" SHOULDER BOLT 196-70212 3/8-16 x 2" BOLT (21"-27" MODELS) 164-10123 3/8-16 x 2 1/2" BOLT (24" MODELS) 164-10127 4" WHEEL (21" MODELS) 156-SRB-4H3 5"...
- Page 9 PG. 9 PARTS LIST FOR BUFFER HANDLE ASSEMBLY PART # DESCRIPTION PART # BATTERY 276-GTX14 (-) BATTERY CABLE 153-6-10 BATTERY BOX TOP COVER 283-11-2127T WIRE HARNESS 011-762-WHK KEY SWITCH 312-308-0385 3/8-16 LOK NUT 164-22834 3/8-16X1" HEX BOLT 164-10115 RIGHT HANDLE BRACKET 283-025-500 T-HANDLE 283-025-600...
- Page 10 PG. 10 PARTS LIST FOR BUFFER FUEL SYSTEM PART # DESCRIPTION PART # QUICK COUPLER 152-700 LPG HOSE 14" 267-P5561-14 LPG HOSE 20" 267-P5561-0410 FUEL LOK-OUT (VACUUM) 152-300 90˚ FITTING 177-116B04 VACUUM HOSE FITTING 166-62029 1 1/2" NIPPLE 177-56021 FUEL REGULATOR (T60-E) 152-500 FUEL HOSE FITTING 166-62039...
- Page 11 PG. 11 KAWASAKI 603cc ENGINE PART # DESCRIPTION PART # Foam Hat Filter 186-271964 Debris Screen 309-18540 Foam Hat Seal 175-7.75*9.25*1 Oil Pressure Switch 152-N3-0082 Oil Filter 309-49065-7007 Oil Drain Valve 312-504-0185 1 / 4 x 1 1 / 4 Key 199-NHNT-SE UND Crank Pulley (21”...
- Page 12 PG. 13 NOTES...
- Page 13 PG. 14 NOTES...
