Summary of Contents for IPC Eagle SC4

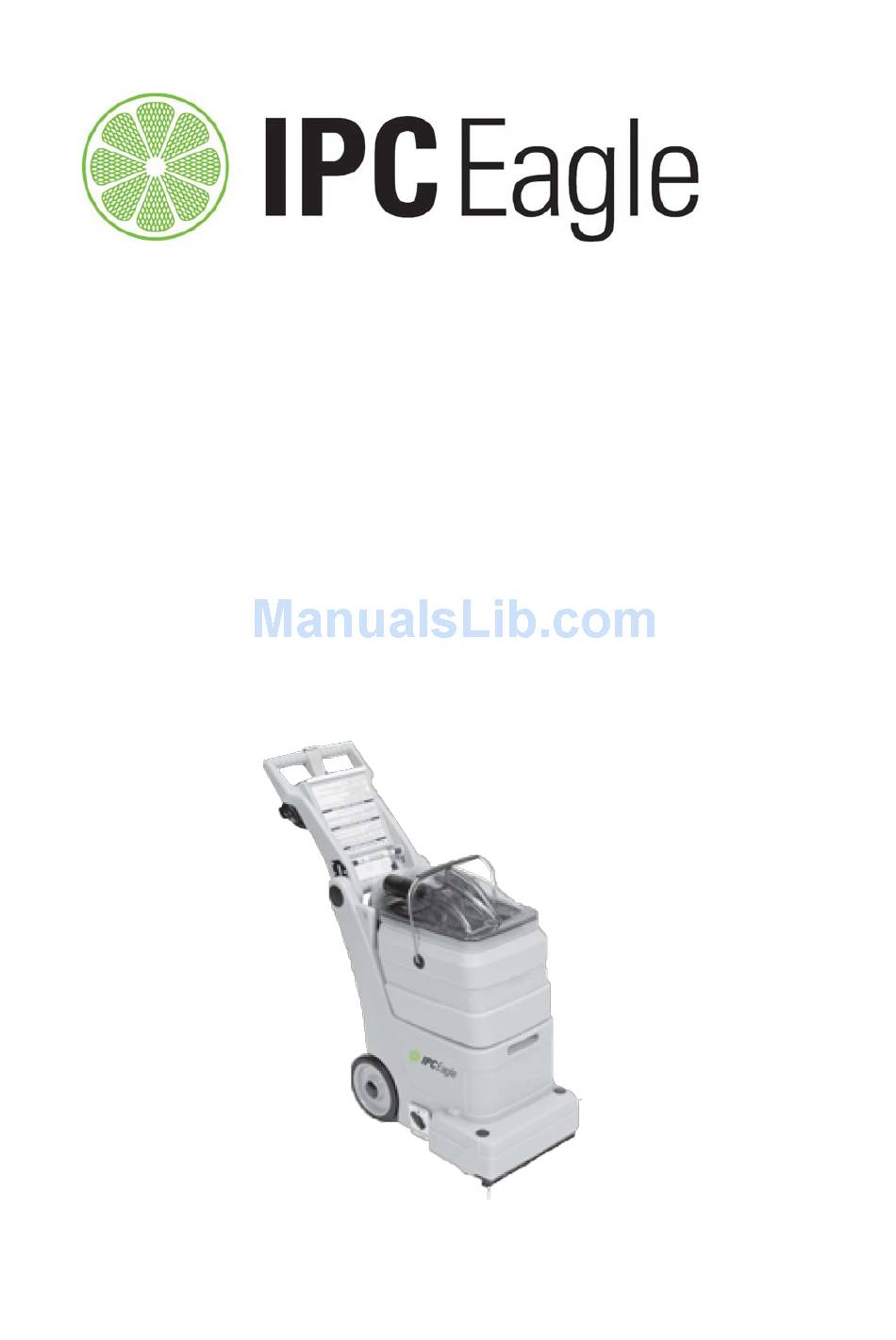

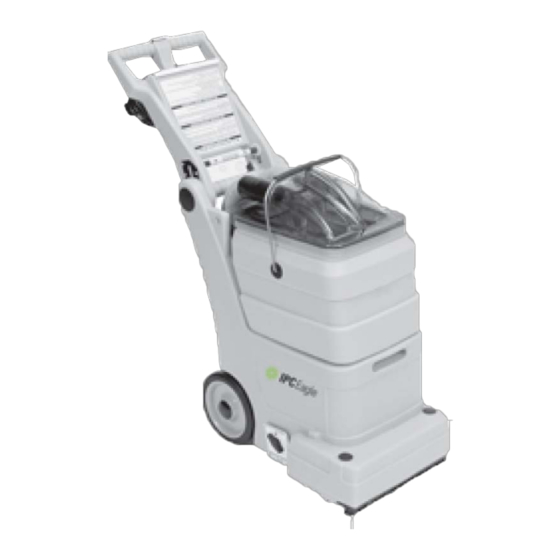

- Page 1 OPERATIONS MANUAL & PARTS LIST Fastracts Extractor IPC Eagle • 3650 Dodd Rd, Eagan MN 55123 • 800.486.2775 • www.ipceagle.com...
-
Page 2: When The Machine Is Delivered
This machine will ensure years of satisfactory service if operated and maintained according to recommendations in the manual. If additional information is needed, please contact your local distributor or write to: IPC Eagle 3650 Dodd Rd Eagan, MN 55123 800-486-2775 All information and specifications printed in the manual and parts list are current at the time of printing;... - Page 3 WARNING • The machine was designed for use on carpet, hard floors and upholstery extraction application as per instructions and recommendations written in this manual. Any deviation from its proper use or purpose and the consequential damage that may occur is the sole responsibility of the end user.
-
Page 4: Grounding Instructions
WARNING • Use only commercially available carpet cleaners and defoamer intended for use with extraction machines of this type. Do not use dyes, bleaches, ammonia, or other additives. The use of powdered cleaning solution if not diluted properly may result in damage to the pump. •... - Page 5 • Clean the area with an upright vacuum. DO NOT USE THIS MACHINE AS A DRY VACUUM! Heavily soiled carpet or areas of concentrated foot traffic should be treated with recommended prespotting or pre-spray chemicals. If a spotter is used, follow label directions exactly. Do not allow any spotter or pre- spray to dry on the carpet as it may damage the carpet permanently.
-
Page 6: Daily Maintenance
4. Clean Machine Before Returning See step 4 under To Clean Carpet. DAILY MAINTENANCE The Fastracts SC4 is engineered and built to require minimum maintenance. But like any machine, it does require some care to keep it in optimum working condition. Careful attention to these maintenance instructions... -
Page 7: Troubleshooting
CAUTION: Disconnect power cord from the outlet before doing any clean up or maintenance on the machine. 1. Keep the machine clean, inside and out including the lid, bucket, brush and brush chamber. 2. Pour a gallon of clean hot water in the smaller opening of the bucket. Turn the pump on and flush the entire system through the spray nozzles for about a minute to prevent alkaline build-up. -
Page 9: Parts List
PARTS LIST DESCRIPTION ITEM # PART # FIG. 8-32 X 3/8 ROUNDHEAD MACHINE BLACK PHILLIPS SS C00311 D10483 PLATE, MNTNG, SWITCHES, 115V, GREY D10713A ASSY, SWITCHPLATE W/SILKSCREEN LABEL (3 SWITCHES) D10998A ASSY, SWITCHPLATE W/SILKSCREEN LABEL (1 SWITCH) 1 B00214-2 COVER, SWITCH, ROCKER B00188 SWITCH, ROCKER, DPDT BLACK E10698... - Page 11 PARTS LIST ITEM # PART # DESCRIPTION QTY. FIG. H10777 LABEL, HANDLE ADJUST, BAIL HANDLE H10777-1 LABEL, HANDLE ADJUST, MULTILINGUAL F10691 TUBE, PULL LOCK, 1/4 X 6.75 PVC, BLACK D10479 ROD, PULL LOCK, PLATED, .025 X 7.750, ZINC PLATED C10730 WASHER, NYLON, 1.25"...
- Page 13 PARTS LIST ITEM # PART # DESCRIPTION QTY. FIG. 10490A ASSY, BLADDER, 3 GALLON UNIT, ALL VERSIONS D10760 PLATE, DIVIDER, BUCKET, FRONT, EPOXY GREY C00307-12 8/32 X 1/2 FLATHEAD MACHINE PHILLIPS, STAINLESS STEEL D10762 PLATE, DIVIDER, BUCKET, REAR, GREY EPOXY D10452 ASSY, BAIL HANDLE1 H10572...
- Page 15 PARTS LIST ITEM # PART # DESCRIPTION QTY. FIG. H10574 LABEL, PATENTS D10768 PLATE, DEFLECTOR, DOME, .080 ALUMINUM C00324-38 6/32 X 3/8 ROUNDHEAD MACHINE PHILLIPS, STAINLESS STEEL D10761 PLATE, LID GASKET, 7.859 X 2.03 X.080 5052-H32 ALUMINUM C02238-38 6/32 X 3/8, SCREW, S/S, FLATHEAD, MACHINE SCREW 10780A ASSY, HOSE, PUMP TO DOME C10503...
- Page 17 PARTS LIST ITEM # PART # DESCRIPTION QTY. FIG. F10474 SHOE, VACUUM, INJECTION MOLDED C03251 #8 SAE WASHER SS C00310-34 8/32 X 3/4 ROUNDHEAD MACHINE PHILLIPS D10426 SPRING, BRUSH, 1.25 x 1.80 X .022, 5.2 LBS./IN ZINC PLATED MATERIAL CERT REQUIRED ON EA SHIPMENT F10410-1 SLIDE BLOCK, BRUSH BEARING, 3 GALLON UNIT F10413...
- Page 19 PARTS LIST ITEM # PART # DESCRIPTION QTY. FIG. C10737 SCREW, 8-32 X 5/8, SS TRUSS HEAD, PHILLIPS 10763A PUMP, 115V, SHURFLO, 1.4 GPM, W/BYPASS ASSY C02308 1/4-20 x 1 ROUND HEAD PHILLIPS MACHINE SS E10446 MOTOR MOUNT, REAR, FLOJET MOTOR, SANTOPRENE, 3 GALLON UNIT D10447 CLAMP, BRUSH MOTOR C10737...
- Page 21 PARTS LIST ITEM # PART # DESCRIPTION QTY. FIG. C90006 SCREW, 6-32 X 3/4, PHILLIPS PAN HEAD, BLACK OXIDE D10618 PLATE, STRAIN RELIEF, BLACK E10723 GASKET, STRAIN RELIEF C00311 8-32 X 3/8 ROUNDEHEAD MACHINE, BLACK PHILLIPS SS D10501 PLATE, CORD WRAP, BLACK B10719 POWER CORD, 3/16 AWG, 300VAC, SJTO, 20', BLACK, W/NEMA 5-15 PLUG AND CORD CLIP...
- Page 23 NOTES...
-
Page 24: Warranty Policy
Date Purchased: Model Number: Serial Number: Please be sure to record this information. This information will be necessary for future warranty claims. IPC Eagle Products Sales and Service Provided by: 3650 Dodd Rd, Eagan MN 551213 800-486-2775, 651-686-5399 www.ipceage.com...
