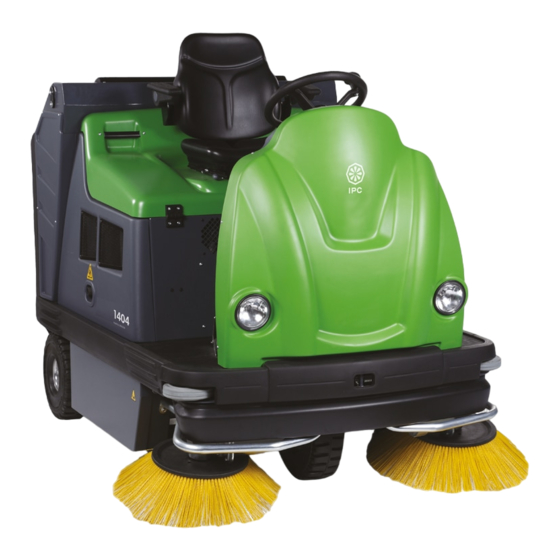

IPC Eagle 1404 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATIONS
MANUAL
1404

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1404 and is the answer not in the manual?

Questions and answers

Related Manuals for IPC Eagle 1404

Summary of Contents for IPC Eagle 1404

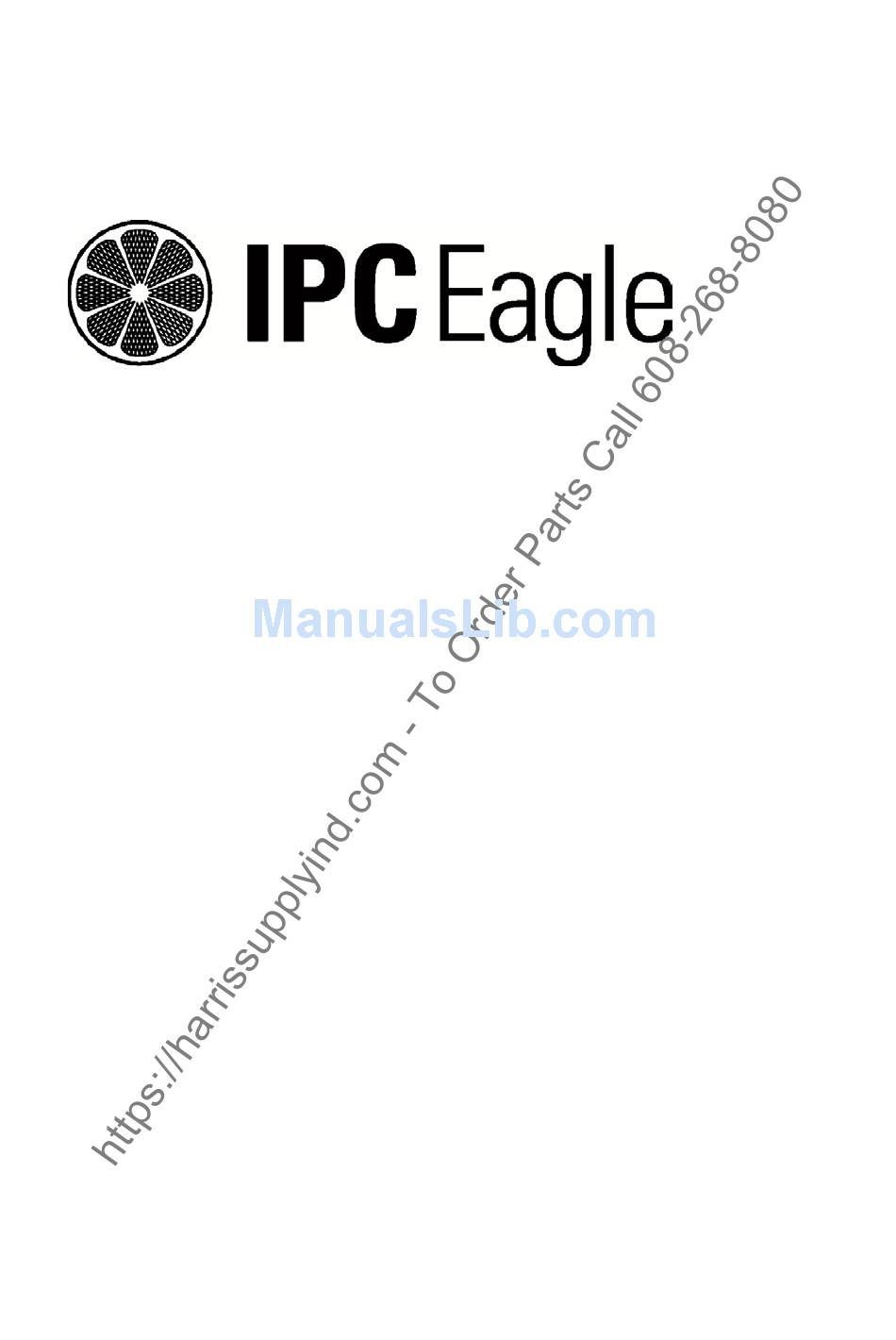

  • Page 1 OPERATIONS MANUAL 1404...

  • Page 2: Introduction / General Warnings

    We thank you for choosing IPC and congratulate you for purchasing the 1404-1460. A sweeper especially designed to guarantee safety and concern for the environment. The innovative design, the robust and trustworthy structure and the recyclable components make 1404-1460. a truly unique machine.

  • Page 3: Modifications And Improvements

    ENGLISH MODIFICATIONS AND IMPROVEMENTS Our company policy is based on the continuous improvement of our products. We therefore reserve the right to apply modifications and improvements whenever we believe these are necessary, without having to upgrade the machines previously sold. SAFETY Accident-prevention is also your responsibility.

  • Page 4: The Controls And The Control Panel

    ENGLISH THE CONTROLS AND THE CONTROL PANEL - Brake engagement pedal - Parking brake pedal - Flap raising pedal - Accelerator pedal - Right hand side brush control lever - Left hand side brush control lever - Seat adjustment lever - Selection of displayed data - Display - Key and indicator of work programme 1...
  • Page 5 ENGLISH 2 If the batteries are supplied without liquid (i.e. dry), they must be filled with sulphuric acid (density from 1.27 to 1.29 kg at 25° C), according to the instructions given in th e next paragraph and in the battery handbook: Filling batteries with acid.

  • Page 6: Using The Machine

    ENGLISH USING THE MACHINE TURNING ON THE MACHINE Fit in the ignition key and turn it clockwise. Three zeros will come up on the display for about three seconds, followed by the voltage rating of the battery. The operator’s seat features a safety device that disables traction (forward and reverse) when the operator gets up from his seat.
  • Page 7 Further to the tests effected and the results obtained from the evaluation of the energy consumption of our hybrid system, we can affirm that Genius 1404 DP can work autonomously. In other words, the machine does not have to be stopped to recharge the set of batteries (240 Ah).

  • Page 8: Emptying The Waste Bin

    ENGLISH In this case, we recommend the use of an intelligent battery charge with a IUIa charging curve and a final proportional charge, appropriately designed for this kind of machine and of a suitable size for the battery installed. After you have ended your work, disable the selected programme (1-2-3) and turn off the engine by flicking the toggle switch –...

  • Page 9: Replacing Light Bulbs

    ENGLISH FITTING AND REPLACING THE SIDE BRUSHES To facilitate transport, the side brush (or brushes) is not fitted in its expected working position. To fit the brush in its correct working position, proceed as follows: 1- Pull up the brush knob. 2- Loosen the screw on the shaft of the side brush motor.

  • Page 10: Adjusting The Brake

    ENGLISH MAINTENANCE,CHECKING AND RECHARGING THE BATTERY Check the level of electrolyte inside the batteries regularly. The battery compartment is under the operator’s seat. Raise the bonnet and open the caps on the cells. If necessary, top up with distilled water. The level of electrolyte is indicated in the battery instruction handbook.

  • Page 11: Air Filter Of The Engine

    ENGLISH AIR FILTER OF THE ENGINE Check the state of the engine’s air filter regularly. If necessary, wash the sponge (pre-filter) with water and soap or a standard household detergent. Rinse and dry. When necessary, replace the air filter of the engine. Refit the filter and cover.

  • Page 12: User Programming

    ENGLISH USER PROGRAMMING To enter USER PROGRAMMING, hold the display button down for 5” as the battery voltage - with no active load - is being displayed. You can program the following, in the order indicated: LANGUAGE: select using buttons P1 and P3. Give the display button a short press to memorise your setting and open the next page.

  • Page 13: Summary Table

    ENGLISH SUMMARY TABLE MAINTENANCE OF THE BATTERY VERSION IMPORTANT: these operations must be carried out with the machine off and the key removed. All routine and corrective maintenance operations must be effected by competent personnel or at an authorised service centre.
  • Page 14 ENGLISH SUMMARY TABLE MAINTENANCE OF THE DUAL POW ER - PETROL /DIESEL VERSION IMPORTANT: these operations must be carried out with the machine off and the key removed. All routine and corrective maintenance operations must be effected by competent personnel or at an authorised service centre.

  • Page 15: Safety And Troubleshooting

    ENGLISH SAFETY AND TROUBLESHOOTING The machine features some safety functions that have been described in the chapters concerning the use of both versions (with or without an engine): for instance, the system for stopping all functions to prevent the battery from running out or the possibility of turning the red key to disable the self-braking function in the event that the machine has to be pushed.
  • Page 16 ENGLISH DOWN BATTERY If voltage read on KEY line falls below Reset if voltage returns to 24.0V for 3” 20.3V (ACID) or 20.7V(GEL) for 3” consecutively. All functions except consecutively. traction are inhibited. Recharge the battery. BATTERY FLAT If voltage read on KEY line falls below Reset if voltage returns to 21.3V for 3”...
