AD4D
AD4D Dual Channel Receiver

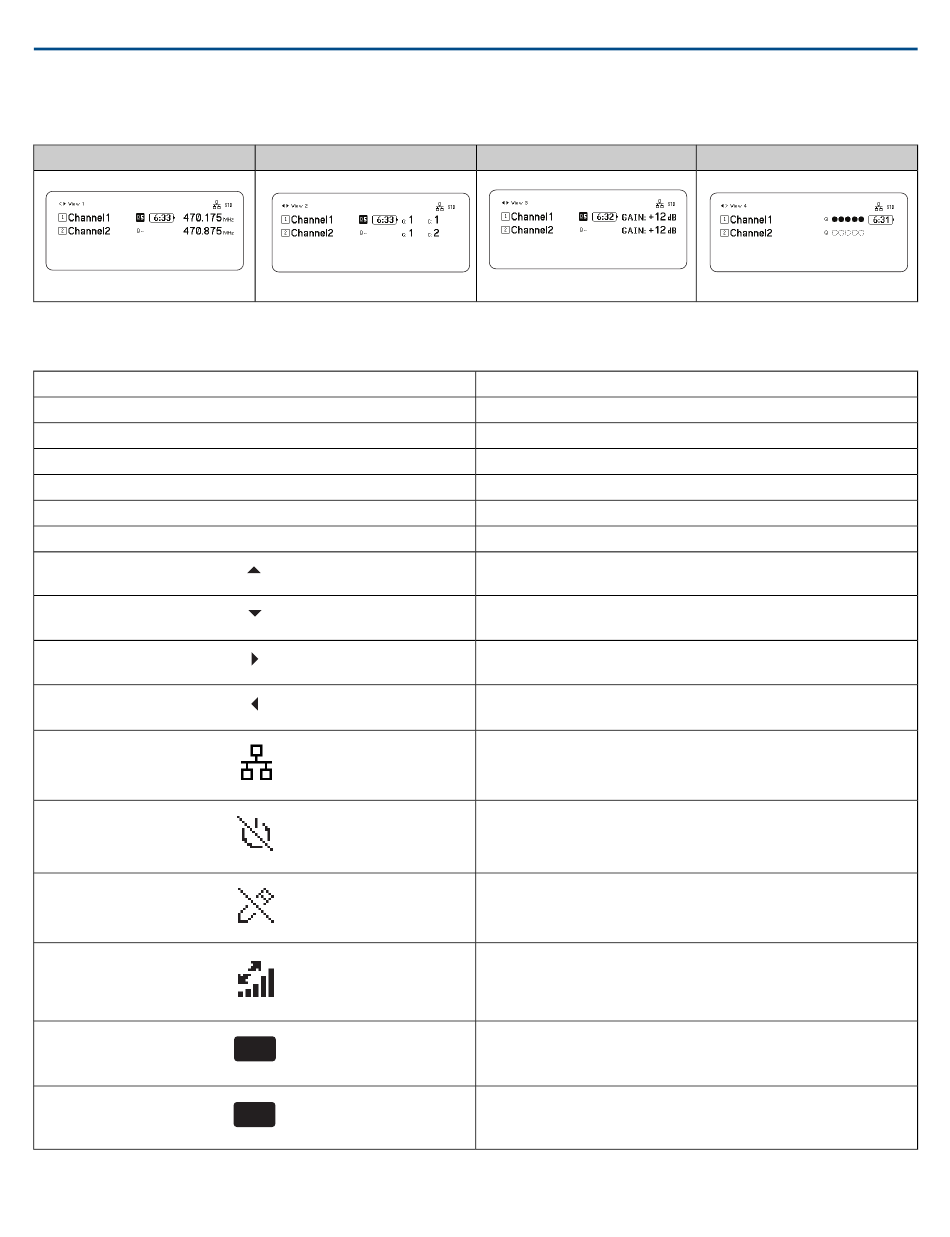

You can rotate the control wheel to choose different views of the information shown on the home screen, including channel name, group and channel, quality
meter, gain, and frequency.
View 1
Screen Icons
The following screen icons indicate receiver modes or settings:
2017/08/03
View 2
STD
HD
G:
C:
TV:
AES3
View
FD-C
FD-S
View 3
Standard Transmission Mode
High Density Transmission Mode
Frequency Group
Channel
TV band for selected frequency
AES3 Output Selected
Selected Home Screen View
Scroll Up for More Choices
Scroll Down for More Choices
Scroll Right for More Choices
Scroll Left for More Choices
Network Connection Present tor Other Shure Devices or WWB
Power Switch Locked
Front Panel Controls Locked
Indicates ShowLink control active between the receiver and the linked
transmitter
Combining Frequency Diversity Enabled
Selection Frequency Diversity Enabled
Shure Incorporated
View 4
5/21
