Shure P3RA User Manual

Professional wireless bodypack receiver
Hide thumbs Also See for P3RA:
Table of Contents

Advertisement

Quick Links

P3RA
Professional Wireless Bodypack Receiver
Shure online user guide for P3RA bodypack receiver.
Version: 2.2 (2021-F)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P3RA and is the answer not in the manual?

Questions and answers

Related Manuals for Shure P3RA

Summary of Contents for Shure P3RA

  • Page 1 P3RA Professional Wireless Bodypack Receiver Shure online user guide for P3RA bodypack receiver. Version: 2.2 (2021-F)

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS WARNING Shure SB900A Rechargeable Battery SAFETY PRECAUTIONS Single Bay Charger Multiple Bay Chargers General Description Important Tips for Care and Storage of Shure Recharge­ able Batteries P3RA Bodypack Battery Life Audio Settings Specifications Utilities Optional Accessories and Replacement Parts...

  • Page 3: P3Ra Professional Wireless Bodypack Receiver

    Shure Incorporated P3RA Professional Wireless Bodypack Receiver IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions.

  • Page 4: Warning

    Do not short circuit; may cause burns or catch fire • Do not charge or use battery packs other than Shure rechargeable batteries • Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.

  • Page 5: General Description

    For more information on using the P3RA with the PSM300 system, refer to the PSM300 user guide (included with the transmit­ ter and available at shure.com).

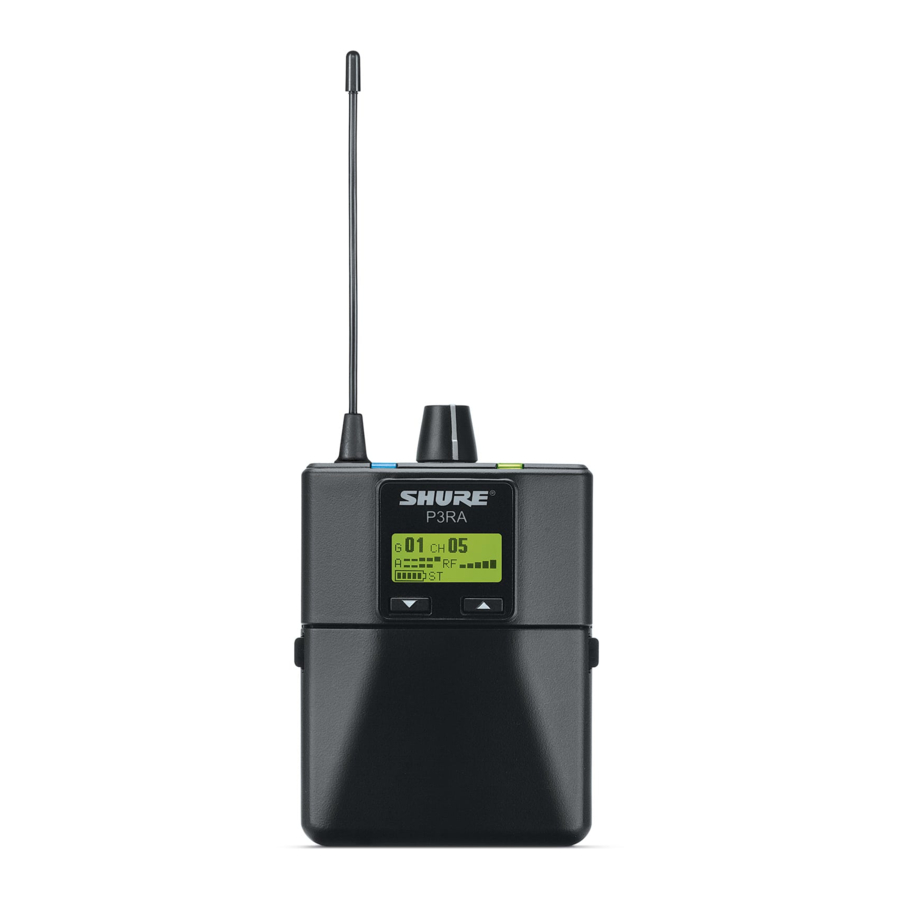

  • Page 6: P3Ra Bodypack

    Shure Incorporated P3RA Bodypack ① Antenna Receives signal from P3T transmitter ② RF Indicator Illuminates when the bodypack is receiving a signal from the transmitter ③ Volume Knob / Power Switch Turn to power on/off and adjust headphone volume ④ Battery LED...

  • Page 7: Audio Settings

    ⑪ Scan Button Press to perform an RF scan ⑫ Battery Compartment Uses a Shure SB900A rechargeable battery or two AA batteries ⑬ Removable AA Adapter Remove to use with a Shure SB900A rechargeable battery Note: To remove, open the door and slide the adapter out. To reinstall, press the adapter into place—there is an audible click when seated.

  • Page 8: Utilities

    Shure Incorporated Utilities CONTRAST Customize the display screen contrast by selecting a setting between low and high Locks all controls except the volume knob to prevent accidental changes to settings Lock: Select UTILITIES > LOCK PANEL LOCK PANEL Unlock: Press the exit button and select OFF when the lock setting screen appears. Press enter to confirm.

  • Page 9: Mixmode

    Shure Incorporated Adjusting Balance To adjust the left/right balance, select AUDIO > BAL ST. Use the ▲▼ buttons to change the setting. MixMode To operate in MixMode, enter the menu and select AUDIO > MODE > MIXMODE. In MixMode, the blend between two monitoring mixes (an instrumental mix and a vocal mix, for example) is adjustable. The sig­...

  • Page 10: Shure Sb900A Rechargeable Battery

    Shure SB900A Rechargeable Battery Shure SB900A lithium­ion batteries offer a rechargeable option for powering the bodypack. Batteries quickly charge to 50% ca­ pacity in one hour and reach full charge within three hours.

  • Page 11: Single Bay Charger

    Shure Incorporated Caution: Only charge Shure rechargeable batteries with a Shure battery charger. Single Bay Charger The SBC-100 single bay charger offers a compact charging solution. Plug the charger into an AC power source or USB port. Insert a battery into the charging bay.

  • Page 12: Important Tips For Care And Storage Of Shure Rechargeable Batteries

    Fault: check connections and battery No battery in bay Important Tips for Care and Storage of Shure Rechargeable Batteries Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime. • Always store batteries and bodypacks at room temperature •...

  • Page 13: Specifications

    Shure Incorporated Amber 1:05 to 0:30 1:25 to 0:40 < 0:30 < 0:40 Total Battery Life 5:30 7:00 ™ Note: Battery life using Energizer brand AA Alkaline batteries and the following conditions: • Receiver audio set to EQ = OFF, V LIMIT = OFF •...

  • Page 14: Optional Accessories And Replacement Parts

    99 x 66 x 23 mm H x W x D Battery Life continuous use AA batteries 5.5 hours SB900A 7 hours Operating Temperature -18°C to +63°C Optional Accessories and Replacement Parts Shure Lithium-Ion Rechargeable Battery SB900A AA battery adapter 65A15224 14/16...

  • Page 15: Certifications

    This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. Hereby, Shure Incorporated declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.shure.com/europe/compliance...
  • Page 16 Shure Incorporated L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : L’appareil ne doit pas produire de brouillage;...
