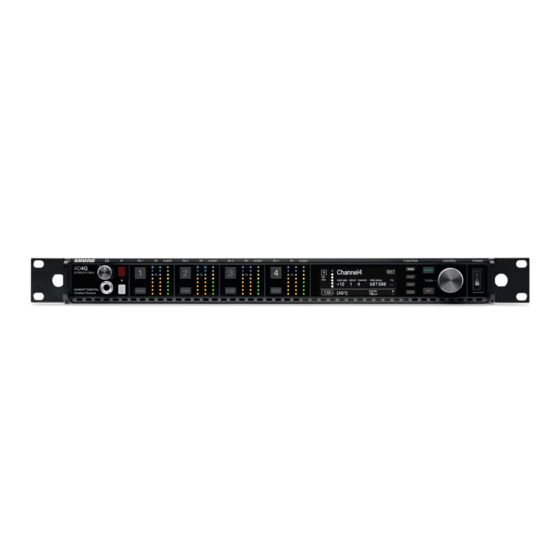

Digital quad receiver
Hide thumbs Also See for AD4Q:

Advertisement

Quick Links

Download this manual

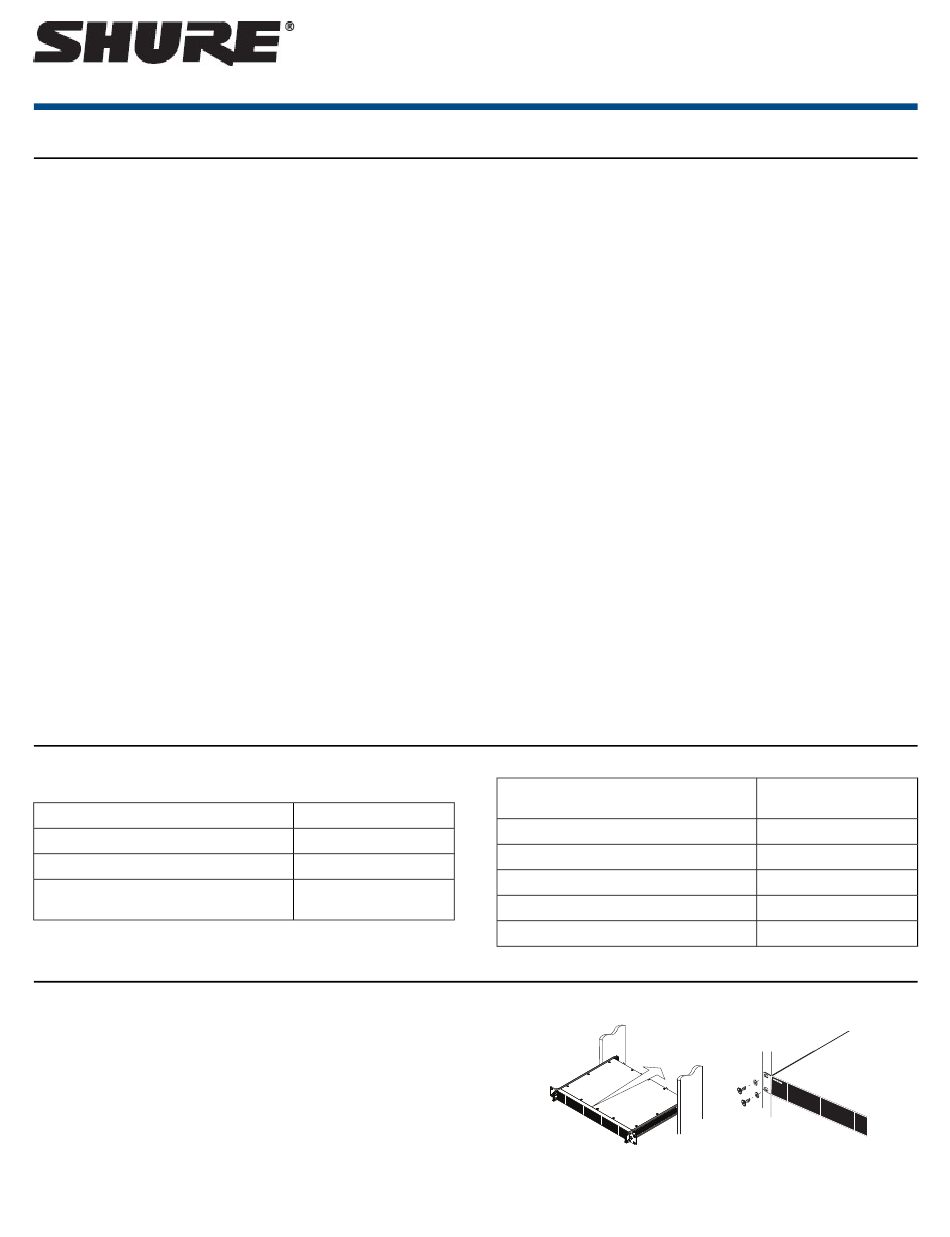

AD4Q Axient Digital Quad Receiver
The AD4Q Axient Digital Quad Receiver sets a new standard in transparent
digital audio and maximum spectral efficiency. Groundbreaking performance
features include wide tuning, low latency, High Density (HD) mode, and
Quadversity™ , ensuring solid performance in the most challenging RF envi-
ronments. Networked control, AES3 + Dante output, and signal routing options
bring a new level of management and flexibility to your entire workflow.
Compatible with all Axient Digital transmitters.
Features
Audio
•
60 dB of gain adjustment offers compatibility with a wide range of input
sources
•
Dante™ networking for quick and easy channel management
•
Dante Browse feature for headphone monitoring of all Dante channels,
including third party components
•
AES 256 encryption to protect audio channels
•
Automatic limiter function protects against signal clipping, allowing for
higher gain settings and preventing unexpected signal peaks
•
Front panel connection for headphones with adjustable volume
I/O
•
Four transformer-balanced XLR outputs (outputs 3 and 4 switchable
AES3 digital)
•
Four transformer-balanced 1/4'' outputs
•
Two Dante-enabled Ethernet ports, Two network control Ethernet ports
with PoE
⁃
Split-Redundant mode: two ports of Ethernet, two ports of Dante
⁃
Switched mode: four ports of Ethernet, Four ports of Dante
Included Components
The following components are included with the receiver:
Hardware Kit
Bulkhead Adapter, BNC
1/2 Wave Wideband Antenna (2)
BNC-BNC Coaxial RF Cable for Bulkhead
Mounting (short)
Mounting Instructions
This component is designed to fit into an audio rack.
Warning: To prevent injury this apparatus must be securely attached to the
rack.
©2017 Shure Incorporated
•
•
•
RF
•
•
•
•
•
•
•
•
•
•
•
Network Control
•
•
•
•
90XN1371
95A8994
Varies by region
95B9023
Locking AC power connection
AC power cascade to additional components
Optional DC module available to support redundant power
True digital diversity reception per channel
Quadversity mode for enhanced coverage
Up to 210 MHz of tuning range
Channel Quality meter displays signal-to-noise ratio of RF signal
Frequency diversity with selection or combining modes for transmitters
Antenna cascade for one additional receiver
Preprogrammed group and channel maps with options to create custom
groups
Search for open frequencies via receiver using group and channel scan
Perform full bandwidth scan for frequency coordination via Wireless
Workbench
Register up to eight transmitters to one receiver channel
High Density transmission mode enables up to 47 active transmitters in
one 6 MHz TV channel (up to 63 in one 8 MHz TV channel)
®
Wireless Workbench
control software
ShurePlus™ Channels mobile device control
Console integration
Control systems support
BNC-BNC Coaxial RF Cable for Bulkhead
Mounting (long)
Coaxial RF Cascade Cable
AC Power Cable, VLock
AC Power Jumper Cable
Ethernet Cable 3 ft.
Ethernet Jumper Cable
AD4Q
Digital Quad Receiver
95C9023
95N2035
Varies by region
Varies by region
95A33402
95B33402
1/21

Advertisement

loading
Need help?

Need help?

Do you have a question about the AD4Q and is the answer not in the manual?

Questions and answers

Related Manuals for Shure AD4Q

Summary of Contents for Shure AD4Q

  • Page 1 AD4Q Digital Quad Receiver AD4Q Axient Digital Quad Receiver The AD4Q Axient Digital Quad Receiver sets a new standard in transparent • Locking AC power connection digital audio and maximum spectral efficiency. Groundbreaking performance • AC power cascade to additional components features include wide tuning, low latency, High Density (HD) mode, and •...
  • Page 2 AD4Q Digital Quad Receiver Shure Incorporated Hardware Receiver Front Panel 13 14 RX 1 AUDIO RX 2 AUDIO RX 3 AUDIO RX 4 AUDIO NAVIGATE POWER CONTROL AD4Q ENTER PUSH EXIT Axient Digital SYNC SYNC SYNC SYNC Wireless Receiver ① Headphone Volume Knob Controls headphone volume for the selected channel.
  • Page 3 AD4Q Digital Quad Receiver Shure Incorporated ⑮ Control Wheel • Push to enter a menu • Push to select a channel or menu item • Turn to scroll through menu items or to edit a parameter value ⑯ Power Switch Powers the unit on or off.
  • Page 4 AD4Q Digital Quad Receiver Shure Incorporated ⑪ Coaxial inputs from Antenna A and Antenna B RF Connection for Antenna A and Antenna B. ⑫ RF Cascade Connectors C and D Passes the RF signal from Antenna A and Antenna B to one additional receiver. In Quadversity mode, use these connectors for additional antenna inputs.
  • Page 5 Scroll Down for More Choices Scroll Right for More Choices Scroll Left for More Choices Network Connection Present to Other Shure Devices or WWB Power Switch Locked Front Panel Controls Locked Indicates ShowLink control active between the receiver and the linked...
  • Page 6 AD4Q Digital Quad Receiver Shure Incorporated Encryption Enabled Access Control Enabled Device Configuration Menu and Parameters Use the following menu items and parameter settings to configure the receiver at the device level. Tip: Use the ENTER button to save changes or press EXIT to cancel without saving.
  • Page 7 Configure Ethernet ports and IP settings. Access View the status of Access Control (Enabled or Disabled). Use Wireless Workbench or other Shure control software to enable or disable Access Control. Network Browser Use to discover Dante devices on your network.
  • Page 8 AD4Q Digital Quad Receiver Shure Incorporated Display Brightness Adjust the brightness of the display. Invert Inverts the color of the display. Display Sleep Offers options to turn off display and front panel illumination after 10, 30, or 60 seconds. Tip: Press any front panel control to interrupt Display Sleep.
  • Page 9 AD4Q Digital Quad Receiver Shure Incorporated Channel Menu Map Gain/Mute Switch Status Audio System Gain Tone Generator Meter Overload Hold Group Channel Radio Frequency Channel Name Find Next Channel Scan Find Best Group Scan Start Sync Transmitters(s) Transmitter Slots Unlink...
  • Page 10 AD4Q Digital Quad Receiver Shure Incorporated Radio G: (Group) Assign a frequency group. C: (Channel) Assign a channel. Frequency Manually select a frequency. Displays the TV band for the selected frequency. Channel Name Channel Name Use the control wheel to assign or edit the channel name.
  • Page 11 AD4Q Digital Quad Receiver Shure Incorporated 3. Power on the transmitter. 2. Press Start to scan the group. 4. Press the SYNC button on the receiver. 3. When the scan is complete, the number of frequencies found are shown on the display.
  • Page 12 AD4Q Digital Quad Receiver Shure Incorporated Assigning Transmitters to Transmitter Slots From the Interference Management menu, choose one of the following op- tions: Each receiver channel contains eight transmitter slots to control the RF signals • Allow: The receiver will pass audio from the unregistered transmitter passed by the receiver.
  • Page 13 AD4Q Digital Quad Receiver Shure Incorporated To turn off the antenna bias: 2. Choose one of the following frequency diversity modes: ⁃ Combining: For use with a single ADX2FD handheld transmitter 1. From the Device Configuration menu: Device RF>Antenna Bias ⁃...
  • Page 14 3. Use the control wheel to change the mode. 4. Press ENTER to reboot the receiver and change the mode. Network Control Software Receivers can be controlled by Shure Control (Wireless Workbench) for re- IP Address Configuration mote management and monitoring. The Dante Controller manages digital An IP address must be assigned to each device in the network to ensure audio routing.
  • Page 15 AD4Q Digital Quad Receiver Shure Incorporated Network Browser Network Troubleshooting The network browser allows you to discover other devices connected to your • Use only one DHCP server per network network. You can view information about the discovered devices, including •...
  • Page 16 Installing the latest version of firmware updates the receiver to incorporate additional features and enhancements. New versions of the firmware can be uploaded and installed using the Firmware Update Manager tool available in Shure Wireless Workbench 6 (WWB6) software. Software is available for download from http://www.shure.com. Firmware Versioning When updating receiver firmware, update transmitters to the same firmware version to ensure consistent operation.
  • Page 17 AD4Q Digital Quad Receiver Shure Incorporated channel may be experiencing interference, and you should try a different Issue See Solution... channel. Power, Cables, Radio The red RF LED indicates RF overload. Overloads have the potential to No sound Frequency, or Encryption cause interference in multiple system installations.
  • Page 18 AD4Q Digital Quad Receiver Shure Incorporated Working Range 100 m (330 ft) RF Tuning Step Size 25 kHz, varies by region Image Rejection >70 dB, typical RF Sensitivity −98 dBm at 10-5 BER Latency Analog Output 2.08 ms 2.96 ms Audio Frequency Response 20 –...
  • Page 19 AD4Q Digital Quad Receiver Shure Incorporated Configuration Transformer Coupled Balanced (1=ground, 2=audio +, 3=audio −) Transformer Coupled Balanced (Tip = Audio +, Ring = Audio -, Sleeve = Ground) Impedance 100 Ω, Typical, XLR Line Out Full Scale Output (200K Ωload)
  • Page 20 AD4Q Digital Quad Receiver Shure Incorporated Configuration Unbalanced, passive Impedance 50 Ω Insertion Loss 0 dB, typical RF Input Spurious Rejection >80 dB, typical Connector Type Impedance 50 Ω Bias Voltage 12 to 13.5 V DC, 150 mA maximum, per antenna...
  • Page 21 Note: **with a gap between 608 to 614 MHz and a gap between 616 to 653 MHz. Note: ***power delivered to the antenna port. Note: †operation mode varies according to region. In Brazil, High Density mode is used. Shure Incorporated 5800 West Touhy Avenue Niles, IL 60714-4608 USA Phone: +1-847-600-2000 Email: info@shure.com 21/21...
