Receiver Back Panel - Shure AD4D Axient Manual

AD4D AD4D Dual Channel Receiver
⑮ Control Wheel
• Push to enter a menu
• Push to select a channel or menu item
• Turn to scroll through menu items or to edit a parameter value
⑯ Power Switch
Powers the unit on or off.

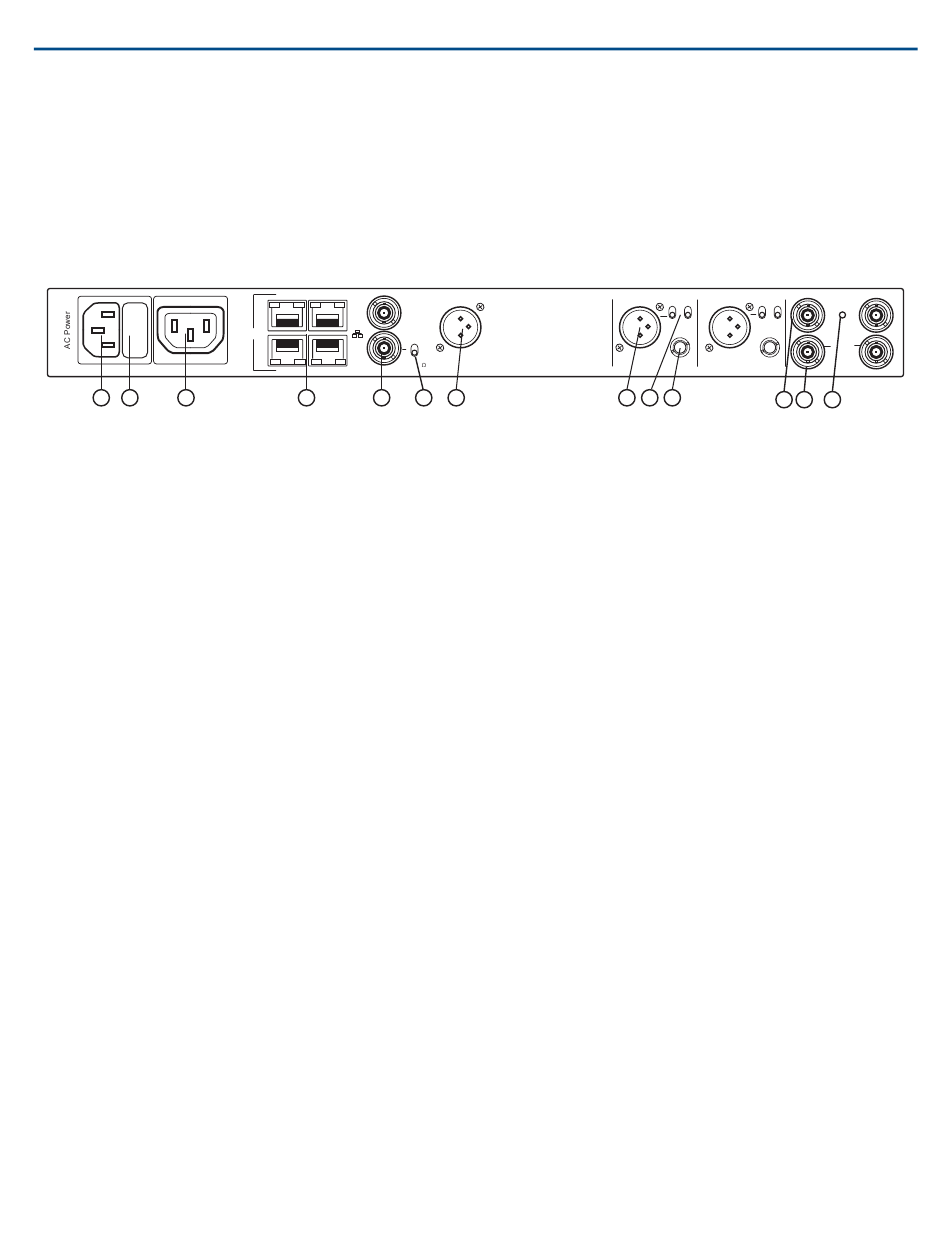

Receiver Back Panel

1 2 3
① AC Power Input
IEC locking connector, 100 - 240 V AC.
② AC Power Protection Fuse
Protects the AC power cascade from overloads.
③ AC Power Cascade (locking)
Use IEC extension cables to loop power through multiple devices.
④ Ethernet Ports
Four Ethernet ports carry the following signals:
• ctrl 1: Network control
• ctrl 2: Network control
• Dante Primary: Dante digital audio
• Dante Secondary: Dante digital audio
Network Status (green) LEDs:
• Off: no network link
• On: network link active
• Flashing: network link active, rate corresponds to traffic volume
Network Speed (amber) LEDs:
• Off = 10/100 Mbps
• On = 1 Gbps
⑤ Word Clock Input and Thru Ports
• Input: Connect to an external word clock to resolve the AES3 digital output
• Thru: Passes word clock signal to additional components
⑥ Word Clock Termination Switch
• Set to Thru when passing signal to additional components
• Set to Term 75 when Thru connection is not used
⑦ AES3 Digital Audio Output
Connector for AES3 Digital Audio.
⑧ Balanced XLR Audio Output (one per channel)
• Transformer Balanced
• Connect to a mic or line level input.
⑨ Mic/Line Switch and Ground Lift Switch (one per channel)
• Mic/Line: Applies a 30 dB pad in mic position.
• Ground Lift: Lifts the ground from pin 1 of the XLR connector and the sleeve of the ¼" Audio Output
⑩ ¼" Audio Output (one per channel)
Transformer Balanced
2017/08/03
ctrl 1 Dante 1
in
PoE
thru
Term 75
word
ctrl 2 Dante 2
clock
4 5 6
AES3 1&2
7
line lift line lift
mic gnd mic gnd
2 1
output output
-10 dB -10 dB
8 9 10
11 12
Shure Incorporated
B A
12 V DC out
150mA
D C
cascade
13
