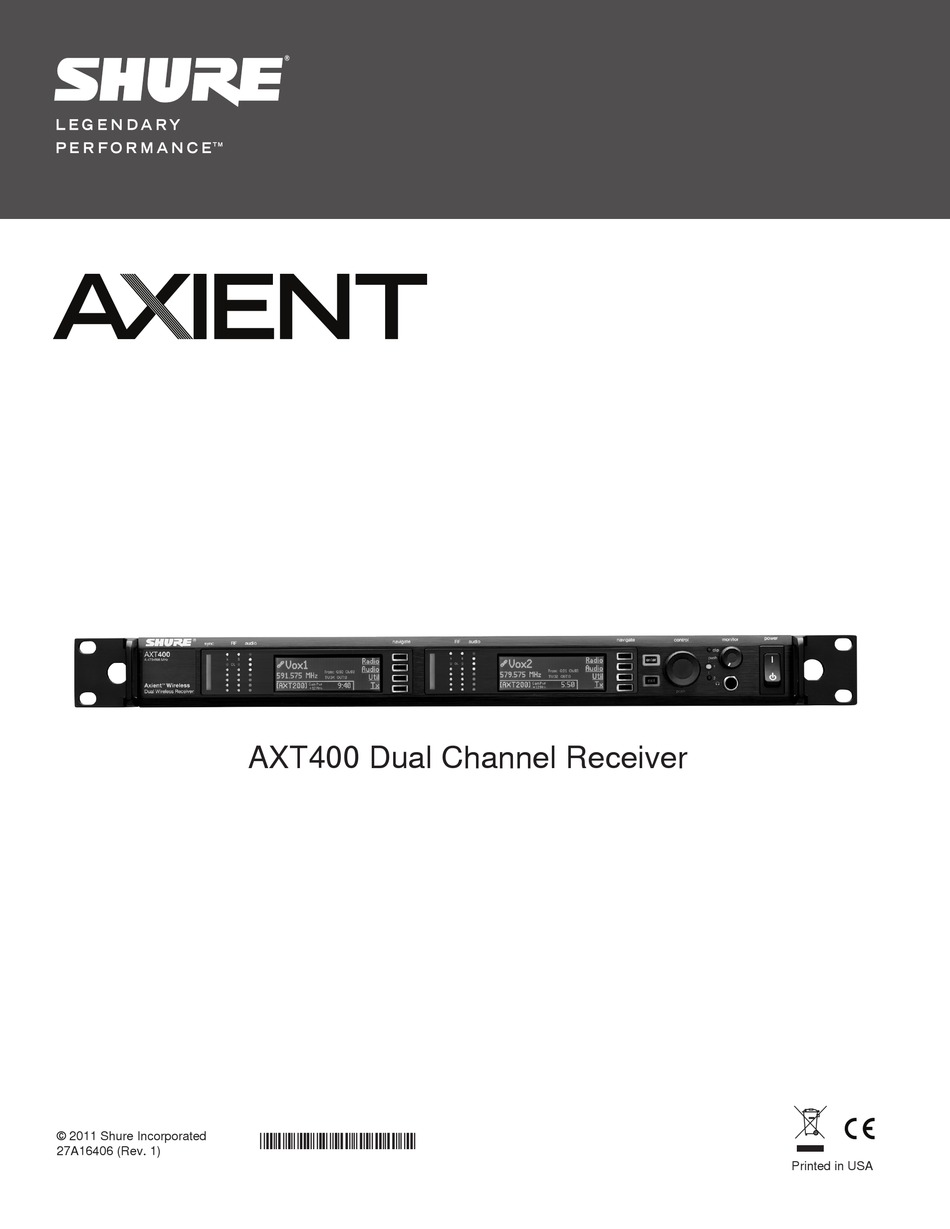

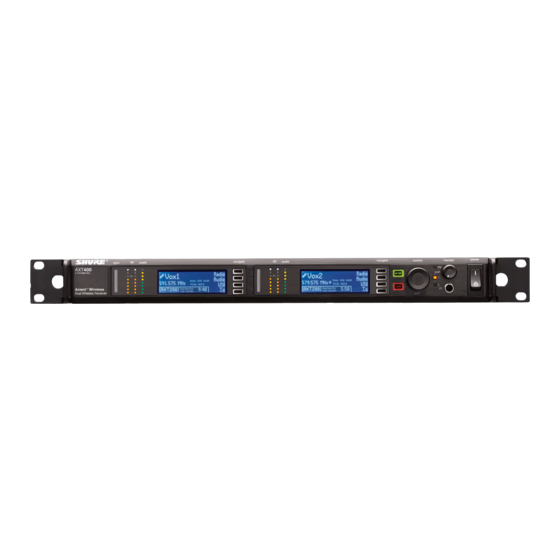

- Page 1 AXT400 Dual Channel Receiver © 2011 Shure Incorporated *27A16406* 27A16406 (Rev. 1) Printed in USA...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 14. REFER all servicing to qualified service personnel. Servicing is required when the ap- paratus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been 1. READ these instructions. exposed to rain or moisture, does not operate normally, or has been dropped. 2. KEEP these instructions. 15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with 3. HEED all warnings. liquids, such as vases, on the apparatus. 4. FOLLOW all instructions. 16. The MAINS plug or an appliance coupler shall remain readily operable. 5. DO NOT use this apparatus near water. 17. The airborne noise of the Apparatus does not exceed 70dB (A). 6. CLEAN ONLY with dry cloth. 18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s protective earthing connection. instructions. 19. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or 8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other moisture. apparatus (including amplifiers) that produce heat. 20. Do not attempt to modify this product. Doing so could result in personal injury and/or 9. DO NOT defeat the safety purpose of the polarized or groundingtype plug. A polarized product failure. -
Page 3: Included Components
228 MHz of wideband tuning and supports Axient and UHF-R series transmitters. Connectivity options include transformer balanced audio outputs, AES3 digital audio out- put, RF Cascade ports and dual Ethernet ports for networked control and monitoring via Shure Wireless Workbench 6 software. -
Page 4: Front Panel
Front Panel power navigate control monitor navigate audio sync audio clip AXT400 push A 470-698 MHz enter exit Dual Wireless Receiver push ① Sync - Infrared (IR) Port ⑤ LCD display ⑫ Monitor volume knob Infrared (IR) port. For sending parameter presets Each channel has an LCD display for viewing Adjusts monitor volume. -
Page 5: Screen Icons
Screen Icons Home Screen Screen icons indicate the status of advanced features and provide details of receiver The home menu displays a summary of receiver parameters and the top-level menu settings. choices. When a transmitter is received, its key settings are displayed. Network Asterisk Indicates connectivity with other... -
Page 6: Troubleshooting
Networking Receivers The receiver uses an Ethernet connection to network with other components. For automatic network configuration, use a DHCP enabled Ethernet switch such as the Shure AXT620 or an Ethernet router with DHCP service. Use multiple Ethernet switches to extend the network for larger installations. -
Page 7: Interference Detection
Interference Detection Dual Digital Signal Processors (DSP) in the receiver analyze the RF signal for signs of interference that can degrade the audio signal. When interference is present, the receiver screen turns red and displays one of the following warning messages: Interference Alert Displayed on the home screen when low-level interference is detected. -
Page 8: System Gain
Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are developed to incorporate additional features and enhancements. To take advantage of design improvements, new versions of the firmware can be uploaded and installed using the Firmware Update Manager tool available in WWB6 software. Firmware is available for download from http://www.shure.com/wwb. -
Page 9: Analog Audio Output
RF Input Analog Audio Output Connector Type Configuration Monitor: Unbalanced mono, 1/4 in. (will drive stereo phones) Configuration Unbalanced, active 6.35 mm Transformer Coupled Balanced (1/4”): Impedance 50 Ω XLR: Transformer Coupled Balanced Bias Voltage 12 V DC, 150 mA (300 mA maximum) Impedance Monitor: 50 Ω... - Page 10 Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance...
- Page 11 United States, Canada, Latin Asia, Pacific: Europe, Middle East, Africa: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
