Shure AD4D - Dual Channel Receiver Manual

Introduction

The AD4D Axient Digital two-channel wireless receiver sets a new standard in transparent digital audio and maximum spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and high density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control, AES3, AES67, and Dante output, and signal routing options bring a new level of management and flexibility to your entire workflow. Compatible with all Axient Digital transmitters.

Features

Audio

• 60 dB of gain adjustment offers compatibility with a wide range of input sources
• Dante^™ networking for quick and easy channel management
• Dante Browse feature for headphone monitoring of all Dante channels, including third party components
• AES 256 encryption to protect audio channels
• Automatic limiter function protects against signal clipping, allowing for higher gain settings and preventing unexpected signal peaks
• Front panel connection for headphones with adjustable volume

I/O

• 2 transformer-balanced XLR outputs
• AES3 Digital output
• 2 transformer-balanced 1/4'' outputs
• 2 Dante-enabled Ethernet ports, 2 network control Ethernet ports with PoE
  • Split-Redundant mode: 2 ports of Ethernet, 2 ports of Dante
  • Switched mode: 4 ports of Ethernet, 4 ports of Dante

Note: The receiver can only power 1 PoE device at a time.

• Locking AC power connection
• AC power cascade to additional components
• Optional DC module available to support redundant power

RF

• True digital diversity reception per channel
• Up to 210 MHz of tuning range
• Frequency diversity with selection (bodypack) or combining (handheld)
• Channel Quality meter displays signal-to-noise ratio of RF signal
• Antenna cascade for 1 additional receiver
• Preprogrammed group and channel maps with options for custom groups
• Search for open frequencies via receiver using group and channel scan
• Perform full bandwidth scan for frequency coordination via Wireless Workbench
• Register up to 8 transmitters to one receiver channel
• High Density transmission mode enables up to 47 active transmitters in one 6 MHz TV channel (up to 63 in one 8 MHz TV channel)

Network Control

• Wireless Workbench^™ control software
• ShurePlus^™ Channels mobile device control
• Console integration
• Control systems support

Included Components

The following components are included with the receiver:

Hardware Kit	90XN1371
Bulkhead Adapter, BNC	95A8994
1/2 Wave Wideband Antenna (2)	Varies by region
BNC-BNC Coaxial RF Cable for Bulkhead Mounting (short)	95B9023
BNC-BNC Coaxial RF Cable for Bulkhead Mounting (long)	95C9023
Coaxial RF Cascade Cable	95N2035
AC Power Cable, VLock	Varies by region
AC Power Jumper Cable	Varies by region
Ethernet Cable 3 ft.	95A33402
Ethernet Jumper Cable	95B33402

Mounting Instructions

This component is designed to fit into an audio rack.

To prevent injury this apparatus must be securely attached to the rack.

Hardware

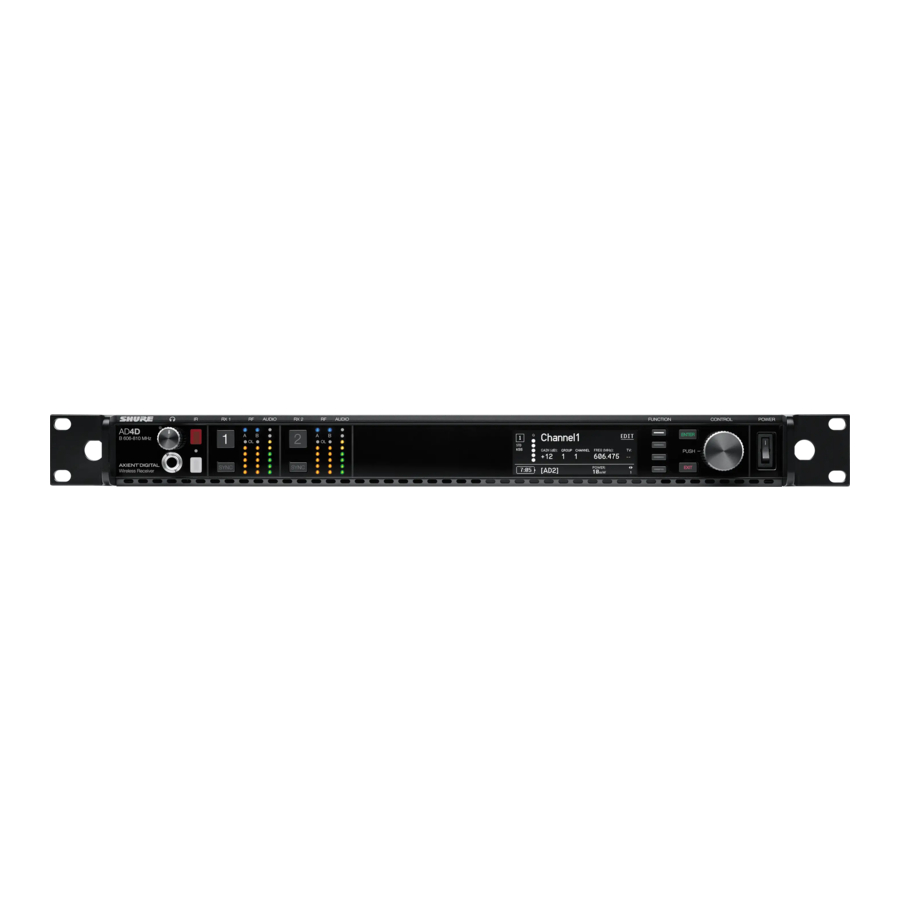

Receiver Front Panel

1. Headphone Volume Knob
   Controls headphone volume for the selected channel. Clip indicator warns of signal overload or limiter engagement.
   Press knob to access Dante options and headphone settings.
2. Monitor Jack
   ¼" (6.3 mm) output jack.
3. Infrared (IR) Sync LED
   The LED will turn red when the transmitter and receiver are correctly aligned for IR sync.
4. Infrared (IR) Sync Window
   Align with IR window on transmitter to sync.
5. Ambient Light Sensor
   Automatically detects external lighting conditions.
6. Channel Select Button
   Press to select channel.
   The channel select button turns red to indicate interference:
   • Dim red = Channel is not selected, experiencing interference
   • Bright red = Channel is selected, experiencing interference
7. Sync Button
   Press to sync when transmitter and receiver are aligned. The IR Sync LED changes to red to indicate correct alignment.
8. Antenna Status LEDs
   Indicates status for both antennas:
   • Blue = Normal RF signal between the receiver and transmitter
   • Red = Interference detected
   • Off = No RF connection between the receiver and transmitter
     Note: The receiver will not output audio unless one blue LED is illuminated.
9. RF Signal Strength LEDs
   Indicate the RF signal strength from the transmitter:
   • Orange = Normal (-90 to -70 dBm in 5 dBm increments)
   • Red = Overload (greater than -20 dBm)
10. Audio LEDs
    Red, yellow, and green LEDs indicate average and peak audio levels.
    The LED will turn red when the limiter is engaged.
11. Display
    Displays information for the selected channel.
12. Function Buttons
    Press to access editing and configuration options. The buttons are named F1, F2, F3, F4 (from top to bottom) and illuminate to when editing options are available.
13. ENTER Button
    Press to save changes.
14. EXIT Button
    Press to cancel changes and return to main menus.
15. Control Wheel
    • Push to enter a menu
    • Push to select a channel or menu item
    • Turn to scroll through menu items or to edit a parameter value
16. Power Switch
    Powers the unit on or off.

Receiver Back Panel

1. AC Power Input
   IEC locking connector, 100 - 240 V AC.
2. AC Power Protection Fuse
   Protects the AC power cascade from overloads.
3. AC Power Cascade (locking)
   Use IEC extension cables to loop power through multiple devices.
4. Ethernet Ports
   Four Ethernet ports carry the following signals:
   • ctrl 1: Network control
   • ctrl 2: Network control
   • Dante Primary: Dante digital audio
   • Dante Secondary: Dante digital audio
     Network Status (green) LEDs:
   • Off: no network link
   • On: network link active
   • Flashing: network link active, rate corresponds to traffic volume
     Network Speed (amber) LEDs:
   • Off = 10/100 Mbps
   • On = 1 Gbps
5. Word Clock Input and Thru Ports
   • Input: Connect to an external word clock to resolve the AES3 digital output
   • Thru: Passes word clock signal to additional components
6. Word Clock Termination Switch
   • Set to Thru when passing signal to additional components
   • Set to Term 75Ω when Thru connection is not used
7. AES3 Digital Audio Output
   Connector for AES3 Digital Audio
8. Balanced XLR Audio Output (one per channel)
   • Transformer Balanced
   • Connect to a mic or line level input.
9. Mic/Line Switch and Ground Lift Switch (one per channel)
   • Mic/Line: Applies a 30 dB pad in mic position.
   • Ground Lift: Lifts the ground from pin 1 of the XLR connector and the sleeve of the ¼" Audio Output
10. ¼" Audio Output (one per channel)
    Transformer Balanced
11. Coaxial inputs from Antenna A and Antenna B
    RF Connection for Antenna A and Antenna B.
12. RF Cascade Connectors C and D
    Passes the RF signal from Antenna A and Antenna B to one additional receiver.
13. Antenna Bias Indicator LED
    • Green: Antenna bias enabled
    • Red: Antenna fault
    • Off: Antenna bias disabled

Menus and Configuration

The receiver uses a two-tier menu structure to support multiple channels in a single rack space:

• Device Configuration Menu: Items in this menu affect the overall performance of the receiver and apply to all channels globally
• Channel Configuration Menus: Each channel has its own menu allowing for independent channel configuration

Accessing the Device Configuration Menu or Channel Menus

From the home screen, use the following methods to access the Device Configuration menu or to enter one of the channel menus.

• To enter the Device Configuration menu, press the control wheel
• To enter a Channel menu, select the channel number, and then press the control wheel to access the channel menu

Home Screen

View 1

View 2

View 3

View 4

From the home screen you can view the status of all four channels.
You can rotate the control wheel to choose different views of the information shown on the home screen, including channel name, group and channel, quality meter, gain, and frequency.

Screen Icons

The following screen icons indicate receiver modes or settings:

Icon	Meaning
STD	Standard transmission mode
HD	High density transmission mode
G:	Frequency group
C:	Channel
TV:	TV band for selected frequency
AES3	AES3 output selected
View	Selected home screen view
	Scroll up for more choices
	Scroll down for more choices
	Scroll right for more choices
	Scroll left for more choices
	Network connection present to other Shure devices or Wire less Workbench
	Power switch locked
	Front panel controls locked
	Indicates that a transmitter is linked to the receiver channel
	Indicates ShowLink control active between the receiver and the linked transmitter
	Indicates the controls of a linked transmitter are locked.
	Indicates that the linked transmitter's RF signal is on
	Indicates an alert or warning
	Combining Frequency Diversity enabled
	Selection Frequency Diversity enabled
	Encryption enabled
	Access control enabled
	Power source AC, DC power not available
	Power source AC, DC power available
	Power source DC

Device Configuration Menu and Parameters

Use the following menu items and parameter settings to configure the receiver at the device level.

Tip: Use the ENTER button to save changes or press EXIT to cancel without saving.

Device Configuration Menu Screen

From the home screen, press the control wheel to access the Device Configuration menu.

Device Configuration Menu Map

AD4D Device Configuration Parameters

Device RF

RF Band
Select the tuning band for the receiver.

Encryption
Enables encryption of the RF signal.

Transmission Mode
Select Standard or High Density transmitter spacing.

Custom Groups
Configure, edit, or load custom frequency groups.

Antenna Bias
Enable antenna bias for active RF antennas.

TV Format
Adjust TV bandwidth to match regional standards.

Device Audio

AES3 Audio
Configure AES3 audio parameters.

Dante Names
View, edit, and copy names for networked Dante components.

Dante Lock Status
See the status of the Dante device lock.

Dante Domain Manager
See the status of Dante Domain Manager settings.

Device ID

Device ID
Use the control wheel to assign or edit an ID.

Network Configuration

Configure IP, network, and Dante settings.

Setup
Configure Ethernet ports and IP settings.

Access
View the status of Access Control (Enabled or Disabled). Use Wireless Workbench or other Shure control software to enable or disable Access Control.

Network Browser

Use the Network Browser utility to view Shure devices on the network.

Show
Display all devices on the network.

Flash All
Flash the front panel LED of all devices on the network to verify connectivity.

F.W. Version
Displays the installed firmware version of the selected network component.

Locks

Power Switch

• Locked
• Unlocked

Front Panel

• Locked
• Unlocked

Fan

Fan Mode

• Auto: The fan will automatically turn on if the receiver temperature rises
• On: The fan will run continuously to offer maximum cooling in warm environments

Temperature
Displays internal receiver temperature.

Display

Brightness
Adjust the brightness of the display.

Invert
Inverts the color of the display.

Display Sleep
Offers options to turn off display and front panel illumination after 10, 30, or 60 seconds.

Tip:
Press any front panel control to interrupt Display Sleep.

DC Module Status

Displays the operational status of the DC Module (if installed).

Tx Firmware Update

Align transmitter IR window and select to update transmitter firmware.

User Presets

Create and manage user presets.

• Restore User Preset: Load existing preset
• Save User Preset: Save the current settings as a preset
• Delete User Preset: Delete a preset

Factory Reset

Restores all receiver parameters to factory settings.

About

Provides a detailed list of build specifications and vital statistics for the receiver.

Channel Menu

Use the following menus and parameters to configure the receiver channels.

Tip: Use the channel selection buttons to navigate between adjacent channels when configuring menu parameters. Use the ENTER button to save changes or press EXIT to cancel without saving.

Channel Menu Home Screen

The Channel Menu Home Screen allows you to view the settings for a selected channel and details of transmitters linked to that channel. Select a channel number to access the menu.
You can adjust gain, group, channel, and frequency by using the EDIT function button.

Channel Menu

Use the Channel Menu to select and edit menu parameters. Press the Control Wheel to access the Channel Menu from the Channel Menu Home Screen.

Channel Menu Map

Channel Menu Parameters

New Frequency

Press ENTER to deploy a new frequency when using a spectrum manager as a frequency server.

Note: This menu option will not be shown if you don't have a frequency server assigned to the receiver.

Audio

Gain/Mute
Adjusts the receiver gain.

• Gain: Adjust the gain in 1 dB increments
• Output: Select On or Mute for the receiver audio output

Switch Status
Displays the switch position of the ground lift and level switches.

System Gain
View and calculate all gain stages in the signal chain, including input pads, mic offset, and receiver gain.

Tone Generator
Provides a continuous audio signal tone for testing and troubleshooting.

Meter Overload Hold
Enable Overload Hold to capture signal peaks.

Radio

G: (Group)
Assign a frequency group.

C: (Channel)
Assign a channel.

Frequency
Manually select a frequency.

TV
Displays the TV band for the selected frequency.

Channel Name

Channel Name
Use the control wheel to assign or edit the channel name.

Channel Scan

Finds available channels within the selected group:

• Find Next: Selects the nearest available channel
• Find Best: Selects the channels with the best RF noise floor

Group Scan

Scans the selected group to find all available channels.

Transmitters(s)

Transmitter Slots
Use the control wheel to assign and view transmitter slots.

ACTIVATE (ADX transmitters linked to ShowLink access point)
Choose a transmitter with the control wheel, and then press ACTIVATE pass RF and RF mute all other transmitters.

FLASH (ADX transmitters linked to ShowLink access point)
Flashes the display to of a transmitter linked to the receiver.

UNLINK
Removes a transmitter from the selected slot.

SYNC:
Assigns a transmitter to the selected slot when SYNC is pressed.

Transmitter Details

Displays build details and vital statistics for the selected transmitter.

IR Presets

Select and edit transmitter parameters so they will automatically be set during an IR sync.

Advanced

Interference Management
Select interference detection setting for the channel.

Frequency Diversity
Configure frequency diversity for handheld or bodypack transmitters.

Talk Switch/Output Routing
Set receiver output signal routing options for talk switch control from a transmitter. For more information about using a talk switch with an Axient Digital transmitter, see the talk switch user guide.

Radio Frequency (RF) Settings

Setting the RF Tuning Band

The receiver offers selectable tuning bands to maximize the use of locally available spectrum.

1. From the Device Configuration menu: Device RF > RF Band
2. Press the control wheel to enable editing, and then select an RF band.
3. Press ENTER to save.

Note: After setting the RF band, re-sync any transmitters that are linked to the receiver.

IR Sync

Use IR Sync to form an audio channel between the transmitter and receiver.

Note: The receiver band must match the band of the transmitter.

1. Select a receiver channel.
2. Tune the channel to an available frequency using group scan.
3. Power on the transmitter.
4. Press the SYNC button on the receiver.
5. Align the IR windows until the receiver IR sync LED illuminates red. When complete, Sync Success! appears. The transmitter and receiver are now tuned to the same frequency.

Note:
Any change to the encryption status on the receiver such as enabling/ disabling encryption or requesting a new encryption key, requires a sync to send the settings to the transmitter.

Setting the Frequency Manually

Frequencies can be set manually for each channel if you need to select specific values.

1. Select a channel and navigate to the Radio menu.
2. Use the control wheel to select the FREQ (MHz) parameter.
3. Press the control wheel to enable editing and rotate to change the value.
4. Press ENTER to save changes.

Channel Scan and Group Scan

The receiver can scan individual channels to find available frequencies or scan an entire group to find the most available frequencies.

Before you begin:
Turn off all transmitters for the systems you are setting up. (This prevents them from interfering with the frequency scan.)
Turn on the following potential sources of interference so they are operating as they would be during the presentation or performance (the scan will detect and avoid any interference they generate).

• Other wireless systems or devices
• Computers
• CD players
• Large LED panels
• Effects processors

Channel Scan

Channel scan automatically scans a group to find available frequencies.

1. From a selected channel menu: Channel Scan
2. To begin, use the control wheel to choose the group you'd like to scan.
3. Choose one of the following options:
   • Find Next: Finds the next available frequency within the group
   • Find Best: Finds the best available frequency based on RSSI
4. Press ENTER to confirm your frequency selection.

Group Scan

Group scan automatically finds all available frequencies within a group. Available frequencies can be automatically deployed to receiver channels and other networked components.

1. From a selected channel: Group Scan.
2. Press Start to scan the group.
3. When the scan is complete, the number of frequencies found are shown on the display.
4. Select Deploy to assign frequencies to components on the network.

Requesting a New Frequency from a Spectrum Manager

When you have assigned a Spectrum Manager as a frequency server for the receiver, you can use the New Frequency menu option to quickly change to a clear frequency. The New Frequency option is only available when you have assigned a Spectrum Manager as a frequency server for the receiver.

After a new frequency has been assigned, the frequency of any linked transmitters must be updated manually or by using IR sync.

1. Navigate to a channel menu, and then select New Frequency.
2. Select ENTER to get a new frequency from the Spectrum Manager.

Transmission Modes

The receiver offers two transmission modes to efficiently manage the available spectrum used by the transmitters:

Standard Mode
Standard mode employs channel spacing that allows for the operation of transmitters at various power levels.
Standard mode is ideal for situations where spectrum is not limited or when you need to operate transmitters at higher power levels to increase range.

High Density Mode
High Density mode creates additional bandwidth for more channels in crowded RF environments by transmitting at 2 mW RF power and narrowing the modulation bandwidth.
High Density mode is ideal for applications where many channels are needed in a confined area, transmission distances are short, and the number of available frequencies is limited.

Note: Operation mode varies according to region. In Brazil, High Density mode is used.

Selecting a Transmission Mode

1. From the Device Configuration menu: Device RF > Transmission Mode
2. Press the control wheel to enable editing. Rotate the wheel to select a mode.
3. Press ENTER to save.

Assigning Transmitters to Transmitter Slots

Each receiver channel contains eight transmitter slots to control the RF signals passed by the receiver. Transmitters can be assigned to the channel slots or "registered" with the receiver.

For added protection from interference, the receiver will issue a warning or block signals from any transmitters that aren't registered.

To assign a transmitter to a receiver channel:

1. From the Channel menu: Transmitter(s) > Transmitter Slots
2. Use the control wheel to scroll to an available transmitter slot. If the slot is occupied, syncing will overwrite the existing transmitter.
3. Align the transmitter with the IR sync window and press SYNC.

When the sync is complete, the transmitter will be assigned to the slot. The transmitter will remain assigned to the slot until it is unlinked. To remove a transmitter from a slot, use the control wheel to select the slot, and then press UNLINK.

Tip: For quick access, the slots can be accessed from the channel menu by selecting the F4 function button.

Interference Management

In the event of signal degradation, Interference Management technology provides options to move to a clean, compatible frequency, either manually or automatically.

Respond to an alert by manually selecting a new frequency, or allow the Spectrum Manager or Wireless Workbench to automatically deploy a backup frequency the instant interference is detected.

Tip: To dismiss a interference alert, select the affected channel, and then select Dismiss.

Configuring Interference Management

Interference Management can be configured for each channel individually.

Setting the Detection Mode

The Mode setting determines how the receiver will switch to a clear frequency in the event of interference

1. Select a channel and navigate to: Advanced > Interference Management
2. Choose one of the following modes:
   • Manual: Select a frequency manually when interference occurs
   • Automatic: Allow the receiver to automatically select a new frequency.

Unregistered Transmitter Action

The unregistered transmitter option determines how the receiver reacts to the presence of unregistered transmitters, which can be a potential source of interference.

From the Interference Management menu, choose one of the following options:

• Allow: The receiver will pass audio from the unregistered transmitter
• Warn: The receiver will display a warning when an unregistered transmitter is detected
• Block: The receiver treat the unregistered transmitter as interference and will block the audio

Frequency Server

The frequency server option allows you to assign a networked Spectrum Manager as a server for clear frequencies in the event of interference.

1. From the Interference Management menu, select Freq. Server
2. Press the control wheel to enable editing, and then select a Spectrum Manager from your network.
3. Press ENTER to save.

Channel Quality Meter

The home screen displays a channel quality meter, providing a visual indicator of the signal-to-noise ratio of the RF signal.
When the RF signal is strong with a low level of noise, all five segments of the meter are filled or the number 5 is displayed.

• Meter:

• Number:

  If the noise ratio increases, the fewer segments are displayed or the quality number drops. Low levels of channel quality provide an early warning of potential problems, allowing you to switch to a clear frequency.

Frequency Diversity

Frequency Diversity enables seamless, uninterrupted audio for mission-critical applications. Frequency Diversity works by transmitting the audio on two independent frequencies from an ADX2FD Frequency Diversity handheld transmitter or from two AD/ADX series transmitters.

When operated in Frequency Diversity mode, the receiver uses two frequencies to provide a single channel of audio. If one frequency experiences interference, the audio from the other frequency is used to prevent dropouts or interruption of the audio.
Using Frequency Diversity in conjunction with Interference Detection provides an additional layer of protection for the audio signal.

1. From the channel menu: Advanced > Frequency Diversity.
2. Choose one of the following frequency diversity modes:
   • Combining: For use with a single ADX2FD handheld transmitter

   • Selection: For use with a pair of AD1 or ADX1 series transmitters

3. Press ENTER to save.
4. Perform an IR sync between the receiver and the transmitters.

Antenna Bias

All antenna ports provide a DC bias to power active antennas. Set the DC power to off when using passive (non powered) antennas.

To turn off the antenna bias:

1. From the Device Configuration menu: Device RF > Antenna Bias
2. Press the control wheel to enable editing, and then select Off

Tip: The Antenna Bias screen displays the current draw for each individual antenna and the total current draw for all antennas.

RF Cascade Ports

The receiver has two RF cascade ports on the rear panel to share the RF signal from the antennas with one additional receiver.
Use a shielded coaxial cable to connect the RF cascade ports from the first receiver to the antenna inputs of the second receiver.

The frequency model (A, B, C) must be the same for both receivers.

Firmware

Firmware is embedded software in each component that controls functionality. Installing the latest version of firmware updates the receiver to incorporate additional features and enhancements. New versions of the firmware can be uploaded and installed using the Shure Update Utility tool, which is available from the Shure Update Utility page.

Firmware Versions

When you update receiver firmware, update your transmitters to the same firmware version to ensure consistent operation.
The firmware of all devices has the form of MAJOR.MINOR.PATCH (e.g., 1.2.14). At a minimum, all devices on the network (including transmitters), must have the same MAJOR and MINOR firmware version numbers (e.g., 1.2.x).

Updating the Receiver Firmware

Ensure that receiver power and network connections are maintained during a firmware update. Do not turn off the receiver until the update is complete.

1. Open the Shure Update Utility.
2. Click Check Now to view new versions available for download.
3. Select the updates and click download.
4. Connect the receiver and computer to the same network.
5. Download the latest firmware to the receiver.

Updating the Transmitter Firmware

1. From the Device Configuration menu of the receiver: Tx Firmware Update.
2. Turn on the transmitter and align the IR sync windows on the transmitter and receiver. The red alignment LED will illuminate when alignment is correct.
3. Maintain alignment and press ENTER on the receiver to begin the update.

Alignment must be maintained during the entire update cycle. Percentage of update progress appears on the receiver display. The receiver display will show the message Complete! when finished.

Audio Settings

Adjusting Channel Gain and Audio Output

The gain and audio output can be individually controlled in real time for each channel.
Select a channel and navigate to the Audio menu, and then choose Gain/Mute.

To adjust the gain:

1. Use the control wheel to select the GAIN option.
2. Turn the control wheel to adjust the gain from -18 dB to +42 dB in real time.
3. Press EXIT to finish.

Tip: Adjust the gain while performing a sound check using typical audio input signal levels and monitor the audio meter LEDs. Reduce the gain if the red LED triggers repeatedly.

To control the audio output:

1. Use the control wheel to select the OUTPUT option.
2. Use the control wheel to select On or Mute in real time.
3. Press EXIT to finish.

Tone Generator

The receiver features a built-in tone generator to provide a continuous audio signal which is useful for sound checks and for system troubleshooting. The level and frequency of the tone are adjustable.

Note: The tone generator enters the signal chain before the system gain. The overall system gain will affect the level of the tone.

1. From the Channel menu: Audio > Tone Generator
2. User the control wheel to select a level and frequency for the tone.
3. Press ENTER to save.

Tip: Set the Level to Off to stop the generator.

Headphone Monitoring

The headphone monitoring jack provides options for listening to a selected receiver channel or for accessing and monitoring audio from Dante-enabled devices on your network.
To listen to a receiver channel, select the channel number and use the volume knob to adjust the signal level.

Headphone Monitoring Options

Advanced headphone options allow you to monitor the audio from Dante devices on your network and to adjust the headphone settings.
Access the Headphone Monitor menu by pressing the headphone volume knob. Use the control wheel to select one of the following options:

Dante Browse
Press the control wheel to search your network for Dante channels. Scroll to select and monitor a device with the headphones.

Dante Cue
Use the control wheel to configure the receiver as a Cue Station, allowing the receiver to act as a central monitoring point for your system. You can add additional channels to Cue Groups. Channels in the Cue Group can be monitored by pressing and holding the channel button on the source receiver.

Headphone Settings

Configuration options:

• LIMITER THRESHOLD: Adjusts the trigger point for the headphone limiter to protect against unexpected increases in signal level
• FD S PRE/POST SELECTION: Selects a audio monitoring point in the signal path before or after Frequency Diversity processing for the headphone. This setting is useful for isolating sources of noise or interference.

System Gain

The System Gain feature allows you to view and calculate all gain stages in the signal chain, including input pads, offsets, and receiver gain. Audio output levels are updated in real time as gain adjustments are made.

1. From a selected Channel menu: Audio > System Gain
2. The display shows the pads and the offsets for transmitters and the receiver gain setting.
3. Use the control wheel to adjust the receiver gain in real time while monitoring the net output levels at the ¼" (6.3 mm) output and the XLR output.
4. Press EXIT when finished.

Networking

Networking Receivers

The receiver features a 4-port network interface. Dante technology provides an integrated solution to distribute digital audio. Dante uses standard IP over Ethernet and safely coexists on the same network as IT and control data. Selectable networking modes route port signals for flexible network set up.

Network Control Software

Receivers can be controlled by Shure Control (Wireless Workbench) for remote management and monitoring. The Dante Controller manages digital audio routing. Signals for AMX and Crestron controllers are carried on the same network as Shure Control.

Shure Control
Wireless Workbench (WWB) software provides comprehensive control for wireless audio systems. Wireless Workbench enables remote adjustments to networked receivers for real-time changes to gain, frequency, RF power, and control locks. A familiar channel strip interface displays audio meters, transmitter parameters, frequency settings, and network status.

Dante
The Dante Controller is a free software program created by Audinate^™ to configure and manage networks of Dante enabled devices. Use the Controller to create audio routes between networked components and to monitor the status of online devices.

Dante Controller and Lock Settings

Version 1.2.X introduces support for Dante Device Lock for AD4D and AD4Q. Dante Device Lock is a feature of Dante Controller that allows you to lock and unlock supported Dante devices using a 4-digit PIN (Personal Identification Number). When a device has a Dante lock turned on, Dante audio will continue to flow according to existing subscriptions, but its subscriptions and settings can't be controlled or configured.
If you forget your Dante Device Lock PIN, see the Device Lock section of the Dante Controller User Guide for instructions on how to proceed.

Dante Domain Manager

Version 1.2.X introduces support for Dante Domain Manager (DDM) for AD4D and AD4Q. DDM is network management software that enables user authentication, role based security, and audit capabilities for Dante networks and Dante enabled products.

Considerations for Shure devices controlled by DDM:

• When you add Shure devices to a Dante domain, leave the local controller access setting in Read Write. Otherwise, access to Dante settings, device factory reset, and device firmware updates will be disabled.
• When a device is managed by a Dante Domain and the Dante Domain is disconnected, access to Dante settings, device factory reset and device firmware updates will be disabled. When a device reconnects to the Dante Domain, it follows the policy set for it in the Dante Domain.

See the Dante Domain Manager User Guide for more information.

Networking Modes and Switch Configuration

The receiver offers two selectable networking modes:

• Split/Redundant: This mode places Dante audio and Shure control on separate networks, while allowing you to take advantage of Dante redundancy.

  SPLIT


  REDUNDANT

• Switched: In Switched mode, the receiver acts as a 4-port network switch. Shure control and Dante audio are present on all network ports.

  SWITCHED


	Port Function and Signals
Network Mode	Port 1	Port 2	Port 3 (Primary)	Port 4 (Secondary)	Application
SWITCHED	Shure control, Dante primary	Shure control, Dante primary	Shure con trol, Dante primary	Shure control, Dante primary	For single network installations of star or daisy-chained networks.
SPLIT/RE DUNDANT (Factory setting)	Shure control	Shure control	Dante primary	Dante secondary	Primary and secondary ports are config ured are separate networks to provide iso lation between control signals and audio signals.

To configure the switch mode:

1. Device Configuration > Network Configuration.
2. Select Setup to enter the Switch Configuration menu.
3. Use the control wheel to change the mode.
4. Press ENTER to reboot the receiver and change the mode.

Diagram of switched mode:

IP Address Configuration

An IP address must be assigned to each device in the network to ensure communication and control between components. Valid IP addresses can be assigned automatically using a DHCP server or manually from a list of valid IP addresses. If using Dante audio, a separate Dante IP address must also be assigned to the receiver.

Automatic IP Addressing Mode

1. If using a DHCP capable Ethernet switch, set the DHCP switch to ON.
2. From the Device Configuration menu: Network Configuration > Next
3. Press the control wheel to enable editing of the Mode, and then set the mode to Automatic.

Manual IP addressing Mode

1. From the Device Configuration menu: Network Configuration > Next
2. Press the control wheel to enable editing of the Mode, and then set the mode to Manual
3. Set valid IP addresses and subnet values, and then press ENTER to save.

Network Browser

The network browser allows you to discover other devices connected to your network. You can view information about the discovered devices, including Device ID, IP address, firmware version, and model name.

1. From the Device Configuration menu: Network Browser
2. When selected, the Network Browser will discover and list devices on the network.
3. Use the control wheel to scroll through and select devices.

The following information and actions are available from the Network Browser:

• Show: Selects the device from the list
• Flash: Flashes front panel LEDs
• Info: Displays the device ID, model, IP address, and firmware version
• Flash All: Flashes the front panel of all devices

Network Troubleshooting

• Use only one DHCP server per network
• All devices must share the same subnet mask
• All receivers must have the same level of firmware revision installed
• Look for the illuminated network icon on the front panel or display of each device:

If the icon is not illuminated, check the cable connection and the LEDs on the network jack.

If the LEDs are not on and the cable is plugged in, replace the cable and recheck the LEDs and network icon.

To check connectivity of WWB6 to the network:

1. Start Wireless Workbench software and use Inventory view to see devices connected to the network.
2. Find the IP address from one of the devices on the network and see if you can ping it from the computer running Wireless Workbench.
3. From a WINDOWS/MAC command prompt, type 'ping IPADDRESS' of the device (e.g. "ping 192.168.1.100").
4. If the ping returns success (no packet loss), then the computer can see the device on the network. If the ping returns failure (100% packet loss), then check the IP address of the computer to ensure it's on the same subnet.
5. If the pings are successful and the devices still do not show up in the WWB6 inventory, check to ensure all firewalls are either disabled or allow the WWB network traffic to pass to the application. Check that firewall settings are not blocking network access.

Operation

Assigning a Device ID

Assigning custom names or IDs helps with monitoring and organizing when the receiver is part of a large system.

1. From the Device Configuration menu: Device ID
2. Press and rotate the control wheel to edit the ID.
3. Press ENTER to save.

Assigning a Channel Name

Assigning unique names to each channel helps with identification and organization when the receiver is part of a large system.

1. Select a channel, and then navigate to Channel Name.
2. Press the control wheel to enable editing, and then turn and press the wheel to edit.
3. When finished, press ENTER to save.

Locking and Unlocking the Controls

Use the locking feature to prevent accidental or unauthorized changes to controls and settings. The front panel and power switch can be independently locked or unlocked.

1. From the Device Configuration menu: Locks
2. Use the control wheel to change the lock status for the front panel controls or the power switch.
3. Press ENTER to save.

Display Screen Options

The receiver offers the following display options:

• Brightness: Low, Medium, High, Auto
• Invert: White text on black or black text on white
• Display Sleep: Offers options to turn off display and front panel illumination after 10, 30, or 60 seconds

Tip: Press any front panel control to interrupt Display Sleep.

1. From the Device Configuration menu: Display
2. Use the control wheel to edit the settings for Brightness, Invert, or Sleep Display.
3. Press ENTER to save.

Saving Receiver Settings as User Presets

User presets allow a current receiver setup to be saved and restored. Presets store all receiver settings to provide a quick way to configure a receiver or switch between several different setups. Up to 4 presets can be stored in receiver memory.

From the Device Configuration menu, navigate to User Presets and choose one of the following options:

• Restore a User Preset: Use the control wheel to select a previously saved preset
• Save a User Preset: Use the control wheel to save the current receiver settings as a preset
• Delete a User Preset: Use the control wheel to select and delete a preset

Programming Transmitters Using IR Presets

Configuring IR presets allow all transmitter parameters to be automatically set from the receiver during an IR sync.

Individual parameters can be configured in the IR Presets menu. Each preset has the default value of No Change, which leave that setting unchanged by an IR sync.

1. Select from the channel menu: IR Presets
2. Use the control wheel to select and edit parameters from the preset list. Select No Change to keep existing settings.
3. Press ENTER to save.

Encryption

The receiver features Advanced Encryption Standard (AES-256) to ensure that only the receiver that is keyed to the transmitter can monitor the audio content.

Note: When enabled, encryption is applied to all receiver channels. Encryption does not affect Dante audio signals, audio quality, or channel spacing.

1. From the Device Configuration menu: Device RF > Encryption.
2. Use the control wheel to select On.
3. Press ENTER to save.
4. Perform an IR sync to complete the encryption between the transmitter and the receiver. The encryption key icon will appear on the display of both the receiver and the transmitter.

Note:
Any change to the encryption status on the receiver such as enabling/ disabling encryption or requesting a new encryption key, requires a sync to send the settings to the transmitter.

Tip: To remove encryption, use the control wheel to select Off and re-sync the transmitter to clear the encryption.

Restoring the Receiver to Factory Settings

The Factory Reset function clears the current settings and restores the factory settings.

All current settings will be cleared during the reset and the receiver will need to reboot.

1. From the Device Component menu: Factory Reset
2. Press ENTER to reset the receiver, or press EXIT to return to the Device Configuration menu.

Cooling Fan

The receiver contains an internal cooling fan to protect against over-temperature conditions.

1. From the Device Configuration menu: Fan
2. Select from the following fan setting options:
   • Auto: The fan will automatically turn on if the receiver temperature rises
   • On: The fan will run continuously to offer maximum cooling in warm environments

Tip: The internal receiver temperature is shown on the Fan display screen.

Troubleshooting

Issue	See Solution...
No sound	Power, Cables, Radio Frequency, or Encryp tion Mismatch
Faint sound or distortion	Gain, Cables
Lack of range, unwanted noise bursts, or dropouts	Radio Frequency (RF)
Cannot turn transmitter off or change frequency settings, or can't program receiver	Interface Locks
Encryption Mismatch message	Encryption Mismatch
Firmware Mismatch message	Firmware Mismatch
Transmitter Battery Hot message	Tx Battery Hot
Antenna Fault Red LED	RF
Handheld transmitter shuts down during use	Clean Battery Contacts

Power

Make sure that the receiver and transmitter are receiving sufficient voltage. Check the battery indicators and replace the transmitter batteries if necessary.

Gain

Adjust the system gain on the front of the receiver. Ensure the output level on the back of the receiver corresponds to the mic/ line input setting of the mixing console, amplifier, or DSP.

Cables

Check that all cables and connectors are working correctly.

Interface Locks

The transmitter and the receiver can be locked to prevent accidental or unauthorized changes. A locked feature or button will produce the Locked screen on the LCD panel or the lock icon will flash on a transmitter.

Encryption Mismatch

Re-sync all receivers and transmitters after enabling or disabling encryption.

Firmware Mismatch

Paired transmitters and receivers must have the same firmware version installed to ensure consistent operation. See Firmware topic for firmware update procedure.

Tx Battery Hot

If the transmitter battery does not cool off, the transmitter will shut down. Let the device cool down and then consider swapping the transmitter battery to continue operation.
Identify any possible external heat sources to the transmitter and operate the transmitter away from those external heat sources.
All batteries should be stored and operated away from external heat sources in reasonable temperature conditions for best performance.

Radio Frequency (RF)

RF LEDs

If neither blue RF Diversity LED is illuminated, then the receiver is not detecting the presence of a transmitter.

The orange RF Signal Strength LEDs indicate the amount of RF power being received. This signal could be from the transmitter, or it could be from an interfering source, such as a television broadcast. If more than two of the orange RF LEDs are still illuminated while the transmitter is off, then that channel may be experiencing interference, and you should try a different channel.

The red RF LED indicates RF overload. Overloads have the potential to cause interference in multiple system installations. If you are experiencing an overload, turn off the receiver to see if it is causing interference with other components.

The numerical channel select button also turns red to indicate interference.

• Dim red = Channel is not selected, experiencing interference
• Bright red = Channel is selected, experiencing interference

Compatibility

• Perform a Scan and Sync to ensure the transmitter and receiver are set to the same group and channel.
• Look at the band label on the transmitter and make sure the receiver is set to the same band.

Reducing Interference

• Perform a group or channel scan to find the best open frequency. Perform a sync to transfer the setting to the transmitter.
• For multiple systems, check that all systems are set to channels in the same group (systems in different bands do not need to be set to the same group).
• Maintain a line of sight between transmitter and receiver antennas.
• Move or point receiver antennas away from metal objects or other sources of RF interference (such as LED walls, computers, digital effects, network switches, network cables and Personal Stereo Monitor (PSM) wireless systems).
• Eliminate RF overload (see below).

Increasing Range

If the transmitter is more than 6 to 60 m (20 to 200 ft) from the receiver antenna, you may be able to increase range by doing one of the following:

• Reduce interference (see above).
• Increase transmitter RF power level.
• Use Normal mode instead of High Density mode.
• Use an active directional antenna, antenna distribution system, or other antenna accessory to increase RF range.

Eliminating RF Overload

If you see the red RF LED on a receiver, try the following:

• Reduce the transmitter RF power level
• Move the transmitter further away from the receiver—at least 6 m (20 ft)
• If you are using active antennas, reduce antenna or amplifier gain.
• Use omnidirectional antennas

Antenna Faults

The Antenna Fault red LED indicates a short circuit condition or excessive load at an antenna port.

• Check antennas and cables for damage
• Ensure that antenna ports are not overloaded
• Check antenna bias voltage setting. Turn off voltage if using passive antennas.

Clean Battery Contacts

Clean the battery contacts with an electrical contact cleaner designed for gold contacts and safe on plastics.

Contact Customer Support

Didn't find what you need? Contact our customer support to get help.

Specifications

System Specifications

RF Carrier Frequency Range
470–960 MHz, varies by region (See frequency table)

Working Range
100 m ( 330 ft)

Note: Actual range depends on RF signal absorption, reflection and interference. Note: Actual range depends on RF signal absorption, reflection and interference.

RF Tuning Step Size
25 kHz, varies by region

Channel-to-Channel Spacing

Standard Mode	350 kHz
High Density Mode	125 kHz

varies by region

Channel-to-Channel Spacing

Standard Mode	350 kHz
High Density Mode	125 kHz

varies by region

Image Rejection
>70 dB, typical

RF Sensitivity
−98 dBm at 10^-5 BER

LatencyAnalogOutput

STD	2.08 ms
HD	2.96 ms

Audio Frequency Response

AD1	20 – 20 kHz (±1 dB)
AD2	Note: Dependent on microphone type

Signal-to-Noise Ratio(Dynamic Range)
typical, 20 Hz to 20 kHz, receiver gain setting = -12 dB

	A-Weighted	Unweighted
XLR Line Output	120 dB	117 dB
Digital (AES3/Dante)	130 dB	126 dB

Total Harmonic Distortion
-6 dBFS, 1 kHz, System Gain @ +10
<0.0 1%

System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.

Operating Temperature Range
-18°C (0°F) to 50°C (122°F)

Note: Battery characteristics may limit this range.

Storage Temperature Range
-29°C (-20°F) to 65°C (149°F)

Audio Output

Gain Adjustment Range
−18 to +42 dB in 1 dB steps (plus Mute setting)

Configuration

XLR	Transformer Coupled Balanced (1=ground, 2=au dio +, 3=audio −)
TRS	Transformer Coupled Balanced (Tip = Audio +, Ring = Audio -, Sleeve = Ground)

Impedance
100 Ω, Typical, XLR Line Out

Full Scale Output ( 200K Ωload)

LINE setting	+18 dBV
MIC setting	−12 dBV
TRS	+8 dBV

Mic/Line Switch
30 dB pad

Phantom Power Protection
Yes

Dimensions
44 x 483 x 333 mm H x W x D

Weight
4.6 kg (10.1 lbs), without antennas

Housing
Steel; Extruded aluminum

Power Requirements
100 to 240 V AC, 50 60 Hz, 0.55 A max.

Thermal Power Dissipation

Maximum	23 W ( 78 BTU/hr)
Idle	15 W ( 51 BTU/hr)

DC Power Requirements
10.9 to 14.8V DC, 3.3 A max.

Network Interface
10/100 Mbps, 1Gbps, Dante Digital Audio

Network Addressing Capability
DHCP or Manual IP address

Maximum Cable Length
100 m (328 ft)

Cascade Output

Connector Type
BNC

Note: For connection of one additional receiver in the same band

Configuration
Unbalanced, passive

Impedance
50 Ω

Insertion Loss
0 dB, typical

RF Input

Spurious Rejection
>80 dB, typical

Connector Type
BNC

Impedance
50 Ω

Bias Voltage
12 to 13.5 V DC, 150 mA maximum, per antenna switchable on-off

RF Carrier Frequency Rangemodel dependent

AD4D=A	470–636 MHz
AD4D=B	606–810 MHz
AD4D=C	750–960 MHz

Tables and Diagrams

Audio Output

XLR to ¼" Output

Use the following wiring diagram to convert the XLR output to a ¼" output.

Receiver Frequency Bands

Band	Frequency Range ( MHz)
G53	470 to 510
G54	479 to 565
G55†	470 to 636*
G56	470 to 636
G57 (G57+)	470 to 616* (614 to 616*** )
G62	510 to 530
H54	520 to 636
K53	606 to 698*
K54	606 to 663**
K55	606 to 694
K56	606 to 714
K57	606 to 790
K58	622 to 698
L54	630 to 787
L60	630.125 to 697.875
P55	694 to 703, 748 to 758, 803 to 806
R52	794 to 806
JB	806 to 810
X51	925 to 937.5
X55	941 to 960
Z16††	1240 to 1260

*With a gap between 608 to 614 MHz.
**With a gap between 608 to 614 MHz and a gap between 616 to 653 MHz.
***Selecting the G57+ band extends the G57 band with 2 MHz of additional spectrum between 614 to 616 MHz. Maximum transmitter power is limited to 10mW between 614 to 616 MHz.
† Operation mode varies according to region. In Brazil, High Density mode is used. The maximum power level for Peru is 10mW.
†† Z16 for Japan only.

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer's instructions.
8. DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.
19. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
20. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
21. Operate this product within its specified operating temperature range.

Voltages in this equipment are hazardous to life. No user serviceable parts inside. Refer all servicing to qualified service personnel. The safety certifications do not apply when the operating voltage is changed from the factory setting.

Australia Warning for Wireless

This device operates under an ACMA class licence and must comply with all the conditions of that licence including operating frequencies.

Documents / Resources

References

• AD651B User Guide
• SUU - Shure Update Utility - Shure USA

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Shure AD4D - Dual Channel Receiver Manual
