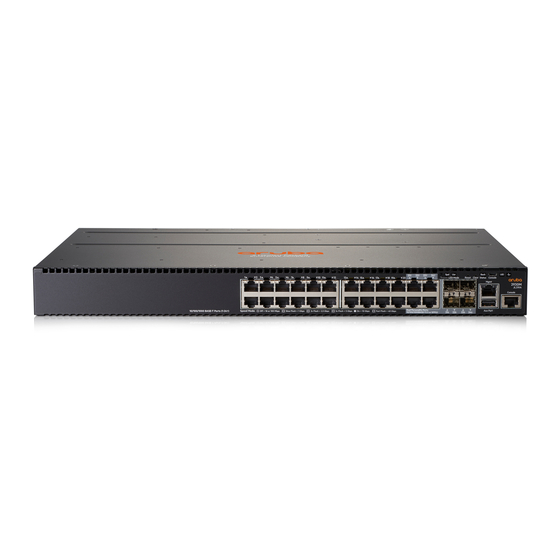

Summary of Contents for Aruba JL320A

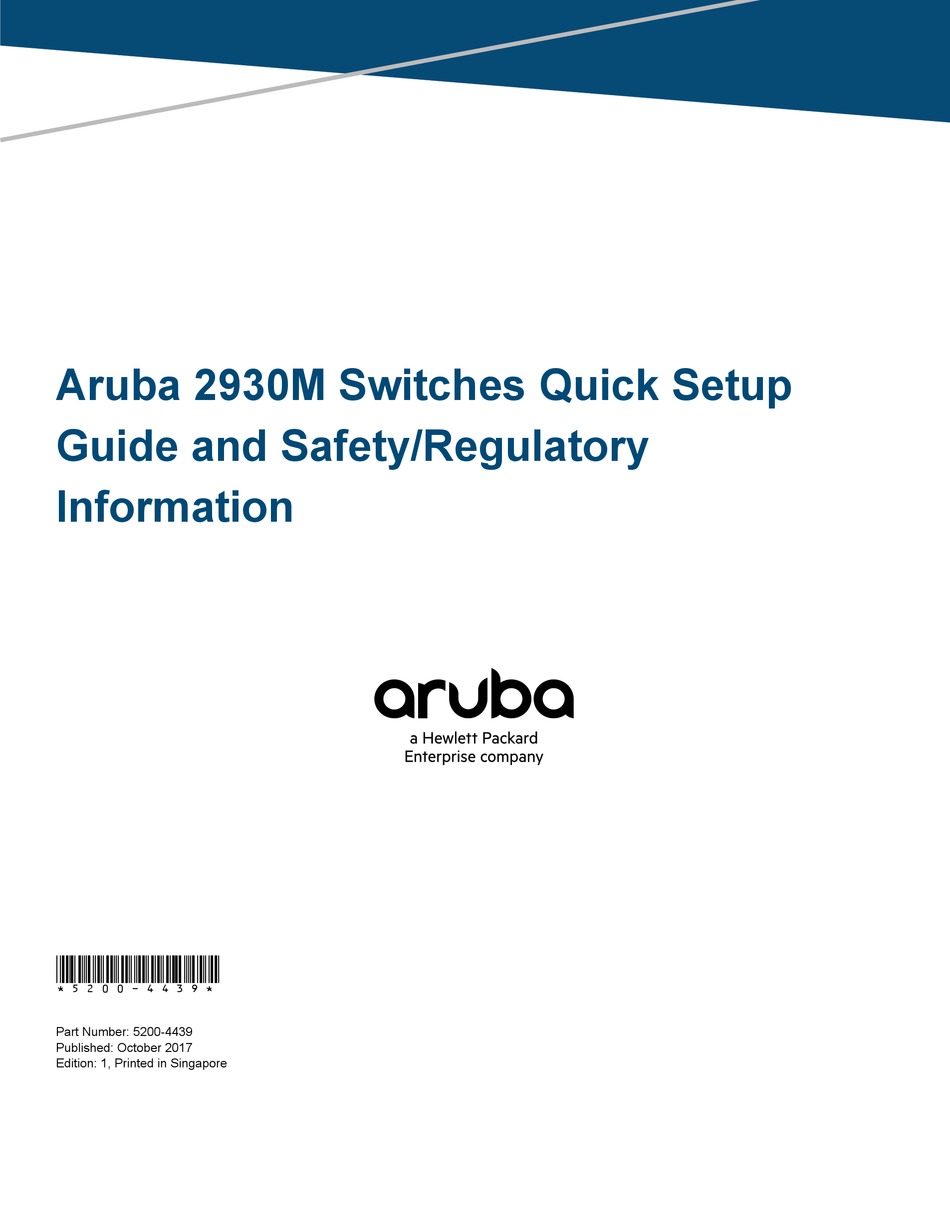

- Page 1 Aruba 2930M Switches Quick Setup Guide and Safety/Regulatory Information *5200-4439* Part Number: 5200-4439 Published: October 2017 Edition: 1, Printed in Singapore...
-
Page 2: Applicable Products
Aruba X372 54VDC 680W 100-240VAC Power Supply JL086A Aruba X372 54VDC 1050W 110-240VAC Power Supply JL087A Related publications • Aruba 2930M Switches Installation and Getting Started Guide • Aruba 2930M and 3810M Switch Power Supply Quick Setup Guide and Safety/Regulatory Information... - Page 3 • ArubaOS-Switch Power Over Ethernet (PoE/PoE+) Planning and Implementation Guide • ArubaOS-Switch Transceiver Guide To view and download the above publications, visit http://www.hpe.com/support/manuals.
-
Page 4: Table Of Contents
Install an optional uplink module......................13 Install an optional Stacking Module......................SFP/SFP+/QSFP+ installation notes....................... Switch Operating System Software......................Chapter 4 Aruba 2930M safety and regulatory information....... Regulatory information..........................19 Aruba 2930M Switch Safety and Regulatory Information................ Power supply instructions........................Battery Statements:.......................... -
Page 5: Chapter 1 Before You Begin
Chapter 1 Before you begin Installation precautions and guidelines To avoid personal injury or product damage when installing your switch, read the installation precautions and guidelines below. • Do not mount the switch on a wall or under a table or under another horizontal surface. •... -
Page 6: Chapter 2 Prepare For Installation
Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A) 4. Power on and verify that self-test completes normally. An Aruba 2930M switch does not contain a power on/off switch. It is turned on by connecting the AC power cord to the switch and to an AC power source. - Page 7 Off after self-test unless a network cable is connected and the port is receiving link beat. Speed Mode Selected LED: Off after self-test in default configuration. PoE Mode Selected LED (Only on Aruba 2930M models that support PoE+ operation): Off after self-test in default configuration. User Mode Selected LED: Off after self-test in default configuration.
-
Page 8: Chapter 3 Mount The Switch And Connect To The Network
• Four-post rack mount (Requires the optional J9583A HPE X410 Universal Rack Mounting Kit.) For instructions on using the four-post rack-mount option, see the Aruba 2930M Switches Installation and Getting Started Guide at http://www.hpe.com/support/manuals. Mounting the switch in a two-post rack... -
Page 9: Mounting A Switch On A Tabletop Or Desktop
2. Use the four number 12-24 screws to secure the brackets to the rack. 3. Go to Connecting the switch to the network on page 10. Mounting a switch on a tabletop or desktop Prerequisites • Locate the four self-adhesive pads included in the switch accessory kit. •... -
Page 10: Connecting The Switch To The Network
(Optional) The RJ-45 console cable (not included) or a micro-USB console cable (not included) • Network cables (not included) for connection to the switch RJ-45 data ports. (For cabling specifications for your switch, see the Aruba 2930M Switches Installation and Getting Started Guide at http://www.hpe.com/ support/manuals.) •... - Page 11 If cables are connected to both the Console port and the micro-USB port, input is accepted only from the Micro USB connector. (Echo output is accepted through both ports). See the information on connecting a management console in the Aruba 2930M Switches Installation and Getting Started Guide at http:// www.hpe.com/support/manuals.
- Page 12 3. (Optional) Insert up to four SFP transceivers in the fixed transceiver slots on the switch front panel. 4. Connect network cables to the RJ-45 data ports and to any optional transceivers installed on the switch front panel. Aruba 2930M Switches Quick Setup Guide and Safety/Regulatory Information...
-
Page 13: Install An Optional Uplink Module
JL078A Aruba 3810M/2930M 1-Port QSFP+ 40GbE Module ◦ JL083A Aruba 3810M/2930M 4-Port 100M/1G/10G SFP+ MACsec Module ◦ JL081A Aruba 3810M/2930M 4 HPE Smart Rate 1G/2.5G/5G/10G PoE+ Module • A transceiver compatible with the uplink module you plan to install •... - Page 14 1. Remove the cover plate from the uplink port. Store it in a secure location for possible reuse in case the uplink module is removed from the switch in the future. 2. Insert an optional uplink module, such as the Aruba 3810M/2930M 1 Port QSFP+ 40GbE Module shown here. 3. Insert a transceiver in the uplink module.
-
Page 15: Install An Optional Stacking Module
4. Connect a network cable to the transceiver installed in the uplink module. Install an optional Stacking Module Prerequisites Gather the following devices: • One JL325A Aruba 2930 2-Port Stacking Module • One of the following optional stacking cables: ◦ J9734A Aruba 2920/2930M 0.5m Stacking Cable ◦... - Page 16 3. Install the stacking module. 4. Reconnect the switch to its power source(s). 5. Connect a stacking cable to the stacking module. Aruba 2930M Switches Quick Setup Guide and Safety/Regulatory Information...
-
Page 17: Sfp/Sfp+/Qsfp+ Installation Notes
Non-Aruba SFP/SFP+/QSFP+ transceivers are not supported. Use of supported Aruba products ensures that your network maintains optimal performance and reliability. If you require additional transceivers, contact an Aruba sales representative or an authorized reseller. The following resources can help you to find transceiver support information for your switch model: •... -
Page 18: Switch Operating System Software
Switch Operating System Software For the latest software version supported by your switch, visit http://www.hpe.com/networking/software. For software installation and management, see the Basic Operation Guide and other software documentation for your switch at http://www.hpe.com/support/manuals. Aruba 2930M Switches Quick Setup Guide and Safety/Regulatory Information... -
Page 19: Chapter 4 Aruba 2930M Safety And Regulatory Information
Aruba 2930M safety and regulatory information Regulatory information For important safety, environmental, and regulatory information, see Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at http://www.hpe.com/support/Safety- Compliance-EnterpriseProducts. Chapter 4 Aruba 2930M safety and regulatory information... -
Page 20: Aruba 2930M Switch Safety And Regulatory Information
15% to 95% at 40°C (104°F) non-condensing Relative Humidity: -40°C to 70°C (-40°F to 158°F) up to 15000 ft Non-Operating Temperature: 15% to 90% at 65°C (149°F) Non-Operating Relative Humidity: Table Continued Aruba 2930M Switches Quick Setup Guide and Safety/Regulatory Information... - Page 21 100 - 240 VAC • AC voltage: 8A- 3.5A 3A -1.2A • Maximum current: 50 -60 Hz 50 - 60 Hz • Frequency range: Per JL087A power supply: 110V-240V 12A- 5A 50 -60 Hz Chapter 4 Aruba 2930M safety and regulatory information...
- Page 22 Sound Power (LWAd) 4.4 Bel (JL323A) Sound Pressure (LpAm) (Bystander) 26.0 dB Aruba 2930M 24SR PoE+ 1-slot Switch (JL324A) Sound Power (LWAd) 4.8 Bel Sound Pressure (LpAm) (Bystander) 31.2 dB Table 1: Power cord for Aruba 2930M PoE+ switches One of the following:...
-
Page 23: Power Supply Instructions
Table 2: Power cord for Aruba 2930M non-PoE+ switches One of the following: Argentina 8121- 0729 Israel 8121-1004 Australia/New Zealand 8121-0837 Japan 8121-1143 Brazil 8121-1071 North America 8121-0914 Chile 8121-0735 North America high line 8120-8945 China 8121-0943 Philippines/Thailand 8121-0734 Continental Europe/South... -
Page 24: Battery Statements
The only indicator of battery failure is the failure of the switch internal clock to keep the correct time across a reboot or power cycle. If a battery failure occurs, contact your authorized Aruba representative for assistance. Batteries are not customer-serviceable and battery failures should be referred only to service personnel authorized by Aruba. -
Page 25: Korea Emc Class A Statement
Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and carries the CE marking accordingly. For Conducted and Radiated Immunity in accordance with EN55024, the Aruba 2930M switch products are limited to Performance Criteria A with shielded cable for HPE Smart Rate ports.
