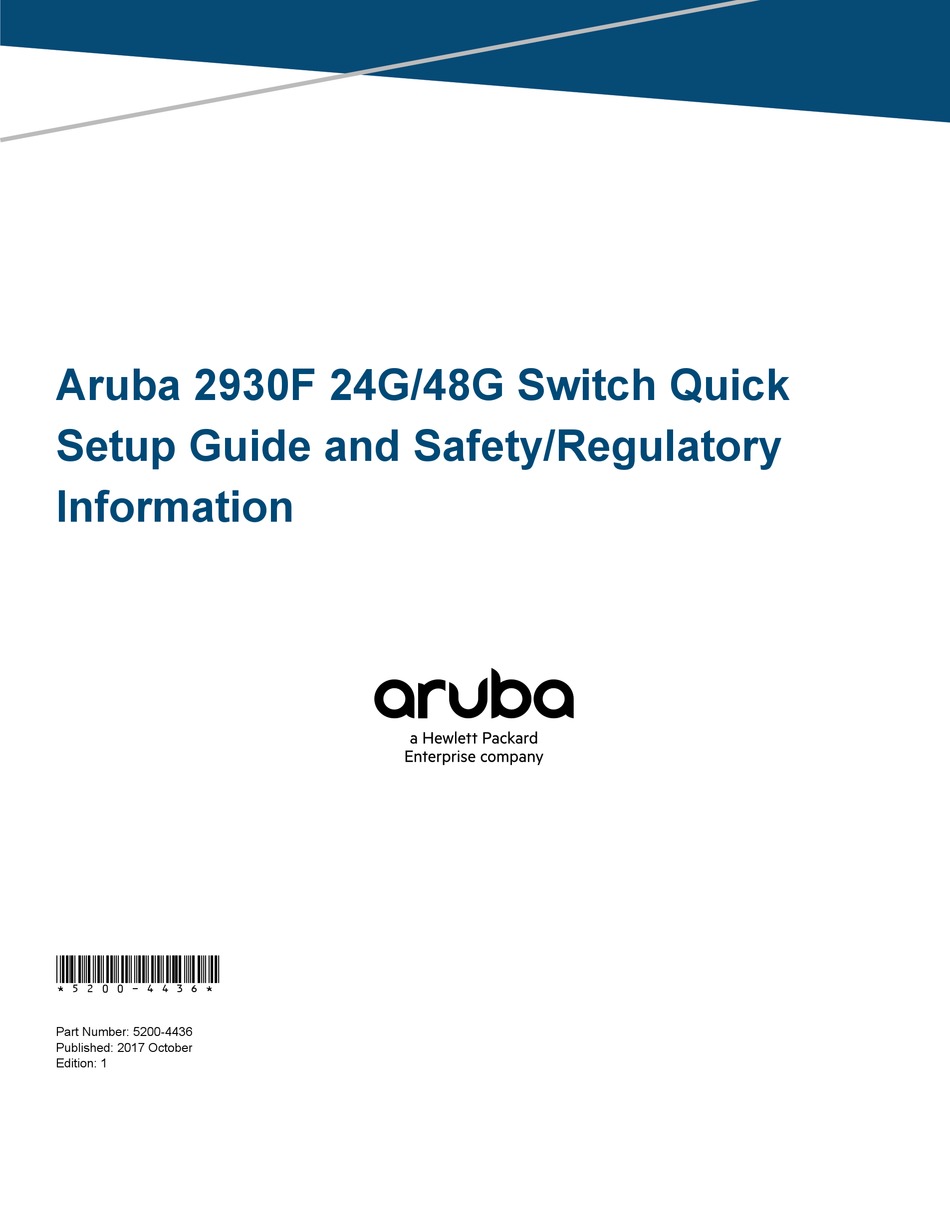

- Page 1 Aruba 2930F 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information *5200-4436* Part Number: 5200-4436 Published: 2017 October Edition: 1...
- Page 2 Aruba 2930F 24G PoE+ 4SFP+ TAA Switch JL263A Aruba 2930F 48G PoE+ 4SFP+ TAA Switch JL264A Aruba 2930F 48G PoE+ 4SFP 740W Switch JL557A Aruba 2930F 48G PoE+ 4SFP+ 740W Switch JL558A Aruba 2930F 48G PoE+ 4SFP+ 740W TAA Switch JL559A...
-
Page 3: Table Of Contents
Contents Chapter 1 Aruba 2930F 24G/48G Switch Quick Setup Guide.......4 Installation precautions..........................Preparing for installation..........................Mounting Aruba 2930F 24-Port and 48-Port switches................Two-post rack mounting option:...................... Tabletop or desktop mounting option....................Connecting the switch to the network......................SFP/SFP+ installation notes........................ -
Page 4: Chapter 1 Aruba 2930F 24G/48G Switch Quick Setup Guide
• Devices installed in a rack or cabinet must be mounted as low as possible, with the heaviest devices at the bottom and progressively lighter devices installed on top. Aruba 2930F 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information... -
Page 5: Preparing For Installation
3. Power on and verify that self-test completes normally. An Aruba 2930F 24G/48G PoE+ / non PoE+ 4SFP / 4SFP+ Switch does not contain a power on/off switch. It is turned on by connecting the AC power cord to the switch and to an AC power source. -
Page 6: Mounting Aruba 2930F 24-Port And 48-Port Switches
Supported mounting options for the Aruba 2930F 24-Port and 48-Port switches include: • Rack mount • Tabletop or desktop mount Wall-mounting or under-table mounting Aruba 2930F 24G 4SFP+ Switch and Aruba 2930F 48G 4SFP+ Switch is not supported. Aruba 2930F 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information... -
Page 7: Two-Post Rack Mounting Option
Two-post rack mounting option: For the four-post rack mount option, see Aruba 2930F Switches Installation and Getting Started Guide. 1. Use a #1 Phillips (cross-head) screwdriver to attach the accessory kit brackets to the switch using the eight 8– mm M4 screws. -
Page 8: Connecting The Switch To The Network
JL448A, Aruba X2C2 RJ45 to DB9 Console Cable If both cables are connected, input is accepted only from the Micro USB connector. For more information on connecting a Management Console, see Aruba 2930F Switches Installation and Getting Started Guide. 2. (Optional) Insert transceivers. - Page 9 To ensure proper operation of your switch, use only genuine Aruba SFP/SFP+ transceivers supported by your switch. For more information on using transceivers, see SFP/SFP+ installation notes. 3. Connect network cables. Chapter 1 Aruba 2930F 24G/48G Switch Quick Setup Guide...
- Page 10 For the specified port on the neighbor switch, lists the show lldp info remote port_# IP address and other data for the directly connected Aruba 2930F switch (where port_# is the port used on the neighbor switch to access the Aruba 2930F switch you are setting up).
-
Page 11: Sfp/Sfp+ Installation Notes
Hot swapping SFP/SFP+ transceivers Supported SFP/SFP+ transceivers that you can install in the Aruba switch can be “hot swapped” – removed and installed while the switch is receiving power. However, you must disconnect the network cables from the SFP/SFP + transceivers before hot-swapping them. - Page 12 J9953A (8121-0914) HPE 2.5m C15 to NEMA 5-15P NA Power Cord to NEMA 5-15P Power Cord JL253A, JL254A, JL259A, JL260A, JL255A, JL256A, JL261A, JL262A, JL263A, JL264A JL557A, JL558A, JL559A PDU Jumper Cord (NA/Japan/Taiwan) J9943A (8121-1091) HPE 2.5m C15 to C14 PDU NA/JP/TW Power Cord.
-
Page 13: Aruba 2930F Switch Safety And Regulatory Information
EN 55032:2012 / CISPR 32 Class A; FCC CRF 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3:2013 RoHS: EN 50581:2012 Chapter 1 Aruba 2930F 24G/48G Switch Quick Setup Guide... - Page 14 + 4SFP Switch (JL262A) 240V 100-127VAC 2.5A for 200-240VAC Aruba 2930F 24G PoE 100–127V / 200– 4.9A for 370W 50/60 Hz + 4SFP+ TAA-compliant 240V 100-127VAC Switch (JL263A) 2.4A for 200-240VAC Table Continued Aruba 2930F 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information...
- Page 15 Sound Power (LWAd) 5.4 Bel Sound Pressure (LpAm) (Bystander) 40.2 dB Aruba 2930F 24G PoE+ 4SFP Switch (JL261A) Sound Power (LWAd): 5.4 Bel Sound Pressure (LpAm) (Bystander): 40.6 dB Table Continued Chapter 1 Aruba 2930F 24G/48G Switch Quick Setup Guide...
- Page 16 Este equipamento deve ser conectado obrigatoriamente em tomada de rede de energia elétrica que possua aterramento (três pinos), conforme a Norma NBR ABNT 5410, visando a segurança dos usuários contra choques elétricos.) Aruba 2930F 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information...
-
Page 17: Japan Vcci Class A
For online help content, include the product name, product version, help edition, and publication date located on the legal notices page. Chapter 1 Aruba 2930F 24G/48G Switch Quick Setup Guide...
