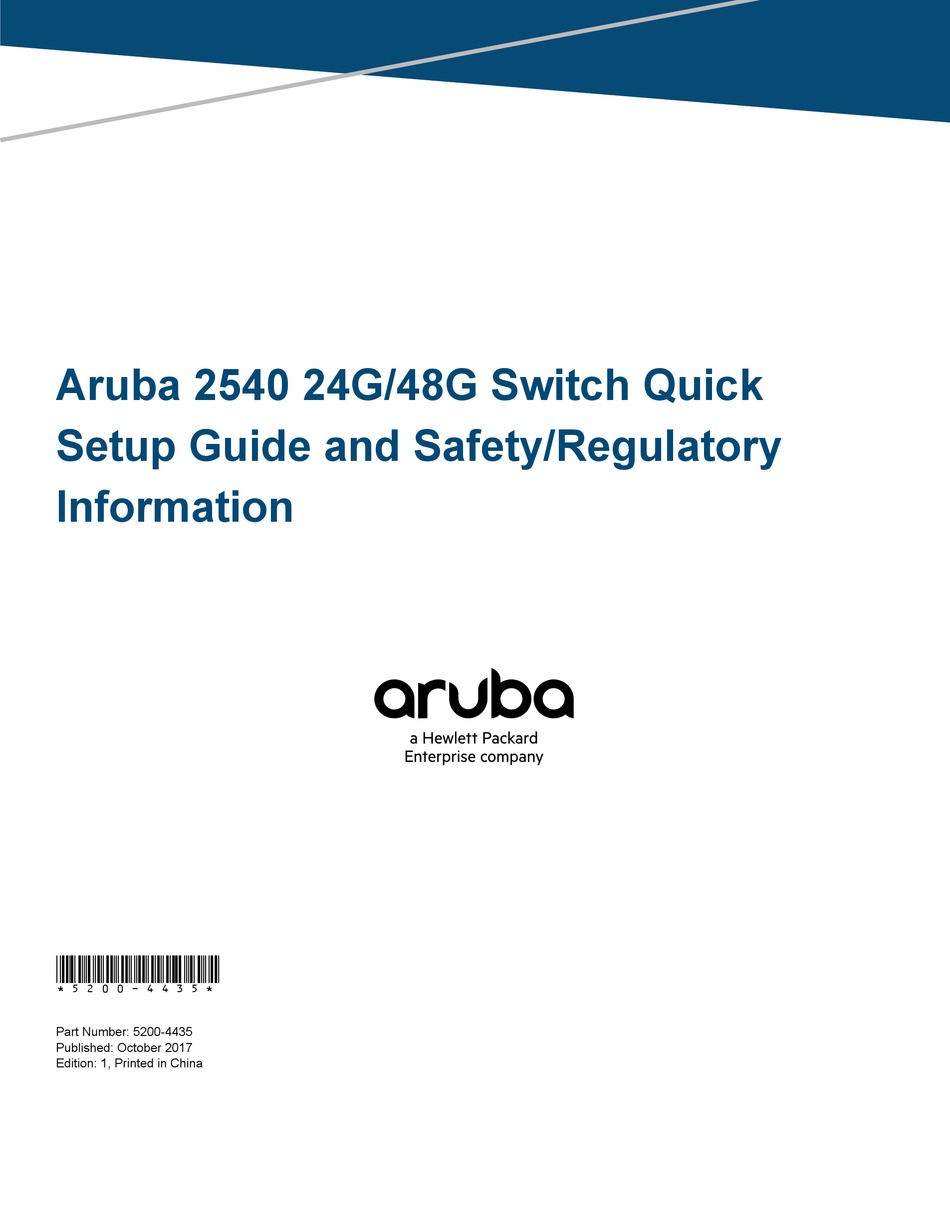

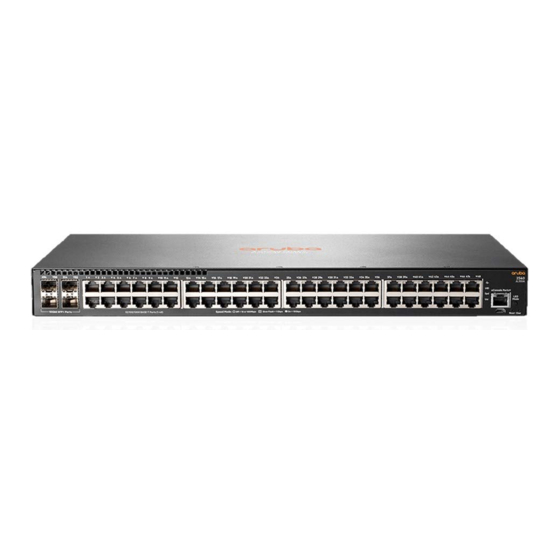

- Page 1 Aruba 2540 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information *5200-4435* Part Number: 5200-4435 Published: October 2017 Edition: 1, Printed in China...
-
Page 2: Table Of Contents
Contents Applicable products......................Chapter 1 Aruba 2540 24G/48G Switch Quick Setup Guide and Safety/ Regulatory Information..................4 Installation precautions..........................Prepare for installation..........................Mounting Aruba 2540 24-Port and 48-Port switches................. Two-post rack mounting option:...................... Tabletop or desktop mounting option....................Connecting the switch to the network...................... -
Page 3: Applicable Products
Oracle and/or its affiliates. ® UNIX is a registered trademark of The Open Group. Applicable products Aruba 2540 24G 4SFP+ Switch JL354A Aruba 2540 48G 4SFP+ Switch JL355A Aruba 2540 24G PoE+ 4SFP+ Switch JL356A Aruba 2540 48G PoE+ 4SFP+ Switch JL357A... -
Page 4: Chapter 1 Aruba 2540 24G/48G Switch Quick Setup Guide And Safety/Regulatory Information
Chapter 1 Aruba 2540 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information The switch drawings in this document are for illustration only and may not match your particular switch model. For switch and accessories installation information, browse to the manuals for your switch model at www.hpe.com/networking/ResourceCenter. -
Page 5: Prepare For Installation
• Use only approved power cords with your Aruba Networking Product. Please see the power cord information in the section titled Power cords on page 11 of this guide for acceptable power cords that are appropriate for this product. Failure to use approved power cords can result in personal injury and product damage, and may void your product warranty. -
Page 6: Mounting Aruba 2540 24-Port And 48-Port Switches
3. Power on and verify that self-test completes normally. An Aruba 2540 24G or 48G switch does not contain a power on/off switch. It is turned on by connecting the AC power cord to the switch and to an AC power source. -
Page 7: Two-Post Rack Mounting Option
Wall-mounting or under-table mounting Aruba 2540 24G and 48G switches is not supported. Two-post rack mounting option: For the four-post rack-mount option, see the Aruba 2540 Switches Installation and Getting Started Guide at www.hpe.com/networking/ResourceCenter. 1. Use a #1 Phillips (cross-head) screwdriver to attach the accessory kit brackets to the switch using the eight 8–... -
Page 8: Connecting The Switch To The Network
1. (Optional) Connect an RJ-45 console cable and/or a micro-USB console cable (not included) to a VT-100 terminal or a PC (running suitable terminal emulation software). JL448A, Aruba X2C2 RJ45 to DB9 Console Cable, can be ordered as an accessory to your switch. - Page 9 To ensure proper operation of your switch, use only genuine Aruba SFP/SFP+ transceivers supported by your switch. For more information on using transceivers, see SFP/SFP+ installation notes. 3. Connect network cables. Chapter 1 Aruba 2540 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information...
- Page 10 For the specified port on the neighbor switch, lists the show lldp info remote port_# IP address and other data for the directly connected Aruba 2540 switch (where port_# is the port used on the neighbor switch to access the Aruba 2540 switch you are setting up).
-
Page 11: Sfp/Sfp+ Installation Notes
Library at www.hpe.com/networking/ResourceCenter. Hot Swapping SFP/SFP+ transceivers Supported SFP/SFP+ transceivers that you can install in your Aruba switch can be “hot swapped” – removed and installed while the switch is receiving power. However, you should disconnect the network cables from the SFP/SFP+ transceivers before hot-swapping them. -
Page 12: Aruba 2540 Switch Safety And Regulatory Information
4.6 km (15,000 ft) Maximum Non-Operating Altitude: Airflow direction Side-to-Side Safety-EU EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 Safety- World Wide IEC60950-1:2005 Ed.2; Am 1:2009+A2:2013 North American UL60950-1, CSA 22.2 No 60950-1 Table Continued Aruba 2540 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information... - Page 13 Sound Power (LWAd) 5.6 Bel Sound Pressure (LpAm) (Bystander) 41.7 dB Disconnect all power supply cords before servicing. Table 1: Japan power cord warning Japan Power Cord Warning Chapter 1 Aruba 2540 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information...
-
Page 14: Japan Vcci Class A
For online help content, include the product name, product version, help edition, and publication date located on the legal notices page. Aruba 2540 24G/48G Switch Quick Setup Guide and Safety/Regulatory Information...
