Basic Setup - Endress+Hauser Levelflex M FMP41C Operating Instructions Manual

Levelflex M FMP41C with HART/4...20 mA
tank shape
Standard
measuring cond.
Unknown
measuring cond.
Standard
empty calibr.
full calibr.
mapping
safety settings
linearisation
extended calibr.
...
Endress + Hauser

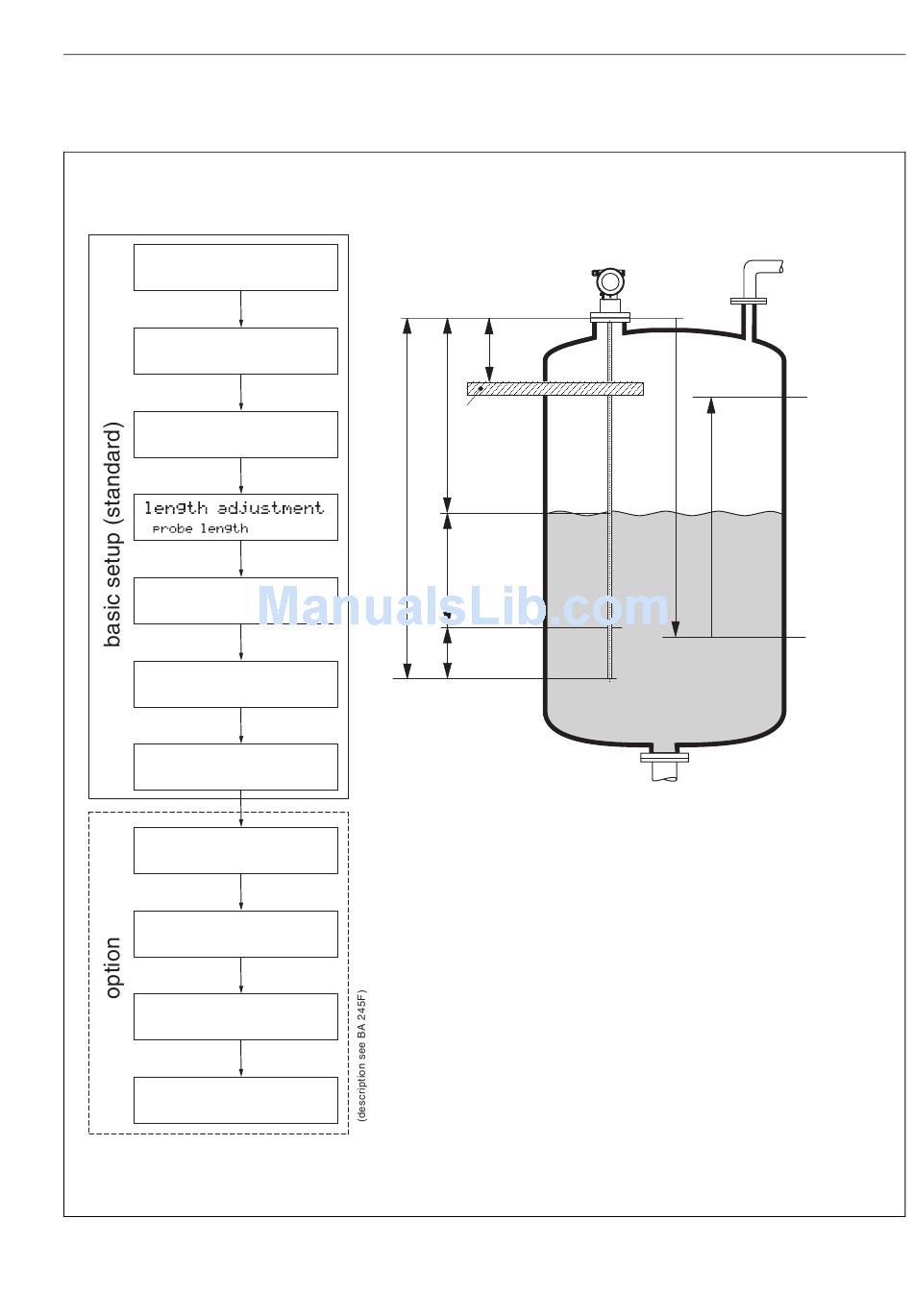

6.3

Basic Setup

D
LN
L
LB
E = empty calibr. (= zero)
F = full calibr. (= span)
D = distance (distance flange / product)
L
flange:
reference point of
measurement
UB
SD
setting in 005
setting in 006
display in 0A5
= level
display in 0A6
Commissioning
E
F
LN = probe length
setting in 033
UB = upper blocking distance
setting in 059
SD = safety distance
setting in 015
LB = lower blocking
distance
