Accessories

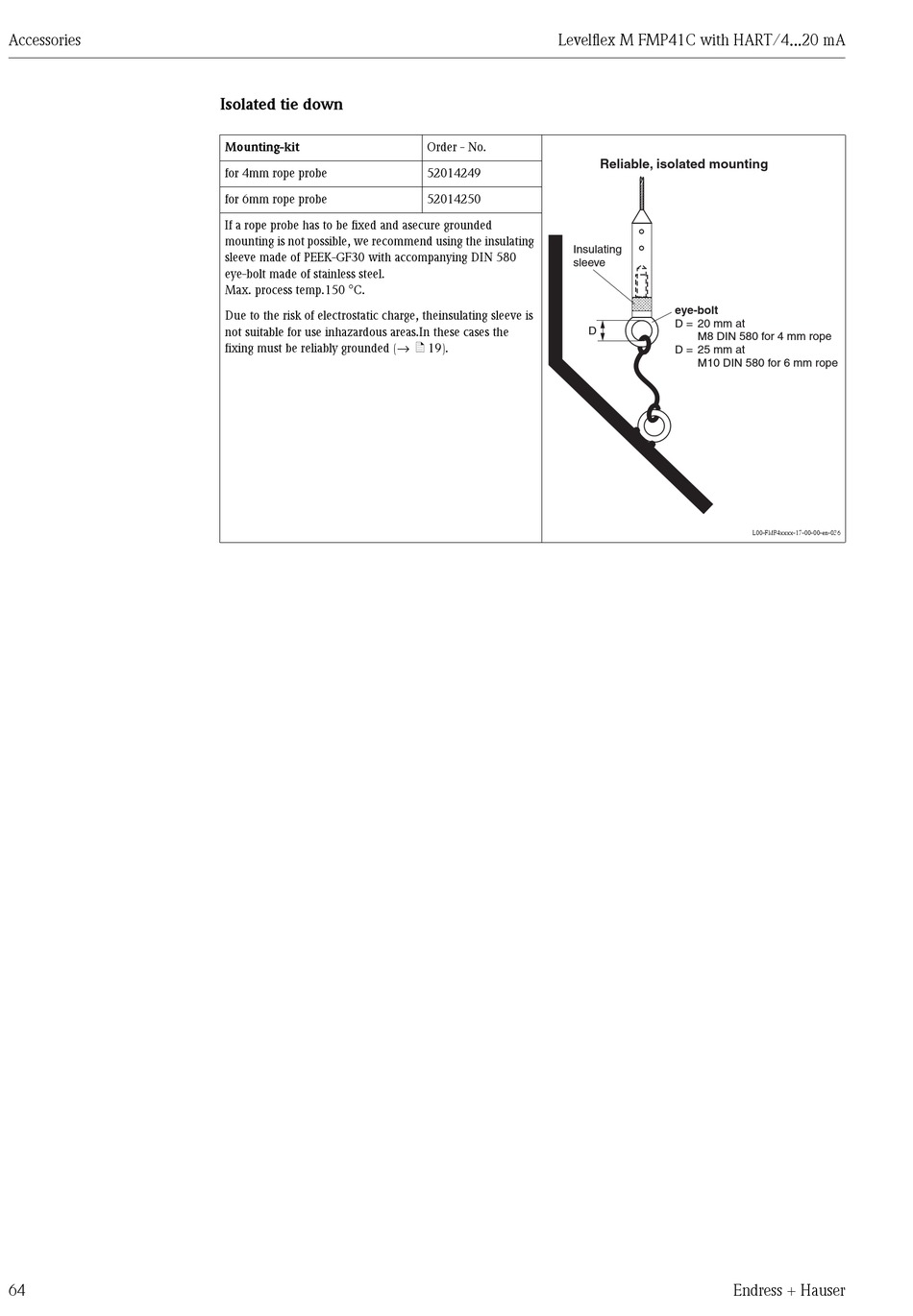

Isolated tie down

Mounting-kit

for 4mm rope probe

for 6mm rope probe

If a rope probe has to be fixed and asecure grounded

mounting is not possible, we recommend using the insulating

sleeve made of PEEK-GF30 with accompanying DIN 580

eye-bolt made of stainless steel.

Max. process temp.150 °C.

Due to the risk of electrostatic charge, theinsulating sleeve is

not suitable for use inhazardous areas.In these cases the

fixing must be reliably grounded (→ ä 19).

Levelflex M FMP41C with HART/4...20 mA

Order - No.

52014249

52014250

Insulating

sleeve

Reliable, isolated mounting

eye-bolt

D = 20 mm at

M8 DIN 580 for 4 mm rope

D = 25 mm at

M10 DIN 580 for 6 mm rope

L00-FMP4xxxx-17-00-00-en-036

Endress + Hauser
