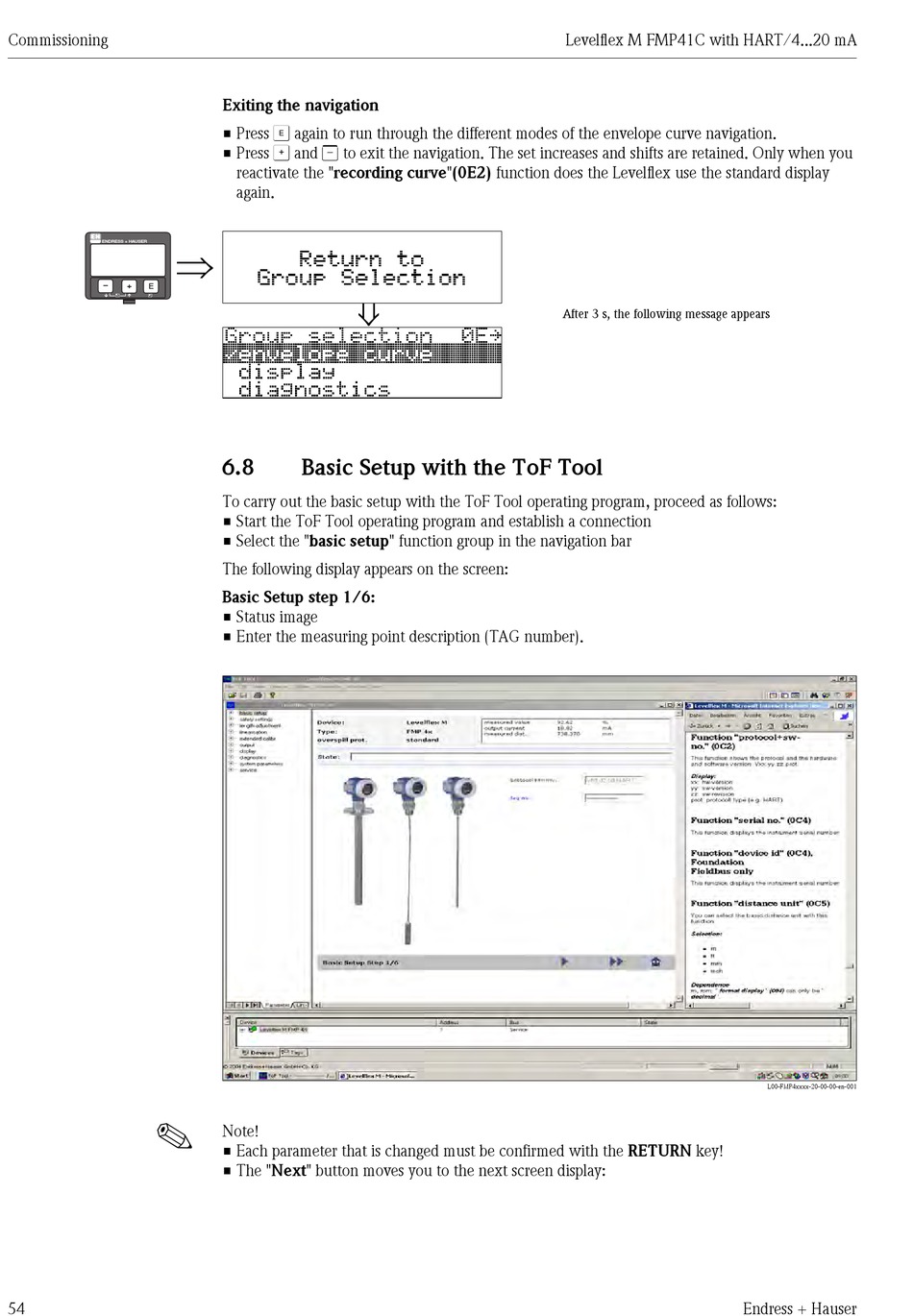

Basic Setup With The Tof Tool - Endress+Hauser Levelflex M FMP41C Operating Instructions Manual

Commissioning
⇒
ENDRESS + HAUSER
–
+ E
!
54
Exiting the navigation
F
• Press again to run through the different modes of the envelope curve navigation.
O S
• Press and to exit the navigation. The set increases and shifts are retained. Only when you
reactivate the "recording curve"(0E2) function does the Levelflex use the standard display
again.
⇓
6.8

Basic Setup with the ToF Tool

To carry out the basic setup with the ToF Tool operating program, proceed as follows:
• Start the ToF Tool operating program and establish a connection
• Select the "basic setup" function group in the navigation bar
The following display appears on the screen:
Basic Setup step 1/6:
• Status image
• Enter the measuring point description (TAG number).
Note!
• Each parameter that is changed must be confirmed with the RETURN key!
• The "Next" button moves you to the next screen display:
Levelflex M FMP41C with HART/4...20 mA
After 3 s, the following message appears
L00-FMP4xxxx-20-00-00-en-001
