Description

3.1 Layout

NOTE
This section
FRPSRQHQWV UHOHYDQW IRU IXO¿OOLQJ WKH WDVNV
described in this operating manual.

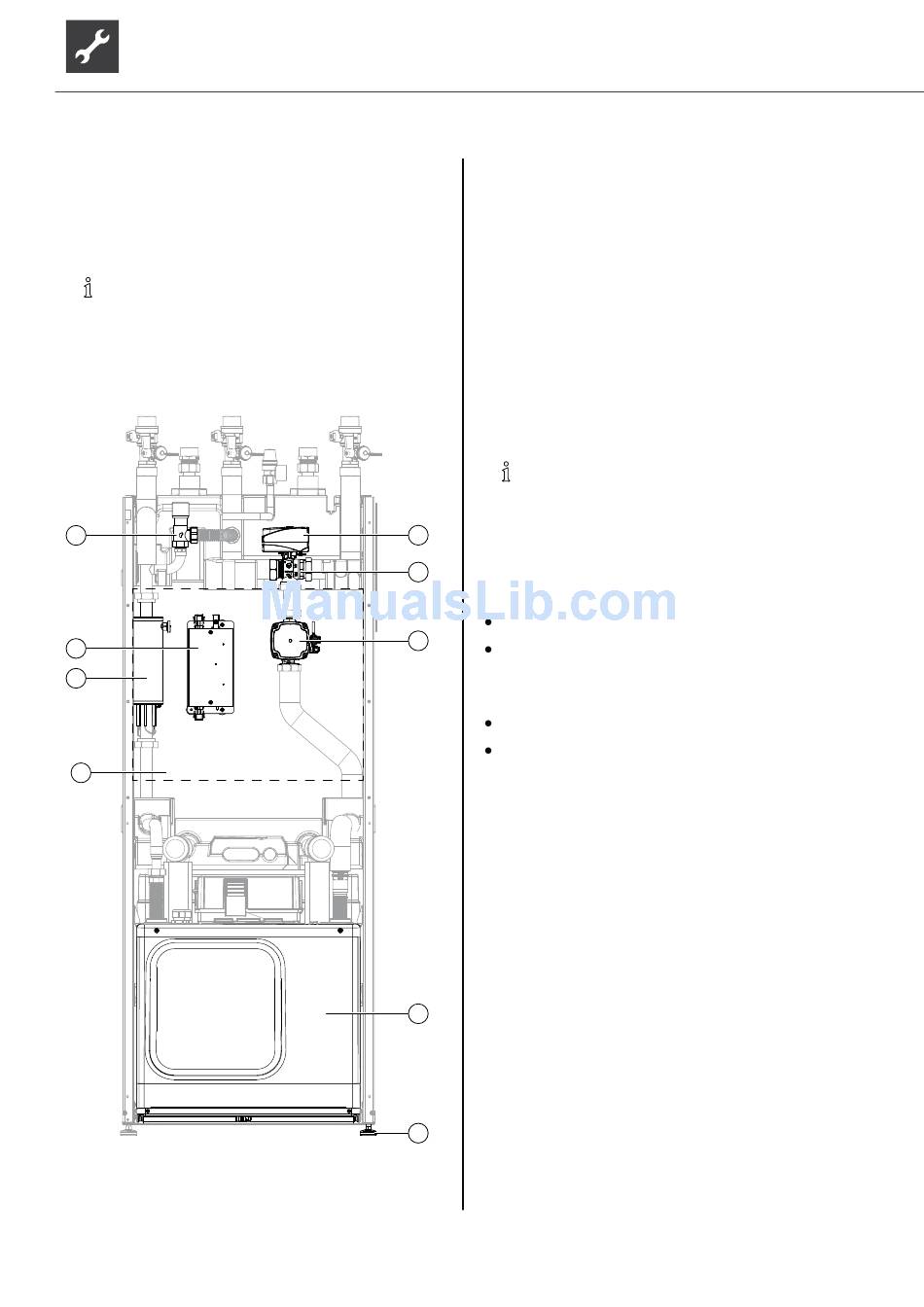

Housing with unit components
1
9
8
7
6
Subject to change without notice | 83057000cUK – Translation into English of the original German operating manual | ait-deutschland GmbH
essentially names the
2
3
4
5
6
 2YHUÀRZ YDOYH
2 Valve motor
3 3-way changeover valve, heating
circuit/domestic hot water
4 Heating circuit/hot water circulation pump
5 Module box
6 Height-adjustable foot (4x)
7 Electrical switch cabinet
8 Heating element
9 Manual output control heating
element (MLRH), accessories
NOTE
The diagram shows a unit with an output
FDSDFLW\ RI XS WR  N:.
Rating plate
Rating plates are attached to the following places on
the unit:
top of the right-hand outer panel
left-hand side, on the module box
The rating plate contains the following information at
the top:
Unit type, product number
Serial number
The rating plate also contains an overview of the
most important technical data.
.
