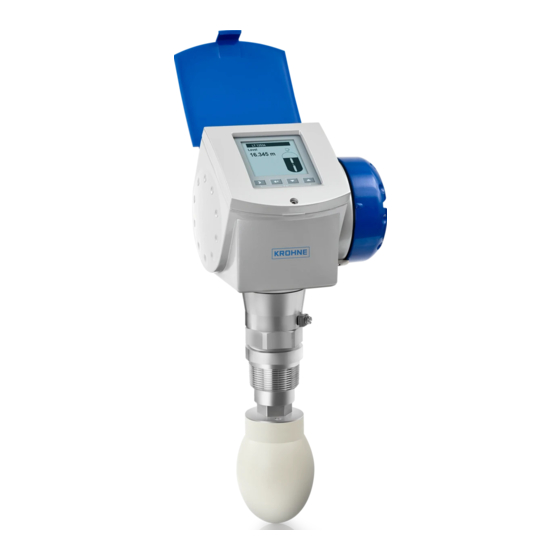

Non-contact radar (fmcw) level meter for solids
Hide thumbs Also See for OPTIWAVE 6300 C:
Table of Contents

Advertisement

Quick Links

Download this manual
OPTIWAVE 6300 C
OPTIWAVE 6300 C
OPTIWAVE 6300 C
OPTIWAVE 6300 C
Non-contact Radar (FMCW) Level Meter for solids
for distance, level, volume and mass measurement of solids
© KROHNE 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en
Handbook
Handbook
Handbook
Handbook

Advertisement

Table of Contents
loading

Related Manuals for KROHNE OPTIWAVE 6300 C

Summary of Contents for KROHNE OPTIWAVE 6300 C

  • Page 1 OPTIWAVE 6300 C OPTIWAVE 6300 C OPTIWAVE 6300 C Handbook Handbook Handbook Handbook Non-contact Radar (FMCW) Level Meter for solids for distance, level, volume and mass measurement of solids © KROHNE 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en...
  • Page 2 All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written authorisation of KROHNE Messtechnik GmbH. Subject to change without notice. Copyright 2011 by KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany) www.krohne.com 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en...

  • Page 3: Table Of Contents

    CONTENTS OPTIWAVE 6300 C 1 Safety instructions 1.1 Intended use ........................7 1.2 Certification ........................7 1.3 Electromagnetic compatibility ..................7 1.4 Radio approvals ........................ 8 1.4.1 European Union (EU)....................... 8 1.4.2 U.S.A. and Canada........................9 1.5 Safety instructions from the manufacturer ..............9 1.5.1 Copyright and data protection ....................
  • Page 4 CONTENTS OPTIWAVE 6300 C 4 Electrical connections 4.1 Safety instructions......................32 4.2 Electrical installation: outputs 1 and 2 ................32 4.2.1 Non-Ex devices ........................33 4.2.2 Devices for hazardous locations................... 33 4.2.3 PROFIBUS PA........................34 4.2.4 FOUNDATION Fieldbus ......................34 4.3 Protection category ......................
  • Page 5 CONTENTS OPTIWAVE 6300 C 7 Service 7.1 Periodic maintenance..................... 80 7.2 How to clean the top surface of the device ..............80 7.3 How to clean horn antennas under process conditions ..........80 7.4 How to replace device components ................81 7.4.1 Service warranty ........................
  • Page 6 CONTENTS OPTIWAVE 6300 C 10 Appendix 10.1 Order form ........................122 10.1.1 Device data ........................122 10.1.2 Rating data ........................123 10.1.3 Contact data ........................123 10.2 Glossary ........................124 11 Notes www.krohne.com 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en...

  • Page 7: Safety Instructions

    SAFETY INSTRUCTIONS OPTIWAVE 6300 C 1.1 Intended use This radar level transmitter measures distance, level, mass, volume and reflectivity of granulates and powders. It can be installed on silos and bunkers. 1.2 Certification DANGER! For devices used in hazardous areas, additional safety notes apply; please refer to the Ex documentation.

  • Page 8: Radio Approvals

    SAFETY INSTRUCTIONS OPTIWAVE 6300 C 1.4 Radio approvals 1.4.1 European Union (EU) LEGAL NOTICE! This level transmitter is intended for installation in closed metallic tanks. It meets the requirements of the R & TTE (Radio Equipment and Telecommunications Terminal Equipment) Directive 1999/05/EC for use in the member countries of the EU.

  • Page 9: And Canada

    SAFETY INSTRUCTIONS OPTIWAVE 6300 C 1.4.2 U.S.A. and Canada LEGAL NOTICE! This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.

  • Page 10: Disclaimer

    SAFETY INSTRUCTIONS OPTIWAVE 6300 C 1.5.2 Disclaimer The manufacturer will not be liable for any damage of any kind by using its product, including, but not limited to direct, indirect or incidental and consequential damages. This disclaimer does not apply in case the manufacturer has acted on purpose or with gross negligence.

  • Page 11: Product Liability And Warranty

    SAFETY INSTRUCTIONS OPTIWAVE 6300 C 1.5.3 Product liability and warranty The operator shall bear responsibility for the suitability of the device for the specific purpose. The manufacturer accepts no liability for the consequences of misuse by the operator. Improper installation and operation of the devices (systems) will cause the warranty to be void. The respective "Standard Terms and Conditions"...

  • Page 12: Warnings And Symbols Used

    SAFETY INSTRUCTIONS OPTIWAVE 6300 C 1.5.5 Warnings and symbols used Safety warnings are indicated by the following symbols. DANGER! This information refers to the immediate danger when working with electricity. DANGER! This warning refers to the immediate danger of burns caused by heat or hot surfaces.

  • Page 13: Device Description

    DEVICE DESCRIPTION OPTIWAVE 6300 C 2.1 Scope of delivery INFORMATION! Check the packing list to check if you received completely all that you ordered. Scope of delivery - horn antenna Figure 2-1: Scope of delivery - horn antenna 1 Signal converter and antenna in compact version...
  • Page 14 DEVICE DESCRIPTION OPTIWAVE 6300 C Scope of delivery - Drop antenna Figure 2-2: Scope of delivery - Drop antenna 1 Signal converter and antenna in compact version 2 Antenna extensions (option) and o-ring for each antenna extension 3 Quick Start...

  • Page 15: Device Description

    DEVICE DESCRIPTION OPTIWAVE 6300 C 2.2 Device description This device is a 24 GHz FMCW-radar level transmitter. It is a non-contact technology and is 2- wire loop-powered. It is designed to measure the distance, level, mass, volume and reflectivity of granulates and powders.

  • Page 16: Visual Check

    DEVICE DESCRIPTION OPTIWAVE 6300 C 2.3 Visual Check WARNING! If the display screen glass is broken, do not touch. INFORMATION! Inspect the cartons carefully for damage or signs of rough handling. Report damage to the carrier and to the local office of the manufacturer.

  • Page 17: Nameplates

    DEVICE DESCRIPTION OPTIWAVE 6300 C 2.4 Nameplates INFORMATION! Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate. 2.4.1 Non-Ex nameplate Figure 2-5: Non-Ex nameplate 1 Indicator arrow to cable entry / cable entry size.

  • Page 18: Installation

    INSTALLATION OPTIWAVE 6300 C 3.1 Notes on installation INFORMATION! Inspect the cartons carefully for damage or signs of rough handling. Report damage to the carrier and to the local office of the manufacturer. INFORMATION! Check the packing list to check if you received completely all that you ordered.

  • Page 19: Transport

    INSTALLATION OPTIWAVE 6300 C 3.3 Transport Figure 3-2: How to lift the device 1 Remove the converter before you lift the device with a hoist. WARNING! Lift the device carefully to prevent damage to the antenna. 3.4 Pre-installation requirements INFORMATION! Obey the precautions that follow to make sure that the device is correctly installed.

  • Page 20: How To Prepare The Silo Before You Install The Device

    INSTALLATION OPTIWAVE 6300 C 3.5 How to prepare the silo before you install the device CAUTION! To avoid measuring errors and device malfunction, obey these precautions. 3.5.1 Pressure and temperature ranges Figure 3-3: Pressure and temperature ranges 1 Flange temperature ®...

  • Page 21: Theoretical Data For Nozzle Position

    INSTALLATION OPTIWAVE 6300 C 3.5.2 Theoretical data for nozzle position CAUTION! Follow these recommendations to make sure that the device measures correctly. Figure 3-4: Recommended nozzle position for solids 1 Position of the process fitting from the silo wall, r/2 (for DN80, DN100 or DN150 horn antennas, and DN80 or DN150...
  • Page 22 INSTALLATION OPTIWAVE 6300 C Figure 3-5: Product inlets 1 The device is in the correct position. 2 The device is too near to the product inlet. Figure 3-6: More than 1 FMCW radar level meter can be operated in a silo More than 1 FMCW radar level meter can be operated in a silo.

  • Page 23: Installation Recommendations For Solids

    INSTALLATION OPTIWAVE 6300 C 3.6 Installation recommendations for solids CAUTION! Do not install the device above objects in the silo (ladder, supports etc.). Objects in the silo can cause parasite radar signals. If there are parasite radar signals, the device will not measure correctly.

  • Page 24: How To Install The Device On The Silo

    INSTALLATION OPTIWAVE 6300 C 3.7 How to install the device on the silo 3.7.1 How to install a device with a flange connection Equipment needed: • Device • Gasket (not supplied) • Nuts and bolts (not supplied) • Wrench (not supplied)

  • Page 25: How To Install A Device With A Threaded Connection

    INSTALLATION OPTIWAVE 6300 C Figure 3-9: How to attach the device if the antenna is larger than the process connection Equipment needed: • 3 mm Allen wrench (not supplied) WARNING! If you attach the antenna in a closed space, make sure that there is a good airflow in the area.
  • Page 26 INSTALLATION OPTIWAVE 6300 C Requirements for threaded connections Figure 3-10: Threaded connection If the antenna is smaller than the process connection: • Make sure the silo connection is level. • Make sure that you use the applicable gasket for the connection dimensions and the process.

  • Page 27: How To Attach Antenna Extensions

    INSTALLATION OPTIWAVE 6300 C WARNING! If you attach the antenna in a closed space, make sure that there is a good airflow in the area. Make sure that a person not in the silo can always hear you. INFORMATION! If the antenna is larger than the process connection, we recommend that you use an antenna extension.
  • Page 28 INSTALLATION OPTIWAVE 6300 C • Attach the antenna extensions 1 below the flange. • Attach the antenna 2. • Make sure the antenna extensions are fully engaged. • Use a 3 mm Allen wrench to tighten the locking screws 3.

  • Page 29: How To Turn Or Remove The Signal Converter

    INSTALLATION OPTIWAVE 6300 C ® Use the display screen or HART communication (PACTware™). Antenna extension = antenna extension length × number of extensions. • If you changed the antenna extension value in Supervisor Supervisor mode, also change the blocking Supervisor Supervisor distance value.

  • Page 30: How To Attach The Weather Protection To The Device

    INSTALLATION OPTIWAVE 6300 C 3.7.5 How to attach the weather protection to the device Equipment needed: • Device. • Weather protection (option). • 10 mm wrench (not supplied). The overall dimensions of the weather protection are on page 104. Figure 3-15: Installation of the weather protection •...

  • Page 31: How To Open The Weather Protection

    INSTALLATION OPTIWAVE 6300 C 3.7.6 How to open the weather protection Equipment needed: • Weather protection attached to the device. • Large slotted tip screwdriver (not supplied). Figure 3-16: How to open the weather protection 1 Weather protection in its closed position 2 Weather protection in its open position.

  • Page 32: Electrical Connections

    ELECTRICAL CONNECTIONS OPTIWAVE 6300 C 4.1 Safety instructions DANGER! All work on the electrical connections may only be carried out with the power disconnected. Take note of the voltage data on the nameplate! DANGER! Observe the national regulations for electrical installations! DANGER! For devices used in hazardous areas, additional safety notes apply;...

  • Page 33: Non-Ex Devices

    ELECTRICAL CONNECTIONS OPTIWAVE 6300 C Procedure: • Remove the housing terminal compartment cover 1. • Connect the wires to the device. Obey the national electrical codes. • Make sure that the polarity of the wires is correct. • Attach the ground to 4 or 7. Both terminals are technically equivalent.

  • Page 34: Profibus Pa

    ELECTRICAL CONNECTIONS OPTIWAVE 6300 C 4.2.3 PROFIBUS PA For electrical data for PROFIBUS PA networks, refer to the PROFIBUS PA supplement. You can find this documentation on the CD-ROM delivered with the device or it can be downloaded free of charge from the website (Downloadcenter).

  • Page 35: Networks

    ELECTRICAL CONNECTIONS OPTIWAVE 6300 C 4.4 Networks 4.4.1 General information ® ® The device uses the HART communication protocol. This protocol agrees with the HART Communication Foundation standard. The device can be connected point-to-point. It can also operate in a multi-drop network of up to 15 devices.

  • Page 36: Multi-Drop Networks

    ELECTRICAL CONNECTIONS OPTIWAVE 6300 C 4.4.3 Multi-drop networks Figure 4-5: Multi-drop network (non-Ex) 1 Address of the device (n+1 for multidrop networks) 2 Address of the device (1 for multidrop networks) ® 3 4 mA + HART ® 4 Resistor for HART...

  • Page 37: Fieldbus Networks

    ELECTRICAL CONNECTIONS OPTIWAVE 6300 C 4.4.4 Fieldbus networks FOUNDATION Fieldbus™ network (non-Ex) Figure 4-6: FOUNDATION Fieldbus™ network (non-Ex) 1 Field device 2 Junction box 3 H1 network 4 H1/HSE converter 5 High Speed Ethernet (HSE) 6 Workstation INFORMATION! It is necessary to have a separate power supply to energize devices with the FOUNDATION ™...
  • Page 38 ELECTRICAL CONNECTIONS OPTIWAVE 6300 C PROFIBUS PA/DP network (non-Ex) Figure 4-7: PROFIBUS PA/DP network (non-Ex) 1 Field device 2 Bus termination 3 PROFIBUS PA bus segment 4 Segment coupler (PA/DP link) 5 PROFIBUS DP bus line 6 Control system (PLC / Class 1 master device)

  • Page 39: Start-Up

    START-UP OPTIWAVE 6300 C 5.1 Start-up checklist Check these points before you energize the device: • Are all the wetted components (antenna, flange and gaskets) resistant to the product in the silo? • Does the information on the signal converter nameplate agree with the operating data? •...

  • Page 40: Digital Display Screen

    START-UP OPTIWAVE 6300 C 5.3 Digital display screen 5.3.1 Local display screen layout Figure 5-1: Local display screen layout 1 Error icon 2 Tag number or menu name 3 Selected menu item (gray text cannot be selected) : scroll up/scroll down 5 Keypad buttons (refer to the table below) 5.3.2 Keypad buttons...

  • Page 41: How To Start The Device

    START-UP OPTIWAVE 6300 C 5.3.4 How to start the device • Connect the converter to the power supply. • Energize the converter. After 30 seconds the screen will display "booting up", "starting up" and then the default screen will appear.

  • Page 42: Remote Communication With The Ams™ Device Manager

    START-UP OPTIWAVE 6300 C Figure 5-2: Screen from the PACTware™ user interface 1 DTM menu 2 Basic measurement information: level, current output and device status 3 Information for device identification 4 Configuration summary 5.5 Remote communication with the AMS™ Device Manager The AMS™...

  • Page 43: Operation

    OPERATION OPTIWAVE 6300 C 6.1 User modes There are 3 modes of operation: • Operator. • Supervisor. • Service. 6.2 Operator mode The operator can choose what information to display. This section shows you: • What each button does in operator mode.
  • Page 44 OPERATION OPTIWAVE 6300 C Screens in operator mode Text and image Go to % current output Go to Text screen Go to screen screen Level > Level > Level > (Text and image) Distance > Distance > Distance > (Text and...

  • Page 45: Supervisor Mode

    OPERATION OPTIWAVE 6300 C 6.3 Supervisor mode 6.3.1 General notes Configure your device in Supervisor Supervisor mode. You can: Supervisor Supervisor • Use the Quick Setup Quick Setup Quick Setup menus to configure your device quickly. For more data about quick setup...

  • Page 46: Menu Overview

    OPERATION OPTIWAVE 6300 C 6.3.3 Menu overview A Quick Setup Setup Mode Quick Link 1 (default: Error Records) Quick Link 2 (default: Measurement Quality) Quick Link 3 (default: Language) Quick Link 4 (default: Length Unit) Quick Link 5 (default: Display Mode)

  • Page 47: Keypad Functions

    OPERATION OPTIWAVE 6300 C 6.3.4 Keypad functions Menu navigation > Figure 6-1: Menu navigation 1 Menu selection bar 2 Header bar 3 Menu list 4 Menu item that is not available (in gray text) This is what you see when you are in the list of menus in supervisor mode. The functions of the...
  • Page 48 OPERATION OPTIWAVE 6300 C Lists of parameters in menu items > Figure 6-2: Lists of parameters in menu items 1 Parameter selection bar 2 Menu name 3 Parameter used at this time This is what you see when you choose a menu item that has a list of parameters. The functions of...
  • Page 49 OPERATION OPTIWAVE 6300 C Values in menu items Figure 6-3: Values in menu items 1 Maximum value 2 Minimum value 3 Cursor on the digit to be changed 4 Menu name 5 Illustration of menu item 6 Error message This is what you see when you choose a menu item that has a value. The functions of the buttons...

  • Page 50: Function Description

    OPERATION OPTIWAVE 6300 C If you press the buttons for 1 second, you can use these hotkey functions: Hotkey functions in supervisor mode Button Description Function Right Create a quick link Enter Down Screen displays information in English Esc (Escape)
  • Page 51 OPERATION OPTIWAVE 6300 C Menu Step Function Function description Selection list Default Application Type The conditions in which Medium slope, Flat Medium the device is used. If the surface, Steep slope slope surface of the product is flat, select "Flat surface".
  • Page 52 OPERATION OPTIWAVE 6300 C Menu Step Function Function description Selection list Default Do you want to If you save this data, the Save, Cancel Save save the device will use it when it spectrum? measures the silo contents. A.1.4 Conversion...
  • Page 53 OPERATION OPTIWAVE 6300 C Menu Step Function Function description Selection list Default Mass Table A table that converts product level to product mass. If you selected "Yes" in step 4, make entries in the table in volume units. Press to select a line and press >...
  • Page 54 OPERATION OPTIWAVE 6300 C Menu Step Function Function description Selection list Default Output Range This sets the effective 3.8…20.5 mA 4…20 mA range of output 1 with or (NAMUR), 4…20 mA without over-run. Error Handling This sets the behaviour 3.6 mA, 22 mA, Hold...
  • Page 55 OPERATION OPTIWAVE 6300 C Menu Step Function Function description Selection list Default Quick Link 2 Direct link to an item in Go to a function in the Measure- the Advanced Setup Advanced Setup menu ment menu and press > for 1 Quality second.
  • Page 56 OPERATION OPTIWAVE 6300 C Menu Function Function description Selection list Default B.2.1 Outputs Analogue output settings. This Read only includes assigned functions, 4 … 20 mA scale settings, error ® handling and HART parameters. B.2.2 15 Min Log A log of output values for the Read only last 15 minutes.
  • Page 57 OPERATION OPTIWAVE 6300 C Menu Function Function description Selection list Default C.1.1 Installation The installation on the silo for Metal / concrete silo, Plastic Metal / Type the device. silo, Free Air Application concrete silo C.1.2 Tank Height / "Tank height" is the distance...
  • Page 58 OPERATION OPTIWAVE 6300 C Menu Function Function description Selection list Default C.1.11 Tank Bottom Offset relating to a reference min-max: 0 m / 0 ft Offset location (level). The device -tank height...3000 m / reference point for this -tank height...9843 ft...
  • Page 59 OPERATION OPTIWAVE 6300 C Menu Function Function description Selection list Default C.1.17 Empty Spect. This function starts and stops On, Off OnOff interference signal filter. Interference signals are the result of fixed and moving obstacles inside the silo. If you must do a spectrum analysis, record an empty spectrum first.
  • Page 60 OPERATION OPTIWAVE 6300 C Menu Function Function description Selection list Default C.3.5 Error Handling This sets the behaviour of 3.6 mA, 22 mA, Hold 22 mA current output 1 if an error occurs. Hold means that the output current stays at the value where the error occurred.
  • Page 61 OPERATION OPTIWAVE 6300 C Menu Function Function description Selection list Default C.5.1.2 Display Mode The display screen status will Disable, Auto-Off, Default Disable change after the time given in Screen C.5.1.3. (time delay). Disable Disable Disable Disable switches off this functionality,...
  • Page 62 OPERATION OPTIWAVE 6300 C Menu Function Function description Selection list Default C.6.3 Restart If the device is not functioning properly, this menu item will restart the device. Press ^ to confirm. 1 Units and range depend on the output function, length unit and volume unit selected. See also the table of data depen- dencies for the 4 mA settings in this section.

  • Page 63: Further Information On Device Configuration

    OPERATION OPTIWAVE 6300 C 6.4 Further information on device configuration 6.4.1 Quick Links If you frequently use a menu item, you can create a Quick Link. This lets you quickly find and configure items in the advanced setup menu. Five Quick Link memory spaces are available in the...

  • Page 64: Protection Of The Device Settings

    OPERATION OPTIWAVE 6300 C 6.4.2 Protection of the device settings The Passwords Passwords Passwords menu lets you change the supervisor password. Passwords How to change the supervisor password • Go to Supervisor > Advanced setup > Device setup > Passwords > Supervisor Supervisor >...

  • Page 65: Network Configuration

    OPERATION OPTIWAVE 6300 C 6.4.3 Network configuration INFORMATION! For more data, refer to Networks on page 35 ® ® The device uses HART communication to send information to HART -compatible equipment. It can operate in either point-to-point or multidrop mode. The device will communicate in ®...

  • Page 66: Linearisation

    OPERATION OPTIWAVE 6300 C 6.4.4 Linearisation You can use the linearisation table given in function to make sure that readings are consistently accurate. • Go to Supervisor > Advanced Setup > Installation Setup > Linearisation Table Supervisor > Advanced Setup > Installation Setup > Linearisation Table.

  • Page 67: Level Measurement

    OPERATION OPTIWAVE 6300 C Figure 6-5: Distance measurement 1 Tank Height (C.1.2) 2 Reference Offset (C.1.10) 3 Blocking Distance (C.1.9) 4 4 mA Setting (C.3.2 or C.4.2) 5 20 mA Setting (C.3.3 or C.4.3) 6 Maximum effective measuring range 7 Non-measurement zone...

  • Page 68: How To Configure The Device To Measure Volume Or Mass

    OPERATION OPTIWAVE 6300 C CAUTION! If the level for the 20 mA is set in the blocking distance, the device will not be able to use the full current output range. Figure 6-6: Level measurement 1 Tank Bottom Offset (C.1.11) 2 Tank Height (C.1.2)

  • Page 69: How To Use The Empty Spectrum Function To Filter Parasite Signals

    OPERATION OPTIWAVE 6300 C INFORMATION! You can also create customized length and conversion units (free units) in the Conversion Conversion Conversion Conversion setup procedure. INFORMATION! When you create a table, get more conversion data for parts of the silo where there are: Surfaces with curves.
  • Page 70 OPERATION OPTIWAVE 6300 C Figure 6-8: How to filter radar signal interference 1 Empty silo before the device uses the empty spectrum scan (with a graph of reflections shown) 2 Partially filled silo before the device uses the empty spectrum scan (with a graph of reflections shown)

  • Page 71: How To Measure Correctly In Silos With Curved Or Conical Bottoms

    OPERATION OPTIWAVE 6300 C 6.4.9 How to measure correctly in silos with curved or conical bottoms It is possible that the device cannot find the bottom of the silo if it is installed in a silo with a dish-shaped or conical bottom. The form of the silo bottom causes a delayed radar reflection and the device will display the error message "Measurement is lost in the tank bottom".

  • Page 72: Service Mode

    OPERATION OPTIWAVE 6300 C Figure 6-9: Signal screen and the silo bottom reflection 1 Tank bottom offset (menu item C.1.11) 2 Tank height (menu item C.1.2) 3 Signal amplitude (in dB) 4 True position of the silo bottom 5 Offset position of the silo bottom...

  • Page 73: Errors

    OPERATION OPTIWAVE 6300 C 6.6 Errors 6.6.1 General information Indication of errors When the device senses an error condition, it displays an error symbol in the top left corner of the display screen. Figure 6-10: Indication of errors 1 Error/ warning symbol Enter the supervisor mode to either: •...
  • Page 74 OPERATION OPTIWAVE 6300 C How to check the measurement quality • Enter supervisor mode. • Go to Test > Information > Measurement Quality Test > Information > Measurement Quality Test > Information > Measurement Quality. Test > Information > Measurement Quality This shows the status of device errors at this time.
  • Page 75 OPERATION OPTIWAVE 6300 C How to find the error records • Enter supervisor mode. • Go to Test > Information > Error Records Test > Information > Error Records Test > Information > Error Records. Test > Information > Error Records •...

  • Page 76: Error Handling

    OPERATION OPTIWAVE 6300 C How to get more data about the error (Error Records function) • Select an error log and press ^ ^ ^ ^ to read the help text. Typical data is given in the illustration that follows.
  • Page 77 OPERATION OPTIWAVE 6300 C Description of errors and corrective actions Error Message Error Description Corrective action code Current output Current output saturated at The output is at its maximum Fill the silo or remove some maximum value output value (20 or 20.5 mA)
  • Page 78 OPERATION OPTIWAVE 6300 C Error Message Error Description Corrective action code Measurement is lost in the The silo is possibly empty. If you fill the silo, the device tank bottom The device will display the silo will measure again. bottom measurement.
  • Page 79 OPERATION OPTIWAVE 6300 C Error Message Error Description Corrective action code Plausible peak is not The signal peak is not found Check the device, silo and the available within the measuring window process. Reconfigure the that filters the signals device and record a new received by the antenna.

  • Page 80: Service

    SERVICE OPTIWAVE 6300 C 7.1 Periodic maintenance No maintenance is necessary. 7.2 How to clean the top surface of the device WARNING! Do not let more than 5 mm / 0.2 of dust collect on the top surface of the device. This is a ¨...

  • Page 81: How To Replace Device Components

    SERVICE OPTIWAVE 6300 C 7.4 How to replace device components 7.4.1 Service warranty Maintenance is not necessary for most applications. Servicing by the customer is limited by warranty to How to • The removal and installation of the signal converter housing. For more data, refer to turn or remove the signal converter on page 29.

  • Page 82: Replacement Of The Display Cover

    SERVICE OPTIWAVE 6300 C 7.4.2 Replacement of the display cover Figure 7-1: Removal of the device display cover www.krohne.com 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en...
  • Page 83 SERVICE OPTIWAVE 6300 C Equipment needed (not supplied): • Slotted tip screwdriver. • 3 mm Allen wrench (for steps 2 and 4). WARNING! Disconnect the power supply How to remove the display 1 Remove the 2 pins on the blue sun cover with a slotted tip screwdriver. Remove the sun cover.

  • Page 84: Replacement Of The Complete Electonic Module

    SERVICE OPTIWAVE 6300 C 7.4.3 Replacement of the complete electonic module Figure 7-2: Removal of the complete electronic module www.krohne.com 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en...
  • Page 85 SERVICE OPTIWAVE 6300 C Equipment needed (not supplied): • 3 mm Allen wrench (for steps 1 and 4). How to remove the back end and microwave unit 1 Loosen the screw on the display. Open the display. 2 Disconnect the power supply connector from the electronics block.

  • Page 86: Replacement Of The Terminal Module

    SERVICE OPTIWAVE 6300 C 7.4.4 Replacement of the terminal module Figure 7-3: Removal of the terminal module www.krohne.com 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en...
  • Page 87 SERVICE OPTIWAVE 6300 C Equipment needed (not supplied): • 2.5 mm Allen wrench for Aluminium (painted) housings; 3 mm Allen wrench for Stainless Steel housings (for step 1). • Small slotted tip screwdriver (for step 3). • TORX T10 wrench (for step 5).

  • Page 88: Spare Parts Availability

    SERVICE OPTIWAVE 6300 C 7.5 Spare parts availability The manufacturer adheres to the basic principle that functionally adequate spare parts for each device or each important accessory part will be kept available for a period of 3 years after delivery of the last production run for the device.
  • Page 89 SERVICE OPTIWAVE 6300 C Part numbers for spare parts Item Description Quantity Part reference number Complete electronic module XF6340000000040000 Screws for the combined back end and HF modules F3177360000 HMI cover and cable (alumnium housing) XF6340000000050100 HMI cover and cable (stainless steel housing)

  • Page 90: List Of Accessories

    SERVICE OPTIWAVE 6300 C 7.5.2 List of accessories Figure 7-5: Accessories www.krohne.com 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en...
  • Page 91 SERVICE OPTIWAVE 6300 C Part numbers for accessories Item Description Quantity Part reference number Plastic sun cover XF634000000000000A Pins for the plastic sun cover F3179990000 Stainless steel weather protection XF6340000000000001 Blind cover (with a gasket and screws) XF634000000000000B Gasket for the blind cover...

  • Page 92: Availability Of Services

    SERVICE OPTIWAVE 6300 C 7.6 Availability of services The manufacturer offers a range of services to support the customer after expiration of the warranty. These include repair, maintenance, technical support and training. INFORMATION! For more precise information, please contact your local representative.

  • Page 93: Form (For Copying) To Accompany A Returned Device

    SERVICE OPTIWAVE 6300 C 7.7.2 Form (for copying) to accompany a returned device Company: Address: Department: Name: Tel. no.: Fax no.: Manufacturer's order no. or serial no.: The device has been operated with the following medium: This medium is: water-hazardous...

  • Page 94: Technical Data

    TECHNICAL DATA OPTIWAVE 6300 C 8.1 Measuring principle A radar signal is emitted via an antenna, reflected from the product surface and received after a time t. The radar principle used is FMCW (Frequency Modulated Continuous Wave). The FMCW-radar transmits a high frequency signal whose frequency increases linearly during the measurement phase (called the frequency sweep).

  • Page 95: Technical Data

    TECHNICAL DATA OPTIWAVE 6300 C 8.2 Technical data INFORMATION! • The following data is provided for general applications. If you require data that is more relevant to your specific application, please contact us or your local representative. Additional information (certificates, special tools, software,...) and complete product •...

  • Page 96: Measurement Accuracy

    TECHNICAL DATA OPTIWAVE 6300 C Measurement accuracy Resolution 1 mm / 0.04¨ Repeatability ±5 mm / ±0.2¨ Accuracy ±10 mm / ±0.4¨, when distance < 10 m / 33 ft; ±0.1% of measured distance, when distance > 10 m / 33 ft Reference conditions acc.
  • Page 97 TECHNICAL DATA OPTIWAVE 6300 C Installation conditions Process connection size The nominal diameter (DN) should be equal to or larger than the antenna diameter. If the nominal diameter (DN) is smaller than the antenna, either: - provide the means to adapt the device to a larger process connection on the silo...
  • Page 98 TECHNICAL DATA OPTIWAVE 6300 C Electrical connections Power supply Terminals output 1 - Non-Ex / Ex i: Terminals output 1 - Non-Ex / Ex i: Terminals output 1 - Non-Ex / Ex i: Terminals output 1 - Non-Ex / Ex i: 14…30 VDC;...
  • Page 99 TECHNICAL DATA OPTIWAVE 6300 C Physical layer types Standard power signaling, bus powered, non I.S. Other features Bus interface with integrated reverse polarity protection Device power supply (24 V input) 18...30 VDC Bus power supply 9...32 VDC (non-Ex); 9...17.5 VDC (intrinsically-safe)
  • Page 100 TECHNICAL DATA OPTIWAVE 6300 C CEPEL / INMETRO BR-Ex ia IIC T6…T3 Ga CEPEL-EX-1996/11X Ex ia IIIC T95°C Da IP67 BR-Ex d[ia] IIC T6…T3 Gb Ex t[ia Da] IIIC T95°C Db IP67 Other standards and approvals Other standards and approvals...

  • Page 101: Antenna Selection

    TECHNICAL DATA OPTIWAVE 6300 C 8.3 Antenna selection This graph shows which antenna to select for the application based on: • D, the measuring range and • ε , is the dielectric constant of the product being measured Figure 8-2: Selection of antenna for solid applications (graph of distance in m against ε...

  • Page 102: Guidelines For Maximum Operating Pressure

    TECHNICAL DATA OPTIWAVE 6300 C 8.4 Guidelines for maximum operating pressure WARNING! Make sure that the devices are used within their operating limits. Figure 8-4: Pressure / temperature de-rating (EN 1092-1), flange and threaded connection, in °C and barg 380 400 Figure 8-5: Pressure / temperature de-rating (EN 1092-1), flange and threaded connections, in °F and psig...
  • Page 103 TECHNICAL DATA OPTIWAVE 6300 C INFORMATION! CRN certification CRN certification CRN certification CRN certification There is a CRN certification option for devices with process connections that agree with ASME standards. This certification is necessary for all devices that are installed on a pressure vessel and used in Canada.

  • Page 104: Dimensions And Weights

    TECHNICAL DATA OPTIWAVE 6300 C 8.5 Dimensions and weights Housing Figure 8-8: Housing dimensions 1 Housing front view 2 Housing side view Dimensions and weights in mm and kg Dimensions [mm] Weights [kg] Housing 158.5 1 If fitted with standard cable glands...
  • Page 105 TECHNICAL DATA OPTIWAVE 6300 C Weather protection Figure 8-9: Dimensions of the weather protection option 1 Weather protection, back view 2 Weather protection, left side view Dimensions and weights in mm and kg Dimensions [mm] Weights [kg] Weather 231.5 protection...
  • Page 106 TECHNICAL DATA OPTIWAVE 6300 C DN80/3¨ horn antenna versions Figure 8-10: DN80/3¨ horn antenna versions 1 DN80/3¨ horn antenna with G 1½ or 1½ NPT thread connection 2 DN80/3¨ horn antenna with flange connection 3 Antenna purging system (supplied with ¼ NPTF connection)
  • Page 107 TECHNICAL DATA OPTIWAVE 6300 C DN100/4¨ horn antenna versions Figure 8-11: DN100/4¨ horn antenna versions 1 DN100/4¨ horn antenna with G 1½ or 1½ NPT thread connection 2 DN100/4¨ horn antenna with flange connection 3 Antenna purging system (supplied with ¼ NPTF connection)
  • Page 108 TECHNICAL DATA OPTIWAVE 6300 C Sheet metal horn antenna versions Figure 8-12: DN80/3¨, DN100/4¨, DN150/6¨ and DN200/8¨ sheet metal horn antenna versions 1 Sheet metal horn antenna (DN80/3¨, DN100/4¨, DN150/6¨ or DN200/8¨) with G 1½ or 1½ NPT thread connection 2 Sheet metal horn antenna (DN80/3¨, DN100/4¨, DN150/6¨...
  • Page 109 TECHNICAL DATA OPTIWAVE 6300 C Dimensions and weights in mm and kg Dimensions [mm] Weights [kg] Øi Thread DN80/3¨ connection DN100/4¨ DN150/6¨ DN200/8¨ Flange DN80/3¨ connection DN100/4¨ DN150/6¨ 14.4 DN200/8¨ 15.0 1 If fitted with standard cable glands 2 Additional antenna extensions of Ø39 × length 105 mm are available...
  • Page 110 TECHNICAL DATA OPTIWAVE 6300 C DN80/3¨ Drop antenna versions Figure 8-13: DN80/3¨ Drop antenna versions 1 DN80/3¨ Drop antenna with G 1½ or 1½ NPT thread connection 2 DN80/3¨ Drop antenna with flange connection 3 DN80/3¨ Drop antenna with slanted flange connection (PP material option only) 4 DN80/3¨...
  • Page 111 TECHNICAL DATA OPTIWAVE 6300 C DN150/6¨ Drop antenna versions (PP material option only) Figure 8-14: DN150/6¨ Drop antenna versions (PP material option only) 1 DN150/6¨ Drop antenna with flange connection 2 DN150/6¨ Drop antenna with thread connection 3 DN150/6¨ Drop antenna with slanted flange connection 4 DN150/6¨...

  • Page 112: Description Of Hart Interface

    DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C 9.1 General description ® The HART Protocol is an open digital communication protocol for industry. It is free to use by anyone. It is included in the software embedded in signal converters of HART-compatible devices.

  • Page 113: Connection Variants

    DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C ® HART identification codes and revision numbers Manufacturer ID: 0x45 Device: 0xE5 Device Revision: DD Revision ® HART Universal Revision: ≥ 1.8 FC 375/475 system SW.Rev.: ≥ 7.0 AMS version: PDM version: ≥ 1.2 FDT version: 9.3 Connection variants...

  • Page 114: Hart ® Device Variables

    DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C ® 9.4 HART device variables Code Type ® HART device variable level linear distance linear level conversion linear level mass linear reflection linear distance conversion linear distance mass linear The HART® dynamic variables PV (Primary Variable), SV (Secondary Variable), TV (Third Variable) and 4V (Fourth Variable) can be assigned to any of the device variables.

  • Page 115: Operation

    DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C 9.5.2 Operation INFORMATION! The Field Communicator will not give you access to the service menu. A simulation is only possible for current outputs. The Field Communicator and the device's local display use almost the same procedures to operate the signal converter.

  • Page 116: Installation

    DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C 9.7.1 Installation Before you operate the device, the Device Type Manager (DeviceDTM) must be installed in the Field Device Tool Container. This .EXE file is given on the CD-ROM supplied with the device. You can also download the file from our internet site.

  • Page 117: Basic-Dd Menu Tree (Details For Settings)

    DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C 9.8.2 Basic-DD menu tree (details for settings) 1 Process Variables 1 Measurements 1 Distance / 2 Level 2 Input/Outputs 1 Output1 1 PV is / 2 Distance I1 3 %Distance Rd, Opt 2 Output2...

  • Page 118: Hart ® Menu Tree For Ams

    DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C 5 Save Device Parameters 6 Configuration Variables 1 Installation Parameters 1 Tank Type / 2 Tank Height / 3 Application Type / 4 Antenna Extension / 5 Distance Piece / 6 Overfill Detection / 7 Blocking Distance / 8 Reference...

  • Page 119: Overview Ams Menu Tree (Positions In Menu Tree)

    DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C 9.9.1 Overview AMS menu tree (positions in menu tree) Configure/Setup Installation Parameters 1 Installation Parameters 2 Output Selection Primary Output Setting Secondary Output Setting Service HART Device Device Diagnostics Overview Critical Informational Process Variables...
  • Page 120 DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C Secondary Output Setting 4 mA Setting Distance 4 mA / Level 4 mA (Output2 (Passive) Loop) Volume 4 mA / Ullage Volume 4 mA / Mass 4 mA / Ullage Mass 4 mA...
  • Page 121 DESCRIPTION OF HART INTERFACE OPTIWAVE 6300 C Calibration Management Define Test... Enter Test Data... Calibration Status... Calibration History... Methods Access Rights Supervisor / Service Save Parameters Diagnostics and Test Internal Test / Set Output1 / Set Output2 Calibrate Output1 Lower / Output1 Upper / Output2 Lower / Output2 Upper...

  • Page 122: Appendix

    10.1 Order form You can help us to assist you as quickly as possible by giving us a few items of information. Then just fax them to us. Your personal KROHNE consultant will contact you within 24 hours. 10.1.1 Device data...

  • Page 123: Rating Data

    APPENDIX OPTIWAVE 6300 C 10.1.2 Rating data Product name: Operating pressure: Rated pressure: Process connection temperature: Ambient temperature: Dielectric constant: Measurand (level, volume,...): Silo height: Comments (indoors, exposed to weather, ...): 10.1.3 Contact data Company: Contact person: Telephone number: Fax number:...

  • Page 124: Glossary

    APPENDIX OPTIWAVE 6300 C 10.2 Glossary Dead zone Dead zone Dead zone Dead zone Non-measurement zone. Dielectric constant Dielectric constant An electrical property of the product to be measured used in Radar Dielectric constant Dielectric constant measurement. Also known as εr, DK and relative permittivity. Defines the strength of the wave reflected back to the device's signal converter.
  • Page 125 APPENDIX OPTIWAVE 6300 C Level Level Height from the bottom of the silo (user-defined) to the surface of the top Level Level product (Tank height – distance). See the diagrams at the end of this section. Mass Mass Mass Mass Total mass of silo contents.
  • Page 126 APPENDIX OPTIWAVE 6300 C Figure 10-1: Measurement definitions: distance 1 Distance 2 Dead zone 3 Flange facing 4 Gas (Air) 5 Tank height 6 Ullage volume or mass Figure 10-2: Measurement definitions: level 1 Level 2 Volume or mass www.krohne.com...

  • Page 127: Notes

    NOTES OPTIWAVE 6300 C 04/2011 - 4000547003 - HB OPTIWAVE 6300 R03 en www.krohne.com...
  • Page 128 Measuring systems for the oil and gas industry • Measuring systems for sea-going tankers Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 D-47058 Duisburg (Germany) Tel.:+49 (0)203 301 0 Fax:+49 (0)203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...

Table of Contents
