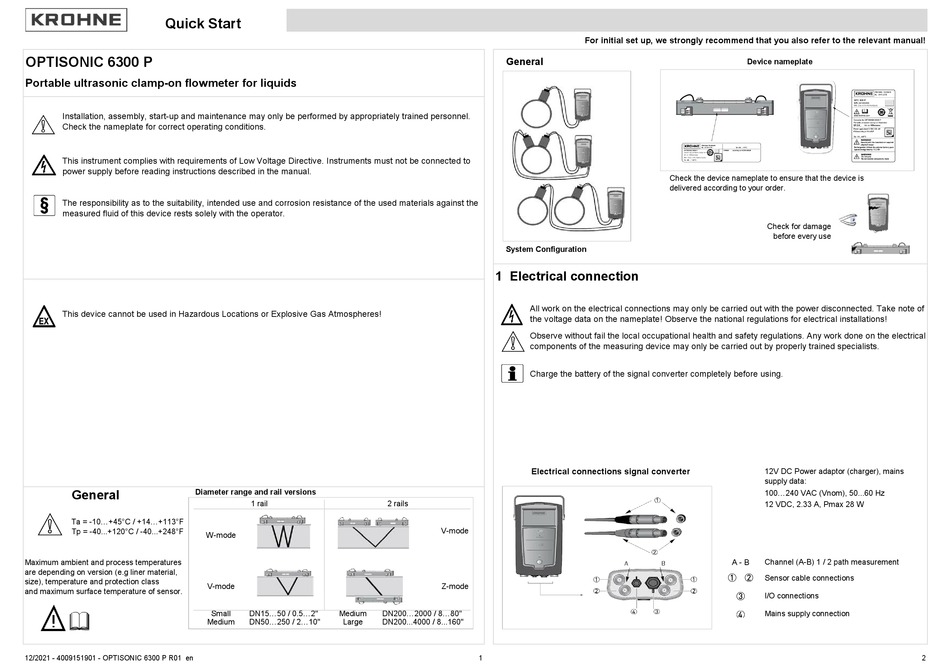

KROHNE OPTISONIC 6300 P Quick Start

Quick Start
Quick Start
OPTISONIC 6300 P

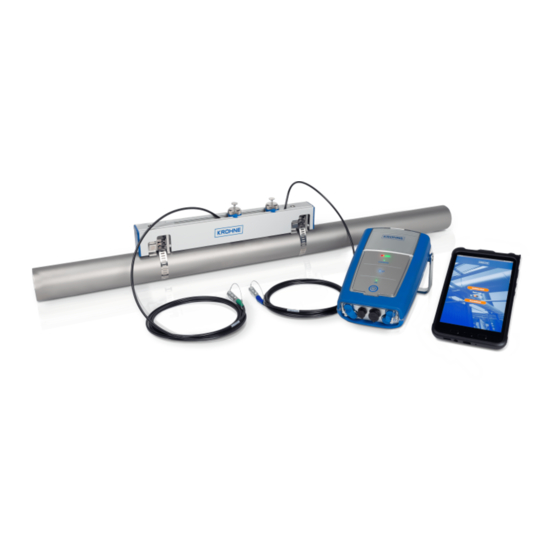

Portable ultrasonic clamp-on flowmeter for liquids
Installation, assembly, start-up and maintenance may only be performed by appropriately trained personnel.
Check the nameplate for correct operating conditions.
This instrument complies with requirements of Low Voltage Directive. Instruments must not be connected to
power supply before reading instructions described in the manual.
The responsibility as to the suitability, intended use and corrosion resistance of the used materials against the
measured fluid of this device rests solely with the operator.
This device cannot be used in Hazardous Locations or Explosive Gas Atmospheres!
General Diameter range and rail versions
Ta = -10...+45°C / +14...+113°F
Tp = -40...+120°C / -40...+248°F
Maximum ambient and process temperatures
are depending on version (e.g liner material,
size), temperature and protection class
and maximum surface temperature of sensor.
12/2021 - 4009151901 - OPTISONIC 6300 P R01 en
1 rail
W-mode
V-mode
Small DN15...50 / 0.5...2" Medium DN200...2000 / 8...80"
Medium DN50...250 / 2...10" Large DN200...4000 / 8...160"
General
System Configuration
1 Electrical connection
All work on the electrical connections may only be carried out with the power disconnected. Take note of
the voltage data on the nameplate! Observe the national regulations for electrical installations!
Observe without fail the local occupational health and safety regulations. Any work done on the electrical
components of the measuring device may only be carried out by properly trained specialists.
Charge the battery of the signal converter completely before using.
Electrical connections signal converter
2 rails
V-mode
Z-mode
1
For initial set up, we strongly recommend that you also refer to the relevant manual!
Device nameplate
Check the device nameplate to ensure that the device is
delivered according to your order.
A - B
1 2
3
4
Check for damage
before every use
12V DC Power adaptor (charger), mains
supply data:
100...240 VAC (Vnom), 50...60 Hz
12 VDC, 2.33 A, Pmax 28 W
Channel (A-B) 1 / 2 path measurement
Sensor cable connections
I/O connections
Mains supply connection
2
