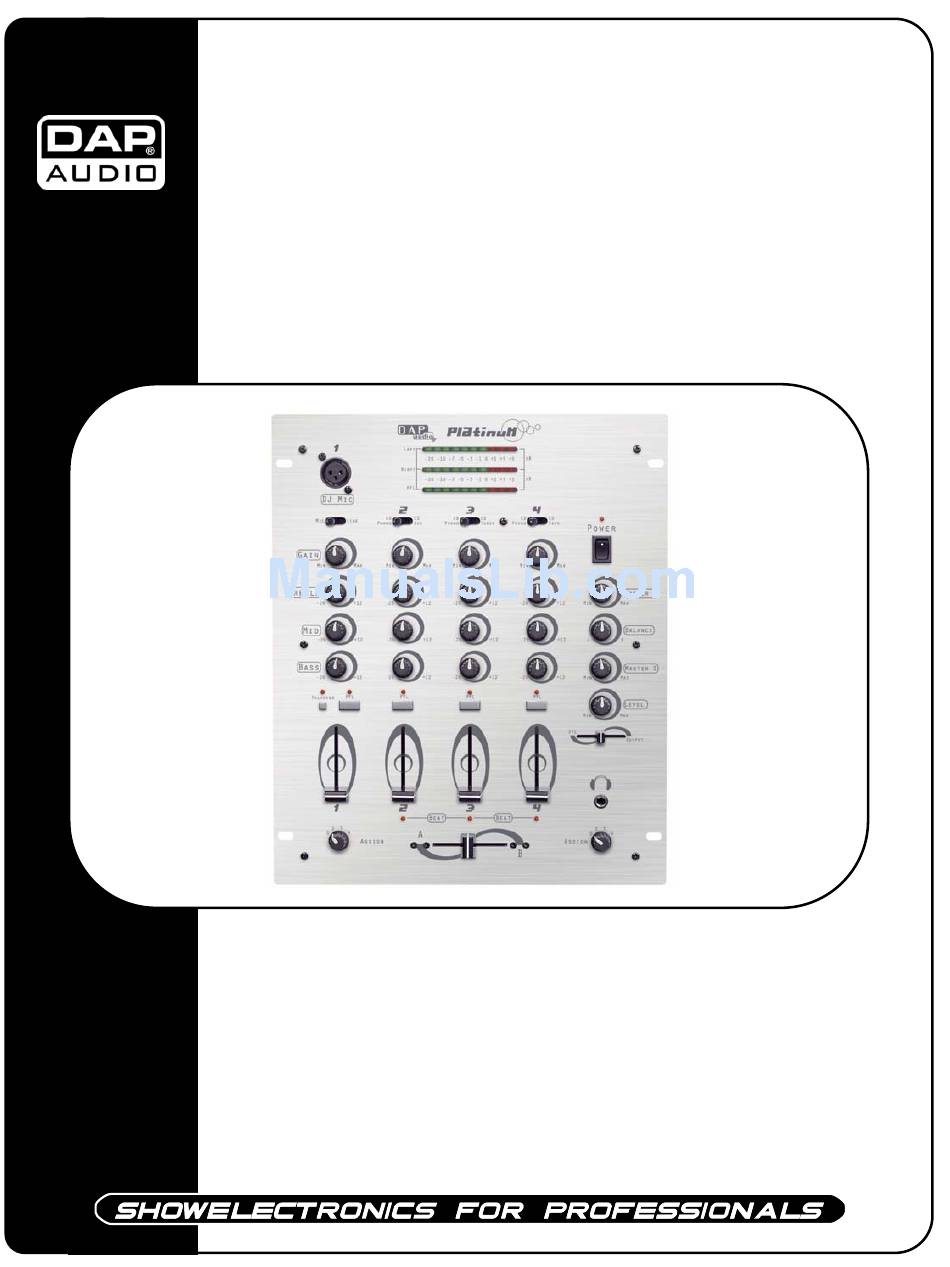

- Page 1 Platinum ORDERCODE D2113...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio Platinum brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio Platinum Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview ..…………………………………………………………………………………….………..……. Frontside.………………………………………………………………………….………..………………... Backside.………………………………………………………………………….………..……………..…. Installation................…...……………………………………..…. Set Up and Operation..............……..…………………………….….. Set Up ………………..........…………………………………....……..Connection Cables......…........………..………….…….………….…. Maintenance………......…........………..………….…….………….…. Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Make sure you don’t use the wrong kind of cables or defective cables. • Make sure that the signals into the mixer are balanced, otherwise hum could be created. • Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear. •... -
Page 6: Description
Description of the device Features The Platinum is a mixer from Dap Audio. • Inputs: 3 stereo phono, 7 stereo line, 1 mic. • Outputs: 2 stereo master, 1 stereo record, 1 stereo headphone • One removable, specially smooth operating crossfader with on/off and assignment to channel 2, 3 and 4. -
Page 7: Frontside
Frontside 1) Mic 1 14) Switch CD Phono / CD Tape 2) Switch Mic / Line 15) Beat LED 3) Gain, range Min / Max 16) Power ON / OFF Treble 2, range -26 / +12 dB 17) Master 2, range Min / Max 5) Mid, range -26 / +12 dB 18) Balance, range L / R 6) Bass, range -26 / +12 dB... -
Page 8: Backside
Backside 26) Ground 27) Output Out 1 L/R 28) Output Out 2 L/R 29) Output Rec L/R 30) CH4 CD Tape L8 L/R 31) CH4 Phono / CD 32) Switch PH / CD 33) CH3 CD Tuner L8 L/R 34) CH3 Phono / CD 35) Switch PH / CD 36) CH2 CD Aux L/R 37) CH2 Phono / CD... -
Page 9: Installation
Installation Remove all packing materials from the Platinum. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 10 while the individual channel’s volume fader setting is not recognized (PRE FADER LISTEN). Once a PFL button is pressed, the master display automatically enters PFL/PGM mode. This allows you setting a signal’s correct level or making special EQ-adjustments without the need of including it in the main mix.
- Page 11 16. Main Power Switch This is the main power ON/OFF button. The power switch will glow red when power is ON. Before main power is applied, be sure you have connected every device to the mixer. Also be sure your amplifier(s) is (are) tuned off. Remember to avoid damaging pops, the mixer should be powered first and turned off last.
- Page 12 23 / 25. Cross Fader Assign Switch Switch (23) is used to assign channel 2, 3 or 4 to the A side of the crossfader. Switch (25) is used to assign channel 2, 3 or 4 to the B side of the crossfader. Setting one of the switches (23 or 25) to 0, will disable the according side of the crossfader, 24.
-
Page 13: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Set Up Set Up example... -
Page 14: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 15: Maintenance
Maintenance DAP Audio Platinum requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 16: Product Specifications
Product Specification Model: DAP Audio Platinum Power: AC 230V-50Hz (CE) Dimensions: 400 x 350 x 150 mm (LxWxH) Weight: 5,66 Kg Inputs 2x Microphone: 1x XLR balanced and 1x Jack Unbalanced 3x Phono / CD 4x Line 1x Rec Out 2x OUT Design and product specifications are subject to change without prior notice.
