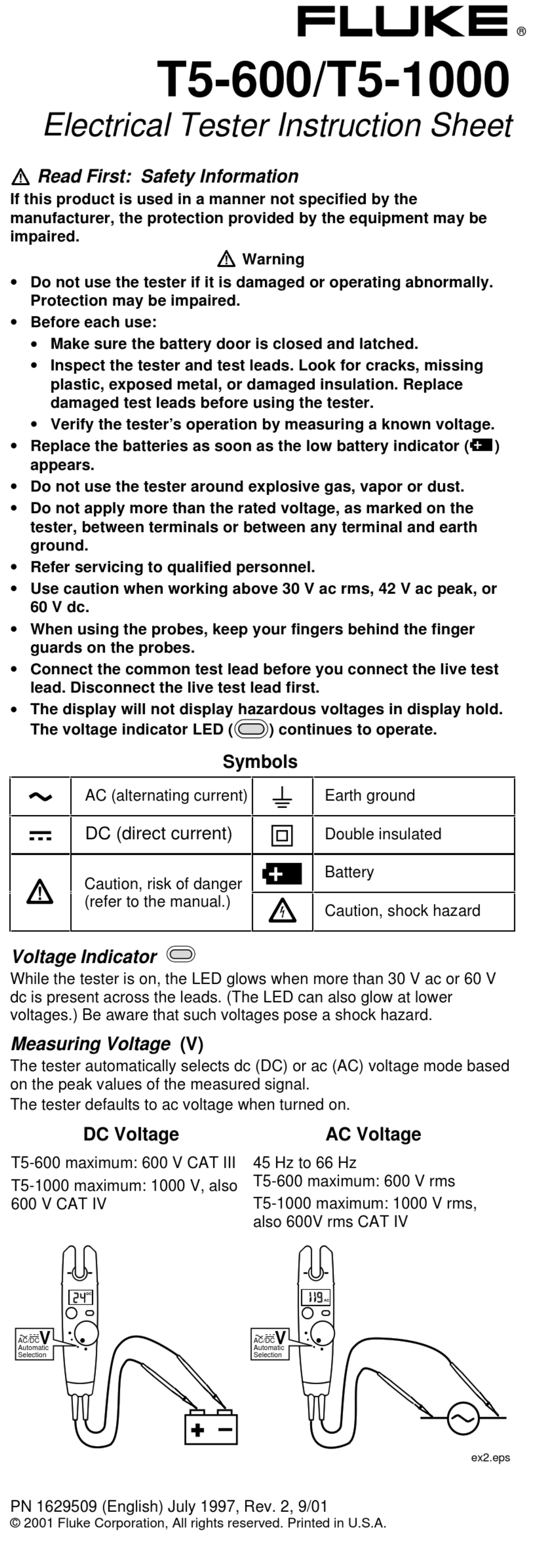

Electrical Tester Instruction Sheet
W

Read First: Safety Information

If this product is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
• Do not use the tester if it is damaged or operating abnormally.
Protection may be impaired.
• Before each use:
• Make sure the battery door is closed and latched.
• Inspect the tester and test leads. Look for cracks, missing
plastic, exposed metal, or damaged insulation. Replace
damaged test leads before using the tester.
• Verify the tester's operation by measuring a known voltage.
• Replace the batteries as soon as the low battery indicator (
appears.
• Do not use the tester around explosive gas, vapor or dust.
• Do not apply more than the rated voltage, as marked on the
tester, between terminals or between any terminal and earth
ground.
• Refer servicing to qualified personnel.
• Use caution when working above 30 V ac rms, 42 V ac peak, or
60 V dc.
• When using the probes, keep your fingers behind the finger
guards on the probes.
• Connect the common test lead before you connect the live test
lead. Disconnect the live test lead first.
• The display will not display hazardous voltages in display hold.
The voltage indicator LED (
B
AC (alternating current)
F
DC (direct current)
W
Caution, risk of danger
(refer to the manual.)
Voltage Indicator
While the tester is on, the LED glows when more than 30 V ac or 60 V
dc is present across the leads. (The LED can also glow at lower
voltages.) Be aware that such voltages pose a shock hazard.

Measuring Voltage (V)

The tester automatically selects dc (DC) or ac (AC) voltage mode based
on the peak values of the measured signal.
The tester defaults to ac voltage when turned on.
DC Voltage
T5-600 maximum: 600 V CAT III
T5-1000 maximum: 1000 V, also
600 V CAT IV
DC
V
AC/DC
Automatic
Selection
PN 1629509 (English) July 1997, Rev. 2, 9/01
© 2001 Fluke Corporation, All rights reserved. Printed in U.S.A.
T5-600/T5-1000
W
Warning
Symbols
45 Hz to 66 Hz
T5-600 maximum: 600 V rms
T5-1000 maximum: 1000 V rms,
also 600V rms CAT IV
AC/DC
Automatic
Selection
) continues to operate.
J
Earth ground
T
Double insulated
M
Battery
X
Caution, shock hazard
AC Voltage
AC
V
®
M
)
ex2.eps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T5-600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fluke T5-600

  • Page 1 T5-1000 maximum: 1000 V, also T5-1000 maximum: 1000 V rms, 600 V CAT IV also 600V rms CAT IV AC/DC AC/DC Automatic Automatic Selection Selection ex2.eps PN 1629509 (English) July 1997, Rev. 2, 9/01 © 2001 Fluke Corporation, All rights reserved. Printed in U.S.A.
  • Page 2 Measuring Continuity and Resistance (Ω) Continuity Resistance 1000 Ω Range Less than 25 Ω Greater than 400 Ω Open Short ex3.eps Beeper indicates shorts lasting 10 ms (1/100 second) or longer. Measuring AC Current (A) • Range: 0 A to 100.0 A; 45 Hz to 66 Hz 0.5"(12.9 mm) •...
  • Page 3: Battery Replacement

    Specifications subject to change without notice. Calibration: One-year calibration cycle. Maximum Voltage Between any Terminal and Earth Ground: T5-600: 600 V rms, Overvoltage Category III; Pollution Degree 2 T5-1000: 1000 V rms, Overvoltage Category III, also 600 V rms overvoltage Category IV, Pollution Degree 2...
  • Page 4 Limited Warranty & Limitation Of Liability This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse or abnormal conditions of operation or handling.
