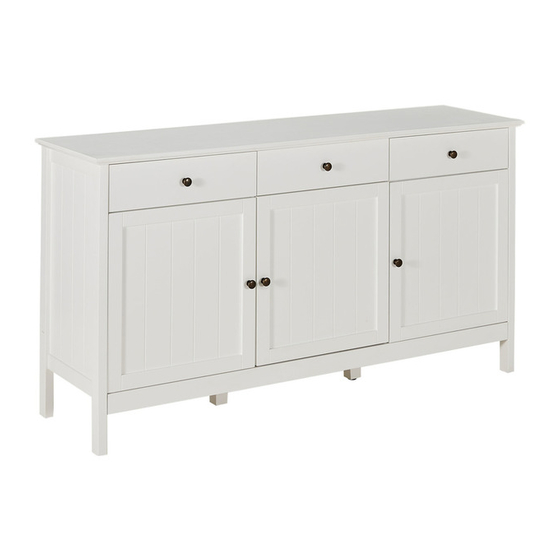

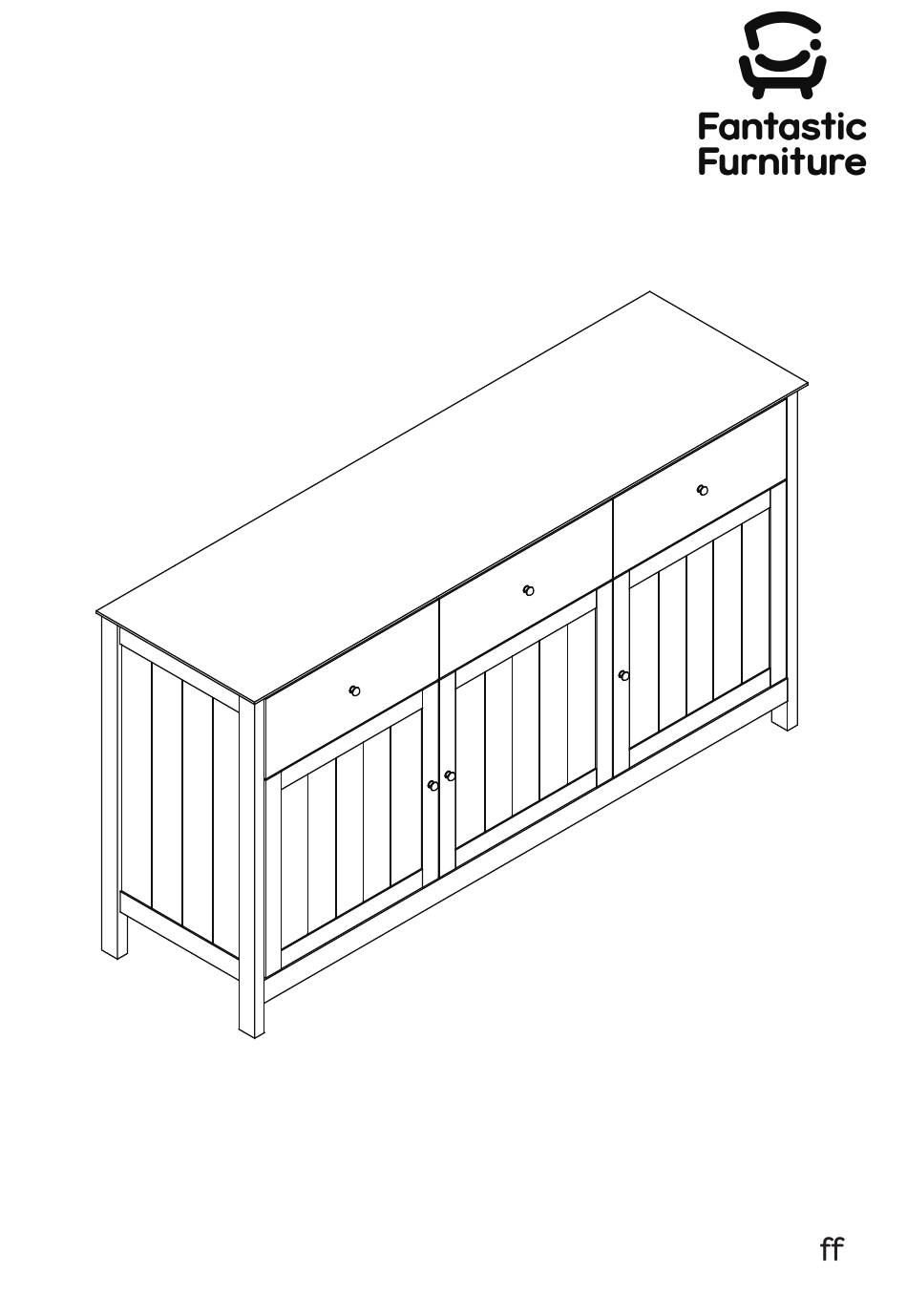

- Page 1 Version 1.0 Hamilton Bu et fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Top Panel Right Side (P1) Panel (P4) DO NOT USE Back Rail Panel (P9) Other tools you need: Back (P6) Phillips head screwdriver; Divider Panel (P8) (P6) Parts list Shelf Back Top Panel (P1); Rail Panel Panel... - Page 5 Step 1 (P3) You will need 6 x Small 8 x Cam Bolts Screws (H5) (H3) 1 x CL Runner 1 x CR Runner Track (H6) Track (H7) Phillips Head (P4) Screwdriver Attach 8 x Cam Bolts (H3) to Left&Right Side Panels (P3&P4) as shown by tightening with the Phillips Head Screwdriver.
- Page 6 Step 3 You will need 6 x Small 2 x Cam Bolts Screws (H5) (H3) (P8) FLIP 1 x CL Runner 1 x CR Runner Track (H6) Track (H7) Phillips Head (P8) Screwdriver Attach 2 x Cam Bolts (H3) , 1 x CL Runner Track (H6) and 1 x CR Runner Track (H7) to each side of Divider (P8) with 6 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
- Page 7 Step 5 You will need 3 x Cam Phillips Head Bolts (H3) Screwdriver (P11) Attach 3 x Cam Bolts (H3) to Rail (P11) by tightening with the Phillips Head Screwdriver. Step 6 You will need (P11) 3 x Cam Nuts Phillips Head (H4) Screwdriver...
- Page 8 Step 7 (P8) You will need 4 x Dowels 4 x Long (H1) Screws (H2) (P7) Phillips Head Screwdriver (P2) Attach Bottom Panel (P2) to Dividers (P7&P8) with 4 x Long Screws (H2) and 4 x Dowels (H1) by tightening with the Phillips Head Screwdriver. Step 8 (P9) You will need...
- Page 9 Step 9 You will need 4 x Dowels 4 x Cam Nuts (P9) (H1) (H4) (P11) Phillips Head (P2) Screwdriver (P3) Insert 4 x Dowels (H1) and 4 x Cam Nuts (H4) into Rails (P9&P11) and Bottom Panel (P2). Rotate the nuts so the arrows point towards the incoming bolts.
- Page 10 Step 11 You will need 2 x Adjusters (H17) (P2) (P12) (P12) Attach 2 x Support Legs (P12) to Bottom Panel (P2). Insert the 2 x Adjusters (H17) into the 2 x Support Legs (P12). (P6) Step 12 (P6) (P4) (P6) (P8) (P7)
- Page 11 Step 13 You will need Phillips Head 8 x Cam Bolts Screwdriver (H3) (P1) Attach 8 x Cam Bolts (H3) to Top Panel (P1) by tightening with the Phillips Head Screwdriver. Step 14 You will need (P1) (P4) 8 x Dowels 8 x Cam Nuts (H1) (H4)
- Page 12 Step 15 You will need (P4) 12 x Shelf Plugs (H16) (P8) (P5) (P7) (P3) (P5) (P5) Insert 12 x Shelf Plugs (H16) into the end cavities of the cabinet as shown. Insert the 3 x Shelf Panels (P5) and balance on top of the plugs. Step 16 You will need 4 x Hinges...
- Page 13 Step 17 (P4) You will need 24 x Hinge Phillips Head (P8) Screws (H15) Screwdriver (P10) (P20) (P3) Secure Doors (P10) (P10x2&P20) to the main unit by attaching the other end of the 6 x Hinges (H14,H19) with 24 x Hinge Screws (H15) as shown.
- Page 14 Step 19 You will need 4 x Cam Phillips Head Bolts (H3) Screwdriver (P13) Attach 4 x Cam Bolts (H3) to Left Drawer Front (P13) by tightening with the Phillips Head Screwdriver. Step 20 (P16) You will need (P17) 4 x Cam Nuts Phillips Head (H4) Screwdriver...
- Page 15 Step 22 (P18) You will need (P16) 4 x Long Phillips Head Screws (H2) Screwdriver (P17) (P13) Attach Drawer Back (P18) to Drawer Sides (P16,P17) with 4 x Long Screws (H2). Make sure that the groove lines up the whole way around the drawer. Step 23 (P17) You will need...
- Page 16 Step 25 You will need 4 x Cam Phillips Head Bolts (H3) Screwdriver (P14) Attach 4 x Cam Bolts (H3) to Middle Drawer Front (P14) by tightening with the Phillips Head Screwdriver. Step 26 (P16) You will need (P17) 4 x Cam Nuts Phillips Head (H4) Screwdriver...
- Page 17 Step 28 (P18) You will need (P16) 4 x Long Phillips Head Screws (H2) Screwdriver (P17) ( P14) Attach Drawer Back (P18) to Drawer Side (P16,P17) with 4 x Long Screws (H2). Make sure that the groove lines up the whole way around the drawer. Step 29 (P17) You will need...
- Page 18 Step 31 You will need 4 x Cam Phillips Head Bolts (H3) Screwdriver (P15) Attach 4 x Cam Bolts (H3) to Right Drawer Front (P15) by tightening with the Phillips Head Screwdriver. Step 32 (P16) You will need (P17) 4 x Cam Nuts Phillips Head (H4) Screwdriver...
- Page 19 Step 34 (P18) You will need (P16) 4 x Long Phillips Head Screws (H2) Screwdriver (P17) (P15) Attach Drawer Back (P18) to Drawer Sides (P16,P17) with 4 x Long Screws (H2). Make sure that the groove lines up the whole way around the drawer. Step 35 (P17) You will need...
- Page 20 Step 37 (P15) (P14) (P13) Insert the assembled drawers into the corresponding compartments as shown. Ensure the drawers slide easily along the rails. Step 38 You will need (P1) 8 x Wedges 8 x Wedge (H12) Screws (H13) (P6) 2 x Safety 2 x Safety Strap Straps (H20) Screws (H21)
-
Page 21: Job Complete
Wall Step 39 You will need Screw (P1) 2 x Washers Phillips Head (H22) Screwdriver Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach this safety strap to your specific wall. - Page 22 TO ADJUST YOUR DOORS TO MAKE THE GAPS MORE EVEN STEP 1 Open the door. Panel Door STEP 2 Adjuse the door panels upward or downward MOVE DOOR UPWARD OR DOWNWARD Unscrew 2 screws in round Tighten 2 screws in oval holes loosen 2 screws in oval holes.
