Version 1.0
Hamilton
Lowline Small
fantasticfurniture.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hamilton Lowline Small and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for fantastic furniture Hamilton Lowline Small

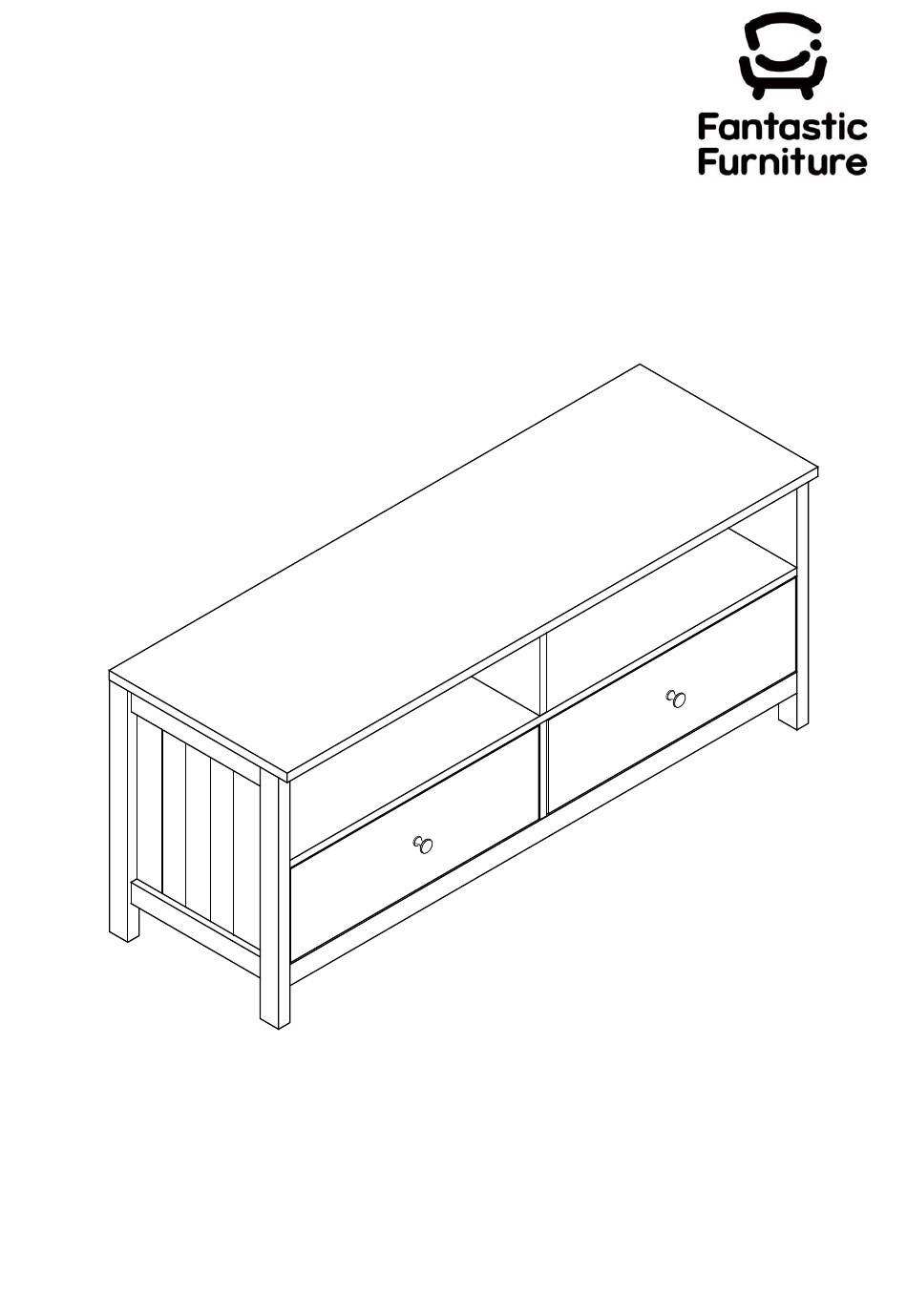

  • Page 1 Version 1.0 Hamilton Lowline Small fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.
  • Page 4: What You Need

    What you need to assemble the product Right Side Panel (P3) Top Panel (P1) DO NOT USE Shelf Divider Panel Other tools you need: Phillips head screwdriver; (P4) (P14) Hammer Left Side Back Panel (P2) Divider Panel Parts list (P15) (P8) Top Panel (P1);...
  • Page 5 Step 1 You will need 6 x Small 1 x CL Runner Screws (H5) Tracks (H6) (P3) 1 x CR Runner Phillips Head Tracks (H7) Screwdriver (P2) Attach 1 x CL Runner Track (H6) to Left Side Panel (P2) and 1 x CR Runner Track (H7) to the Right Side Panel (P3) with 6 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
  • Page 6 Step 3 You will need 6x Small 1 x CL Runner Screws (H5) Tracks (H6) FLIP 1 x CR Runner Phillips Head Tracks (H7) Screwdriver (P15) (P15) Attach 1 x CL Runner Track (H6) to Divider (P15) with 6 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
  • Page 7 Caution!! Step 5 (P15) Cam nut hole must face downward You will need 1 x Cam Bolts 1 x Cam Nuts (H3) (H4) (P5) This is how a cam nut works..Phillips Head The head of the cam Screwdriver bolt goes into the open mouth of the cam nut.
  • Page 8 Step 7 (P4) (P5) You will need 2 x Cam Nuts Phillips Head (H4) Screwdriver (P6) (P15) Insert 2 x Cam Nuts (H4) into the holes of Divider (P15). Rotate the cam nuts so the arrow points towards the incoming cam bolts. Attach Divider (P15) to Shelf Panel (P4) by tightening with the Phillips Head Screwdriver.
  • Page 9 Step 9 You will need (P4) (P3) Phillips Head 5 x Cam Nuts Screwdriver (H4) (P6) (P2) Insert 5 x Cam Nuts (H4) into the holes of Rails & Shelf Panel (P5 & P6 & P4). Rotate the cam nuts so the arrow points towards the incoming cam bolts. Attach Rails & Shelf Panel (P5 &...
  • Page 10 Step 11 You will need (P1) 6 x Cam Nuts Phillips Head (H4) Screwdriver (P3) (P7) (P4) Gently stand the unit upright. Slide Back Panel (P7) into the grooves of Left & Right Side Panel (P2&P3). Insert 6 x Cam Nuts (H4) into Divider &...
  • Page 11 Step 13 You will need 8 x Cam Bolts Phillips Head (P9) (H3) Screwdriver Attach 8 x Cam Bolts (H3) to Drawer Fronts (P9x2) by tightening with the Phillips Head Screwdriver. Step 14 (P10) You will need (P11) 8 x Cam Nuts Phillips Head (H4) Screwdriver...
  • Page 12 Step 16 You will need (P13) (P10) 8 x Large Phillips Head Screws (H2) Screwdriver (P11) Attach Drawer Backs (P13x2) to Left & Right Drawer Sides (P10x2&P11x2) with 8 x Large Screws (H2) by tightening with the Phillips Head Screwdriver. Ensure the Drawer Base lines up with the grooves the whole way around the drawer before securing.
  • Page 13 Step 18 You will need 2 x Handle 2 x Handles Bolts (H11) (H10) Phillips Head Screwdriver (P9) Attach 2 x Handles (H11) to Drawer Fronts (P9x2) with 2 x Handle Bolts (H10) by tightening with the Phillips Head Screwdriver. Step 19 Carefully insert the drawers into the lowline by gently guiding the runners into the tracks.
  • Page 14: Job Complete

    Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 14...
