Replacing the Power Supply
TCPA300/400 Amplifiers and TCP300/400 Series Current Probes Service Manual
To replace the power supply, do the following:
1. Disconnect the AC and DC power connectors from the power supply.
2. Remove the four screws from the power supply.
3. Remove the power supply from the chassis.
4. Do in reverse steps 3 through 1 to install a new power supply.

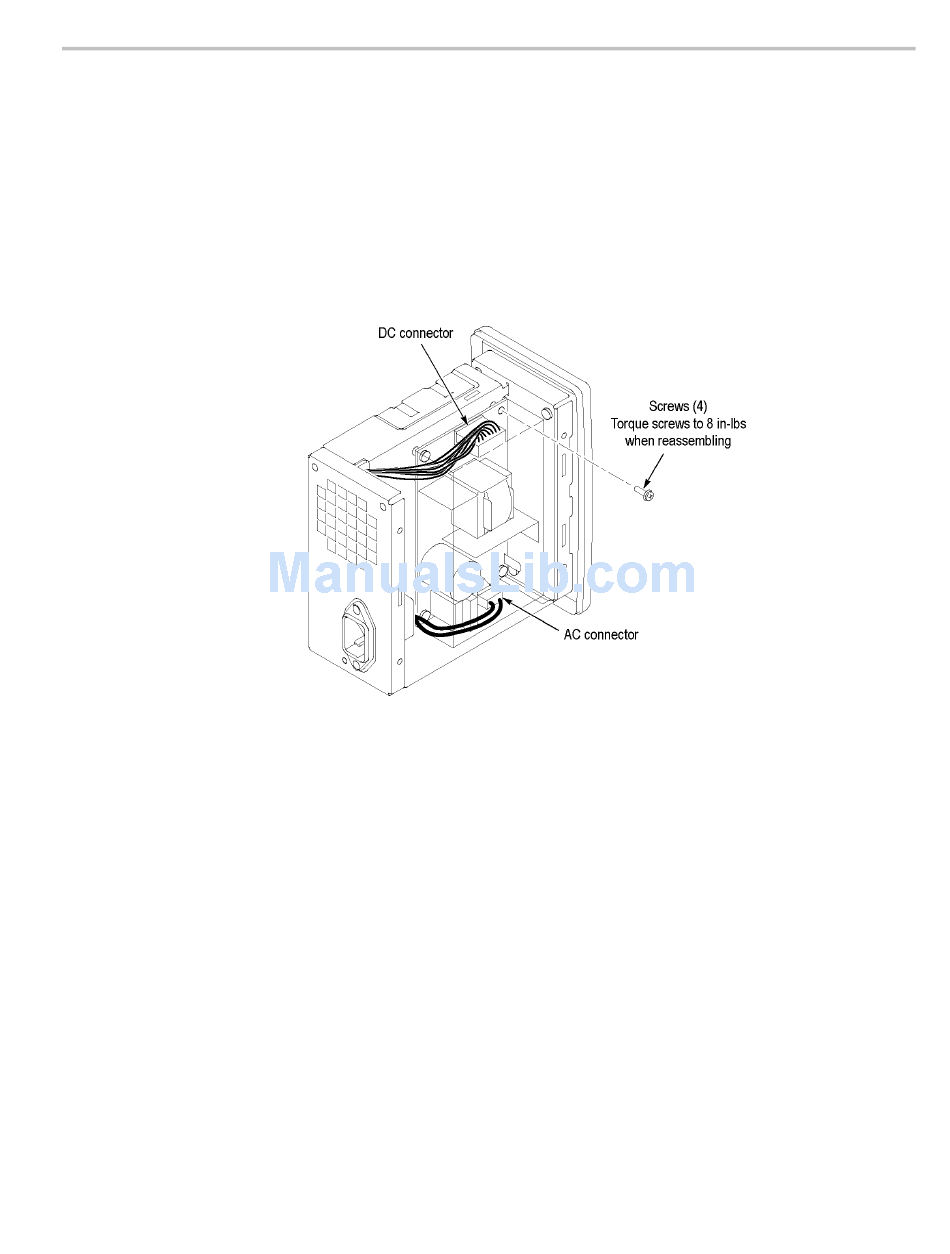

Figure 26: Replacing the power supply
Disassembly
69
