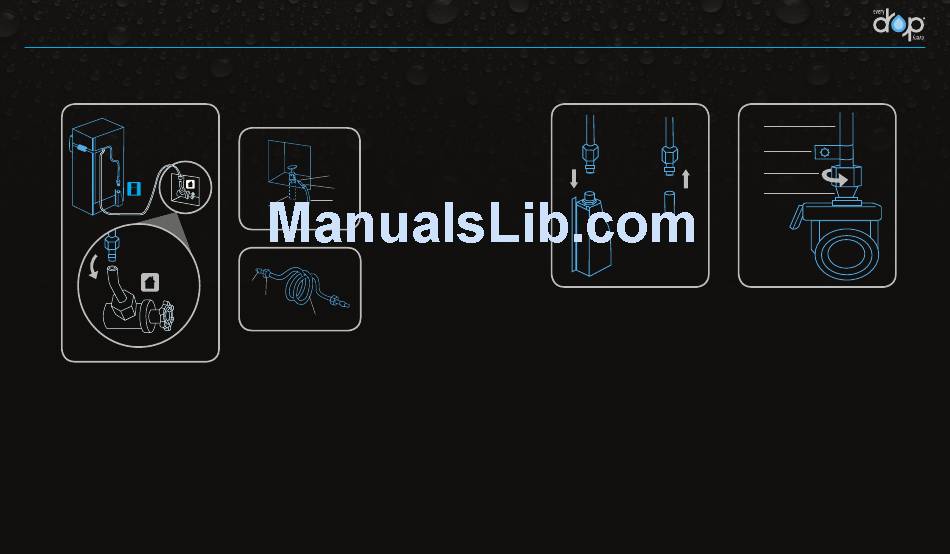

INSTALLATION
7
CONNECT TO WATER SUPPLY
Disconnect the old hose from
your house water line and
replace it with the dispenser's
house water line. Use your
hand to tighten the nut,
then use a wrench to give
it a half-turn.
14
WATER LINE PARTS
CONNECTION POINT
A. Sleeve
B. Nut
C. Copper tubing
A
(to refrigerator)
B
D. Household supply
"
line (1/2
min.)
C
D
HOSE
A. Compression
sleeve
A
B. Compression
nut
B
C. Copper tubing
C
8
CONNECT TO REFRIGERATOR
OR
If you don't have an ice maker,
skip this step. Simply leave
the cap on the dispenser's
refrigerator line and move on
to step 9.
If your refrigerator has an ice
maker, remove the cap from
the end of the dispenser's
refrigerator line and connect
the line to your refrigerator.
Hand-tighten the nut, then use
a wrench to give it a half-turn.
Be careful not to overtighten the
nut, and avoid kinks in the line.
A
B
C
D
A. Copper tubing
B. P-clamp
C. Compression nut
D. Compression sleeve
