Final Assembly Steps; Removing The Peeler Unit - Tally Dascom 7010 Installation Manual

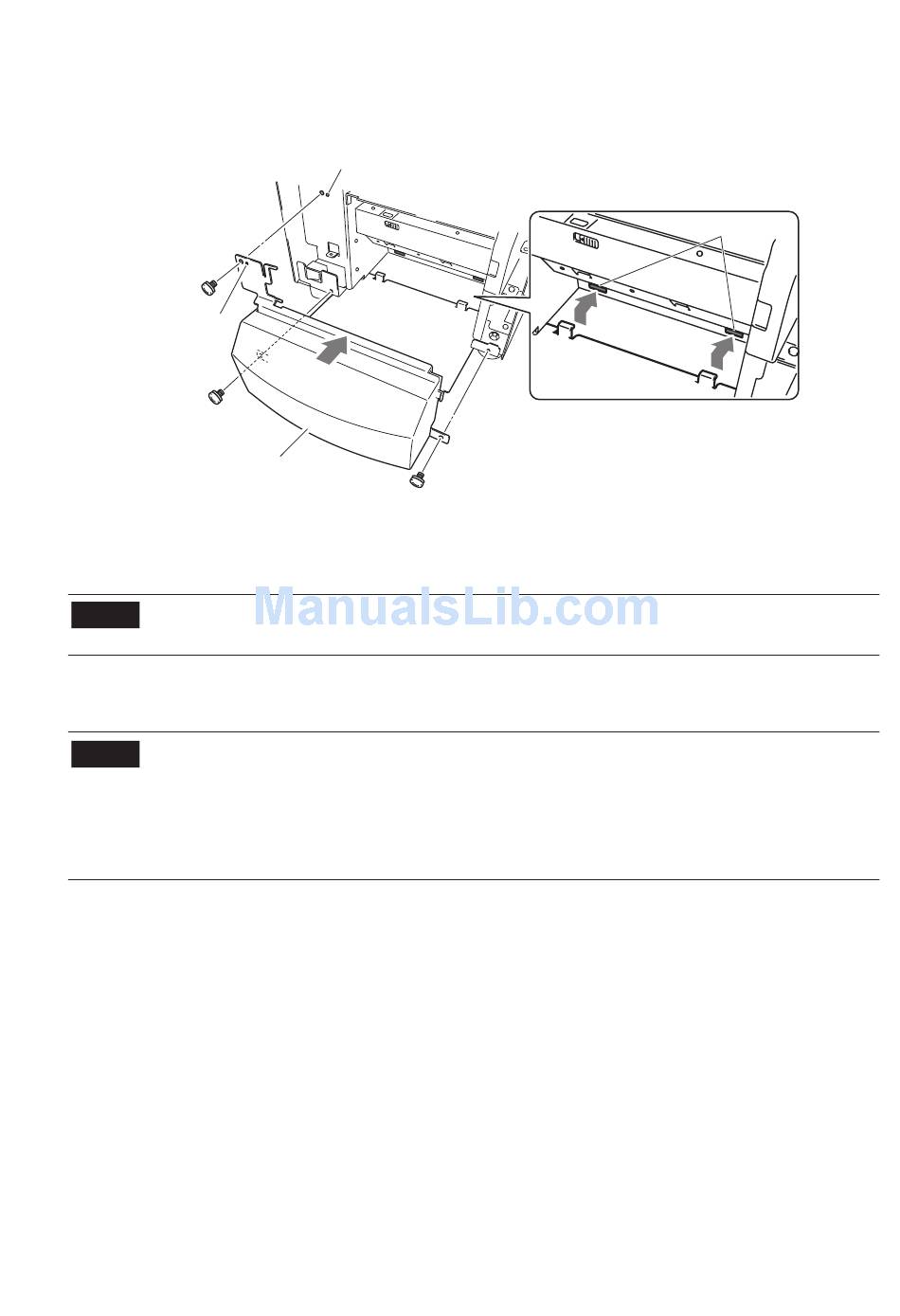

(11) Align the two tabs on the bottom of the 'front center cover' to the slits of the printer as
it is slid in to the printer. The bottom plate of the front cover needs to be held up from
below to ensure a good fit. Attach the front center cover from step 5 in its original
position. (3 screws, of which 1 is an accessory to the unit)
Alignment hole
Front center cover
(12) Attach the front right cover removed at step 4 in its original position. (2 screws)
(13) Attach the operation panel removed at step 3 in its original position. (3 screws)
Note Be sure to c onnec t the flexible c able that you dis c onnec ted as it was
formerly connected. The blue side of the tip is upwards.
(14) Close the top cover.
(15) Connect the power cord and turn on the power switch on the printer.
Note

Removing the peeler unit

To remove the peeler unit from the printer, follow the installation steps in
reverse order. If the screws that fasten the peeler unit are removed, the unit
may fall from the pr inter, so hold the peeler unit with your hand while
loosening the fastening screws.
© Copyright DASCOM Europe GmbH
Alignment "pin"
Slit
v1.0
