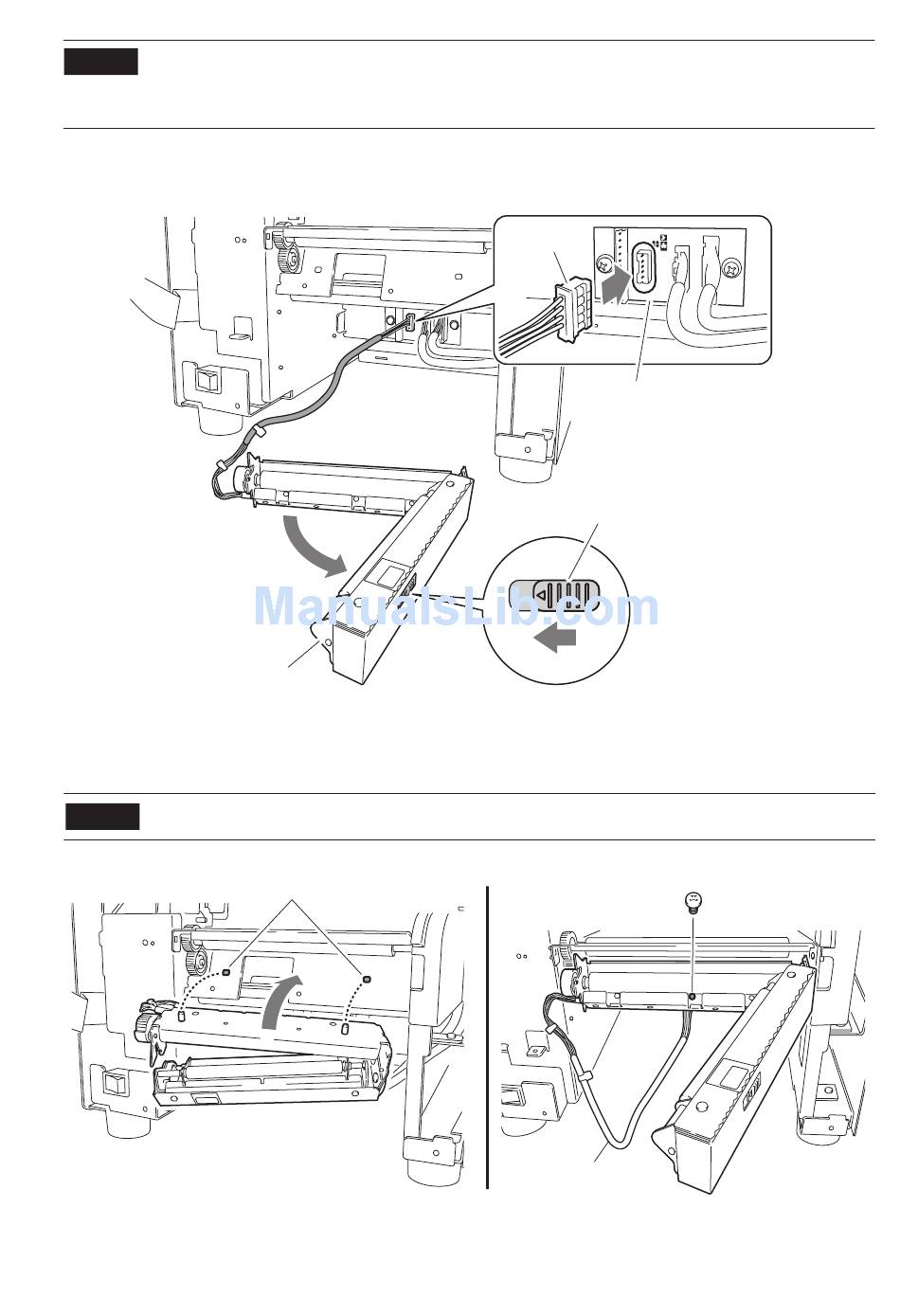

(8) Attach the connector of the peeler unit to the daughter board as shown in the figure.
Note The connector cannot be connected if it is inserted in the wrong orientation
unless force is used!
Check the orientation of the connector carefully.
(9) Slide the release knob of the peeler unit to the left and open the peeler unit.
(10) After positioning the peeler unit on the printer using the alignment pins on the peeler
as a guide, fix the unit to the printer using the screw supplied. Then close the peeler.
Note Be careful not to pinch the wiring harness from the peeler unit.
Peeler unit
Alignment holes and pins
Connector
Daughter board
Release knob
Wiring harness
