Rpmdiff Sd [Rpm]; Rpmdiff Wrn [Rpm]; Rpmdiff Delay [S]; Bin1 Prot Del - ComAp InteliDrive Lite Reference Manual

Default: 0.0RPM
RPM IN
Basic settings:
Gear Teeth
BI3
Basic settings:
Gear Teeth3
RPM
Engine Gear box
H
INT
The RPM-BI3 measuring and corresponding protections are switched off when Basic setting:
GearTeethBI3 = 0. In this case BI3 operates as standard Binary input.
7.7.69 RPMdiff Sd
RPM-BI3 Sd underspeed protection limit or Sd difference limit between RPM-BI3 and RPM transferred
via GearBoxRatio. See description in GearBoxRatio setpoint. In alarm list appears text Sd RPMdiff.
Step: 1RPM
Range: 1 - 1000RPM
Default: 1000RPM
7.7.70 RPMdiff Wrn
RPM-BI3 Wrn underspeed protection limit or Wrn difference limit between RPM-BI3 and RPM
transferred via GearBoxRatio. See description in GearBoxRatio setpoint. In alarm list appears text
Wrn RPMdiff
Message: Wrn RPMdiff
Step: 1RPM
1 – 1000RPM
Range:
Default: 1000RPM
7.7.71 RPMdiff delay
Delay for RPMdiff protections above. See description in GearBoxRatio setpoint.
Step: 1s
Range: 0 - 600s
Default: 5s
7.7.72 BIN1 Prot Del...BIN7 Prot Del
Seven setpoints are dedicated for separately adjustment of the delay for each of binary inputs
according to the Class B protection standard.
InteliDrive Lite, SW version 1.9
ID-FLX-Lite-1.9r1 Reference Guide.pdf, ©ComAp – August 2015

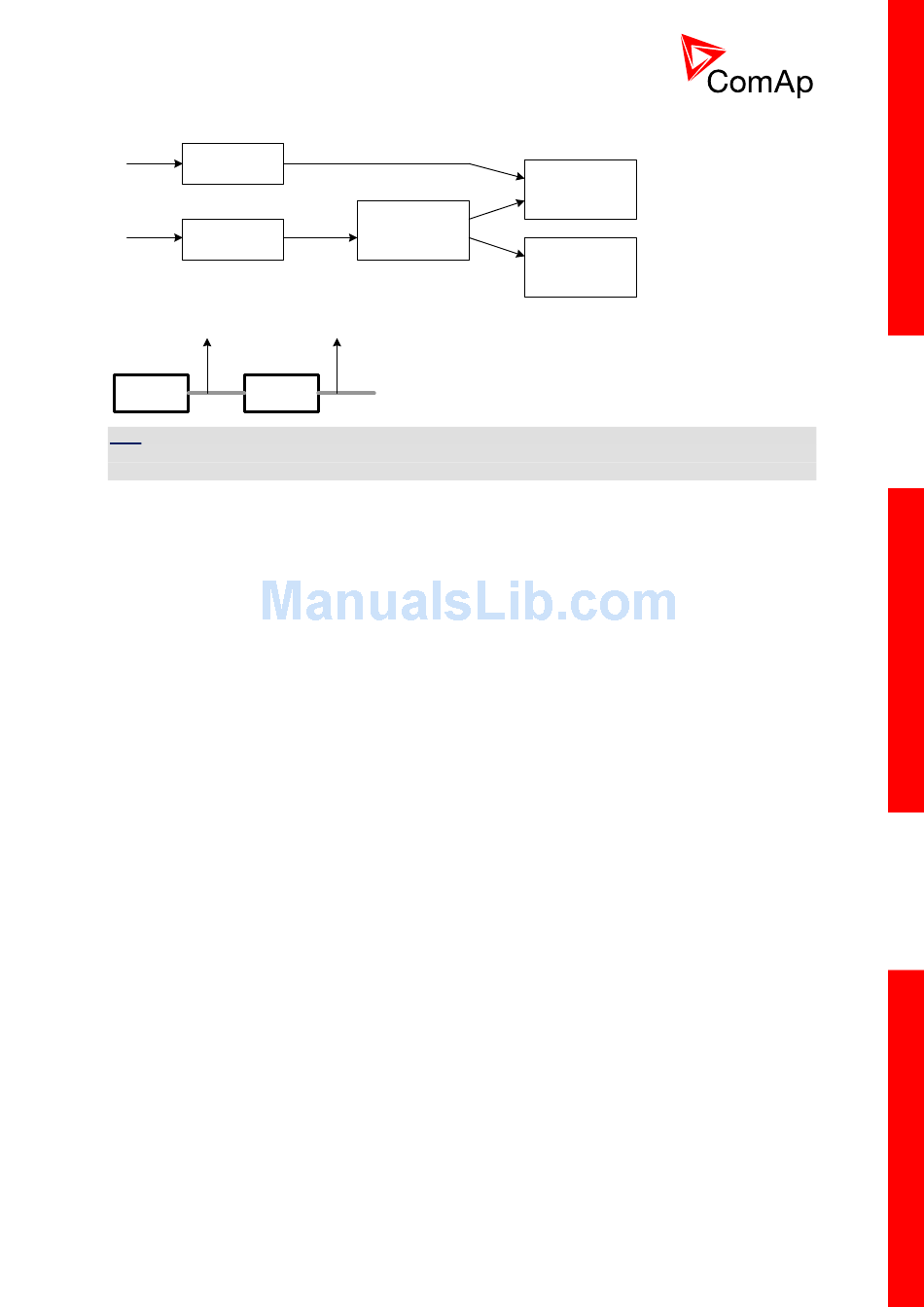

RPM
GearBoxRatio=0,1 to 5,0
Basic settings:
Gear BoxRatio
RPM-BI3
0
0,1 to 5,0
GearBoxRatio=0
RPM-BI3
[RPM]
[RPM]
[s]
GearBox check
Engine protect:
RPM diff Sd
RPM diff Wrn
RPM diff Del
RPM-BI3 Underspeed
Engine protect:
RPM diff Sd
RPM diff Wrn
RPM diff Del
[s]
105
