Junction Box IC-315

Use the junction box IC-315 to connect the distress alert/received call unit
IC-305 and other unit (max. four units) to the terminal unit.
Unfasten four screws to remove the box cover to connect cables.
For connection, use the optional 5 pair cable CO-SPEVV-SB-C 0.2x5P, JIS cable
(Japan Industrial Standards) TTYCS-4 or equivalent. When using the
CO-SPEVV-SB-C 0.2x5P cable, replace the cable clamp with the cable clamp
16-018-6008-1, supplied with IC-315.
Terminal
board
To terminal unit
Input/output sentences
The following sentences can be input/output with the navigator connected.
GGA, GLL, VTG, WPL, RMA, RMB,
RMC, MTW, DBT, BWC, BWR, VDR,
ZDA
Cover
Cable clamp

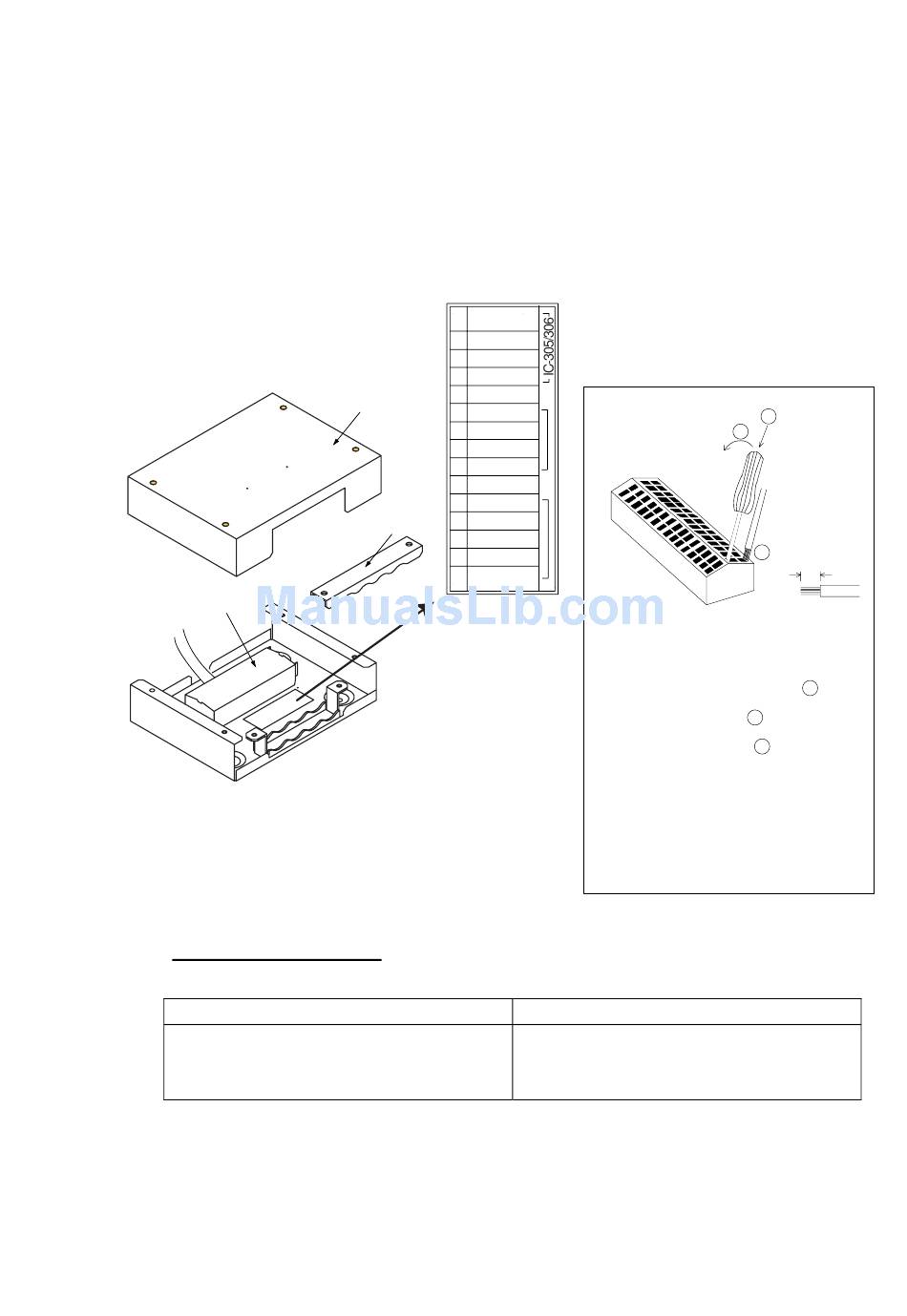

Junction Box IC-315
Input sentences
1
Vcc
2
GND
3
TD/RD-A
4 TD/RD-B
5 NC
6 TD-A(NAV)
7 TD-B(NAV)
8 RD-A(NAV)
9
RD-B(NAV)
10
GND
11
DMC OUT-H
12
DMC OUT-C
13 DMC IN-H
14 DMC IN-C
15 DMC CTR
Sticker for
connection of
other equipment
Procedure
1. Insert driver from direction 1 .
2. Tilt slightly toward 2 .
3. Insert cable core to 3 .
4. Pull out the driver.
Note 1: Do not insert the cable deeply
to prevent pinching the cable sheath.
Note 2: Pull the cable slightly to confirm
the tightening
Output sentences
GGA, ZDA, GLL, VTG, RMC, GSV
15
2. WIRING
1
2
3
Core 7 mm
