2.2
Distress Alert/Received Call Unit IC-305
Use the installation material CP16-02201 to connect the distress alert IC-305.
The optional CO-SPEVV-SB-C 0.2x5P cable or JIS cable (Japan Industrial
Standards) TTYCS-4 or equivalent are available to connect with the junction box
IC-305. Select the cable clamp attached depending on the diameter of cable,
and fix the armor of cable with the clamp.
For CO-SPEVV-
SB-C 0.2x5P
For TTYCS-4 (JIS)
or equivalent
Conductor
(Twisted pair)
2
S =1.25 mm
=1.35 mm
(Sectional view)
TTYCS-4 cable, sectional view
16P0213
1 2 3
4 5
Distress alert
IC-305

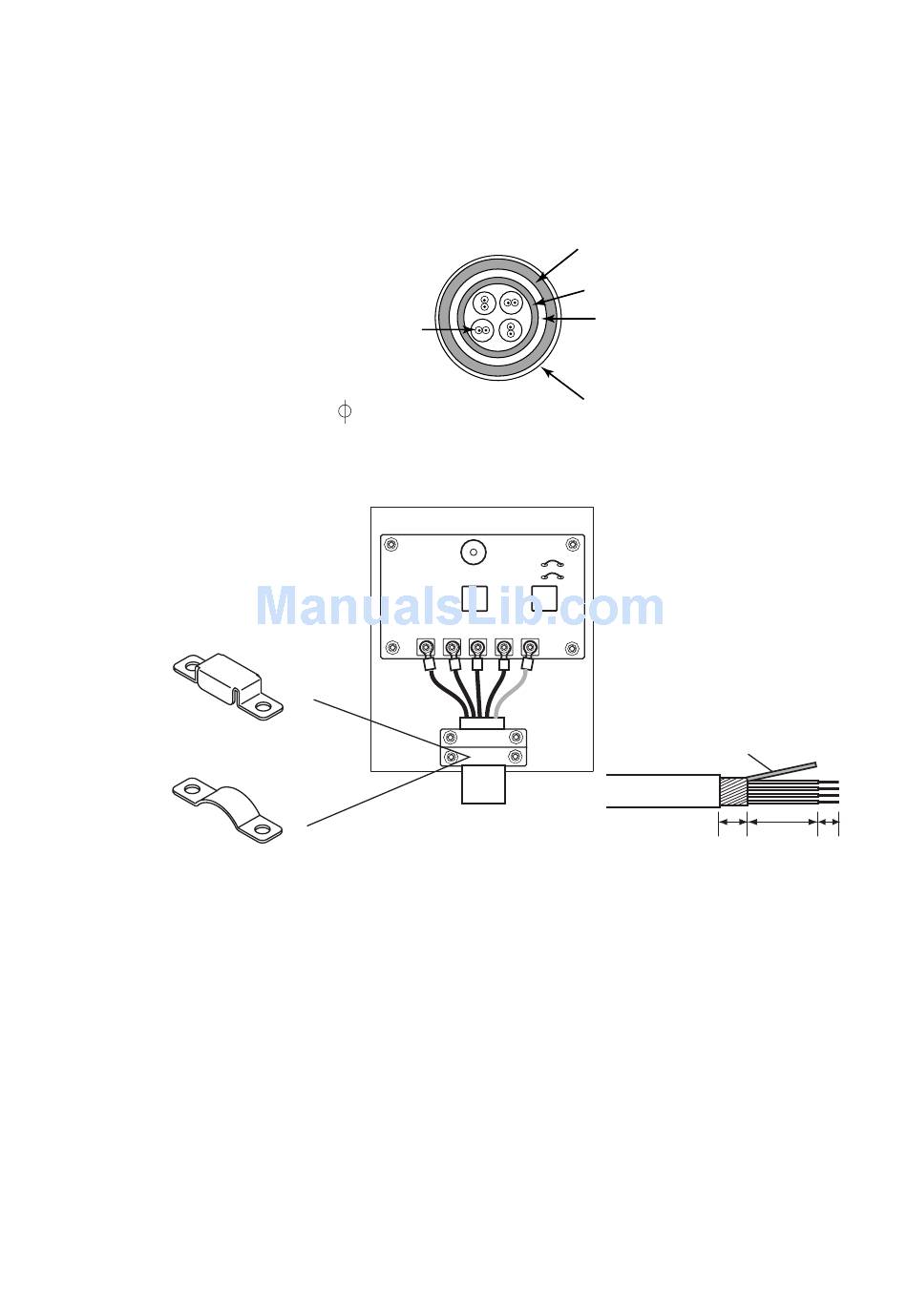

Wiring of distress alert IC-305
13
Armor
Shield
Vinyl sheath
Painting
Twist the shield.
CO-SPEVV-SB-C 0.2X5P
or TTYCS-4
Cut unused cables.
2. WIRING
15 mm 40 mm 10 mm
