2. WIRING
2.3
Alarm Unit IC-306

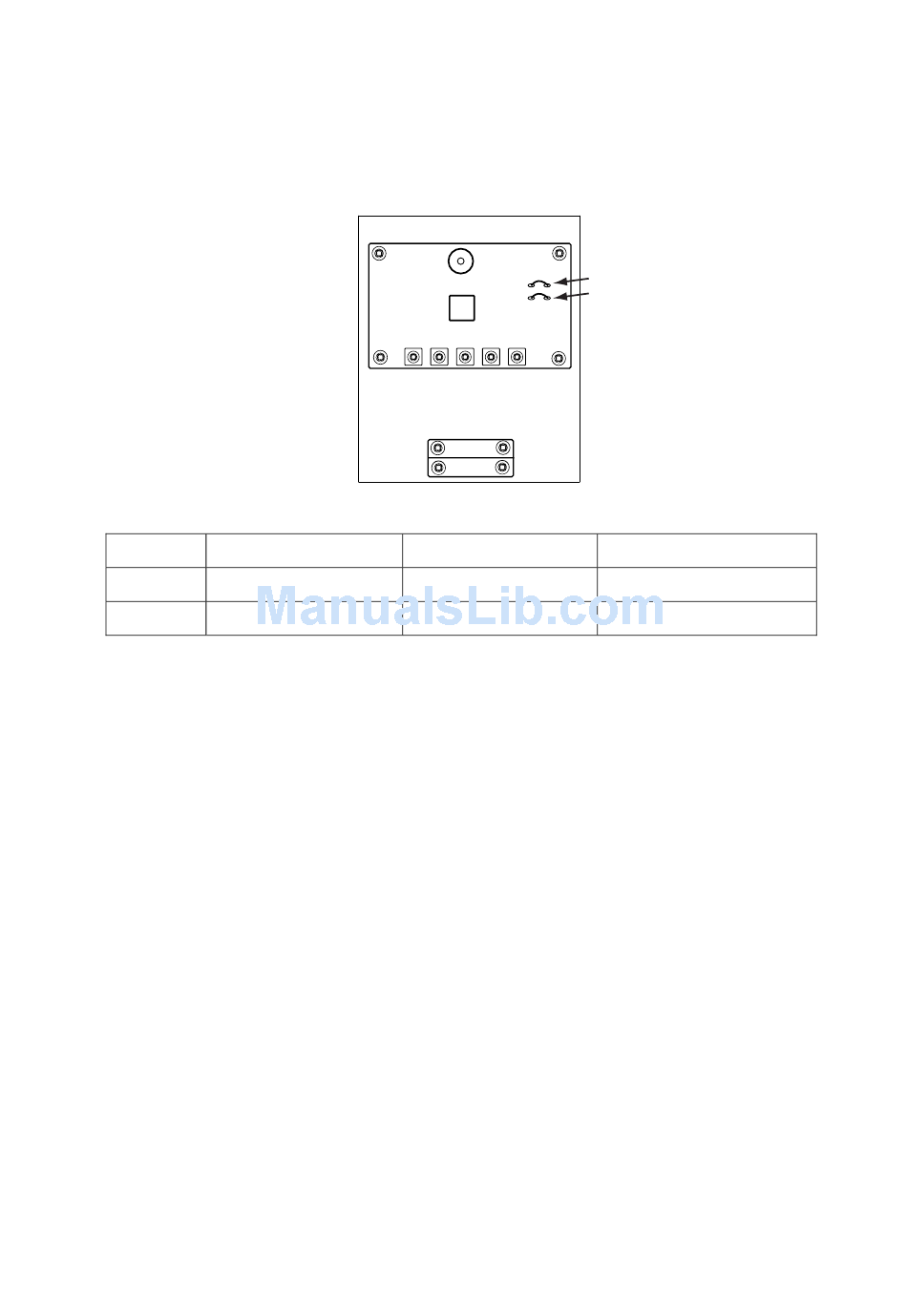

Maximum three alarm units can be connected to the junction box IC-315 in
parallel. To distinguish the incoming indictors, set jumper wires for the second
alarm unit as below. For connection, refer to the "2.2 Distress Alert/Received Call
Unit IC-305."
No. 1 (default setting)
JP1
JP2
16P0213
Alarm unit IC-306
Open
Short
14
JP2
JP1
No. 2
Open
Open
No. 3
Short
Open
