Summary of Contents for eTIGER ESB-WS2A

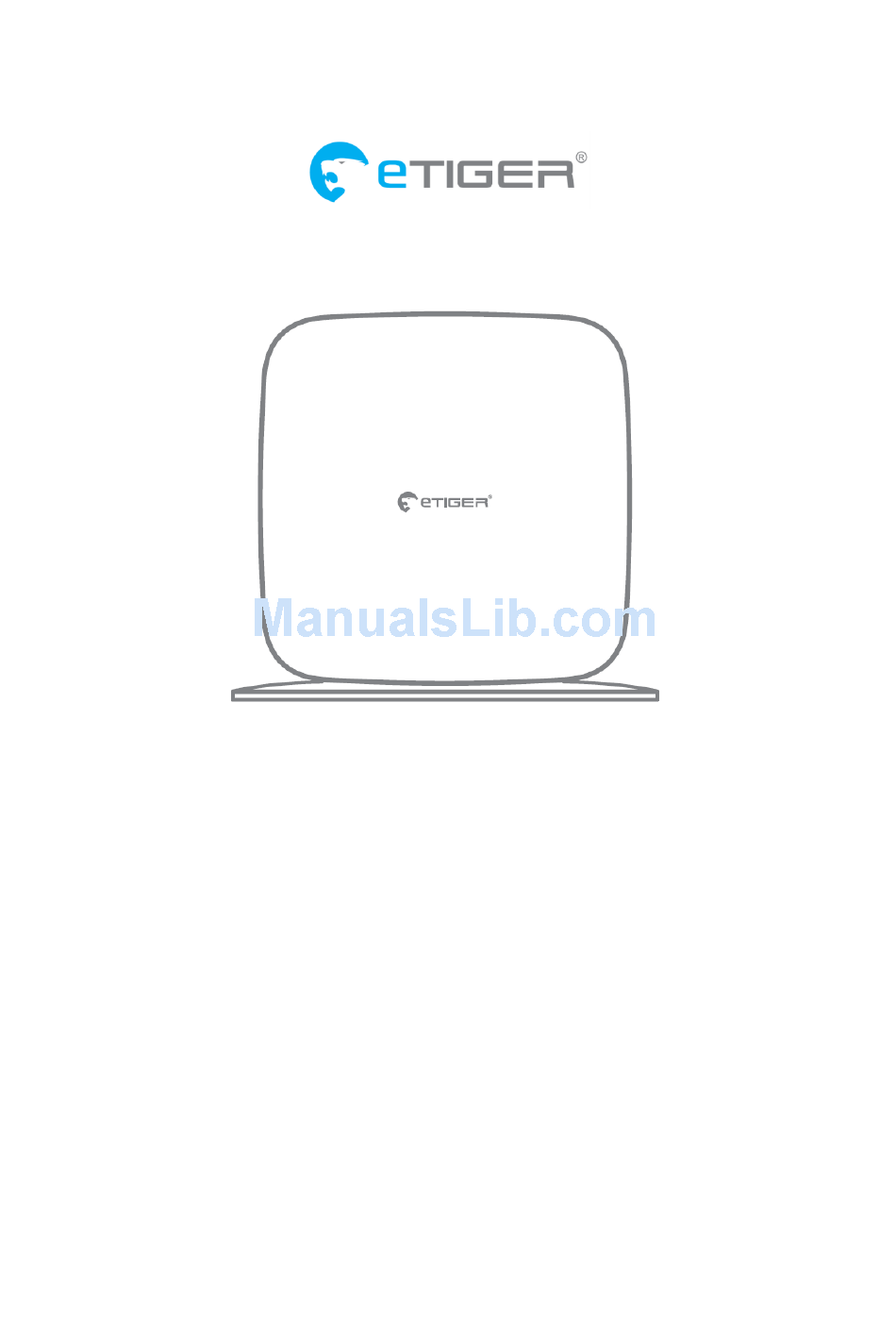

- Page 1 Secual Box V GSM/WIFI ALARM SYSTEM ESB-WS2A www.etiger.com...
-
Page 2: Table Of Contents
Box contents............................3 Design ..............................3 Install APP on your Smart phone ......................4 Step1: Download and Install APP ..................... 4 Step2: Create an account ........................4 Step3: Login ............................4 Connect Secual box to your APP account .................... 5 Step 1: Connect to control panel’s AP ..................... -
Page 3: Box Contents
Box contents Control panel x1 ES-D2A (Pet-immune motion sensor) x1 ES-D3D(Door/Window contact) x1 ES-RC1N (Remote controls) x2 AC Adapter x1 crews and anchors Documentation Design Top: Status Indicator Blue fixed: system armed Blinking blue: Home mode Blinking slowly white: connected to GSM signal Blinking rapidly white: not connected to GSM signal Bottom: Power / Network Indicator Green fixed only: Not connected to Wi-Fi router... -
Page 4: Install App On Your Smart Phone
Install APP on your Smart phone Step1: Download and Install APP 1.1 Download APP “Secual Box V ” on your smart phone. The app is available on the App Store and Google Play. 1.2 Run and install the APP on your smart phone. Step2: Create an account 2.1 Connect your phone to home’s Wi-Fi router. -
Page 5: Connect Secual Box To Your App Account
Connect Secual box to your APP account Step 1: Connect to control panel’s AP 1.1 Before you setup the Wi-Fi connection of the alarm system please make sure you are logged in the APP. 1.2 Go to your Smartphone Wi-Fi settings without closing the APP. 1.3 Connect the Smartphone to the alarm systems own Wi-Fi network(SSID: ESWIFI. -
Page 6: Step 3: Connect Control Panel To The Server
“Product ID”: If your smart phone is connected to the Wi-Fi network of the alarm system the APP will detect the Product ID of the alarm, if this is not the case please “Get device press ID” to request the Product ID. 2.4 “SSID”: After APP detect the Product ID, select the Wi-Fi connection you wish to connect the alarm system to from the list of available Wi-Fi networks. -
Page 7: Use Secual Box With Sim Card
Use Secual Box with SIM card You will need a SIM card if you wish to interact with your Secual Box by SMS and phone calls. 1. Insert the SIM card in the control panel. 2. Plug the AC adapter to the DC Jack. 3. -
Page 8: Connect Wireless Accessories
Connect wireless accessories 1. Press once on the Connection button “ ” on the side of the control panel, you will hear 1 beep and find the blue LED light on means the control panel enter connection mode. 2. Trigger the accessory, you will hear one beep: the accessory is registered. If the control panel beeps twice, the detector was already connected. -
Page 9: Daily Use
Daily use Arm the system When your system is armed, all detectors are active. By app Connect to your alarm and click on “Arm”. By SMS Send 1 by SMS to the phone number of the SIM card in the control panel. Only saved SMS numbers can disarm the system by SMS. -
Page 10: Disarm The System
Disarm the system When your system is disarmed, all detectors are inactive except those assigned to the 24H zone. By app Connect to your alarm and click on “Disarm”. By SMS Send 0 by SMS to the phone number of the SIM card in the control panel. Only saved SMS numbers can disarm the system by SMS. -
Page 11: Control By Phone Call
Control by phone call This function applies only if you are using the Secual Box with a SIM card. This function enables you to control your alarm system by phone call. This can especially be helpful if you are located in an area without Wi-Fi or 3G/4G coverage. How it works 1. -
Page 12: Warning
Warning ATTENTION RISK OFELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 13: Normes
European Technical Adaptation Committee (TAC). Manufactured in China. Images, illustrations and text are non-contractual. eTIGER and the eTIGER logo are registered trademarks and the property of eTIGER. Copyright . 2016 eTIGER. All rights reserved. Full manual For more settings, please refer to the user manual of the control panel, available for download on etiger.com...
